ABB EC2280FV6K Enclosure - Double Door Kit, CE & RAL 7035
Part Number: EC2280FV6K
Quick Summary
ABB EC2280FV6K is an enclosure system for control and automation boards, designed for double‑door installations in industrial cabinets. This solution addresses the common challenge of aligning and sealing large control enclosures in tight plant layouts. The CE conformity, RoHS and REACH declarations provide regulatory confidence, while ETIM classifications support precise cataloging in procurement systems. By leveraging the IS2 Enclosures Technical Catalogue 2024 references and the included kit approach, engineers can streamline installation and ensure consistent finish with RAL 7035—reducing rework and inventory costs while improving service life.
Product Information
Extended Description

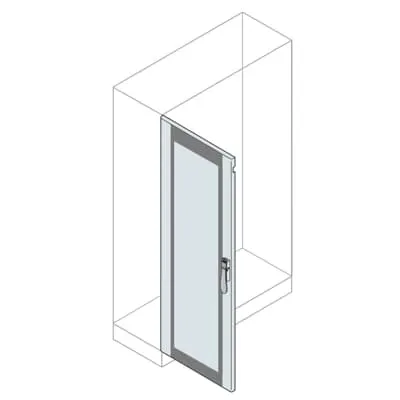

EC2280FV6K ABB: Glazed door for double door version 2200x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with special profile for making double doors
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
19.520 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
19.920 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The kit-based mounting type (Kit) simplifies on-site assembly, reducing installation time and field errors while enabling consistent double-door configurations across multiple depth options. This translates to lower labor costs and faster panel commissioning in automation projects. Feature → Business Impact → Application: The door is a double configuration with a glazed door option for visual access to internal components, enabling quicker inspections and maintenance without compromising enclosure integrity in process environments. Feature → Business Impact → Application: Orange Peel surface finish with RAL 7035 ensures a durable, easy-to-clean exterior that matches plant aesthetics and corrosion resistance requirements, supporting long-term reliability in harsh industrial environments. Feature → Business Impact → Application: Material is pickled steel sheet, providing structural stiffness and compatibility with standard enclosure accessories, allowing seamless integration with ABB and third-party control panels. Feature → Business Impact → Application: The enclosure supports reference depths of 400–1000 mm and widths of 800–1200 mm, offering configurable footprint to fit existing control layouts while minimizing cabinet spares. Feature → Business Impact → Application: Certifications and declarations (CE, RoHS, REACH) reduce compliance risk and procurement friction, enabling faster approvals for panel builds in regulated facilities. Feature → Business Impact → Application: The IS2 Enclosures Catalogue 2024 compatibility and ETIM classifications (EC000747) support accurate product selection in ERP and e-commerce workflows, improving lead times and accuracy for procurement teams.
Get a Quick Quote for a ABB EC2280FV6K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2280FV6K?
Enquire Now
FAQs
Installation begins with selecting the correct reference depth and width (400–1000 mm depth; 800–1200 mm width) to match your cabinet footprint. Mount the kit components to the enclosure frame, align the double doors with the special profile, and secure using standard mounting hardware. Confirm surface finish and door operation, then perform a commissioning check to ensure weatherproof sealing and proper clearance for cable entry.
Key specs include a double-door configuration with a glazed door option, pickled steel sheet material, Orange Peel surface finish in RAL 7035, product net width 594 mm, height 2196 mm, and net depth 46 mm. Reference height is 2200 mm with widths of 800, 1000, or 1200 mm, and reference depths of 400–600–800–1000 mm. RoHS and REACH compliance are documented.
Yes. The enclosure carries RoHS information with a RoHS date of 20250108 and a REACH declaration dated 20250108. REACH information confirms no substances above 0.1 mass percent, supporting regulatory compliance for European installations and global supply chains.
The enclosure supports a reference height of 2200 mm and reference widths of 800, 1000, or 1200 mm. Product net dimensions are 594 mm wide, 2196 mm high, and 46 mm deep. Reference depths available include 400, 500, 600, 800, and 1000 mm, enabling flexible fit in diverse control room layouts.
Official documentation is available through the IS2 Enclosures Technical Catalogue 2024 and the installation manual code 1STM604121R0006. Data sheets and manuals provide detailed assembly steps, mounting procedures, and compliance statements to support safe, compliant deployments in automation projects.
