ABB EC2280FV8K Control and Automation Board - CE
Part Number: EC2280FV8K
Quick Summary
ABB EC2280FV8K is a control and automation board for industrial control panels. Engineers often struggle with space constraints, integration complexity, and long lead times when upgrading large cabinets. This device carries CE declarations, RoHS and REACH compliance, helping you meet regulatory requirements with confidence. Designed for IS2 enclosures and double-door configurations, it simplifies mounting in automation cabinets, reducing risk and downtime while enabling scalable, modular upgrades. With a kit-based mounting approach and a transparent bill of materials, procurement and installation become predictable, repeatable, and cost-effective across production lines. The solution integrates with standard accessory components and IS2 Enclosures Catalogue 2024 references, ensuring compatibility with existing ABB and third-party hardware.
Product Information
Extended Description

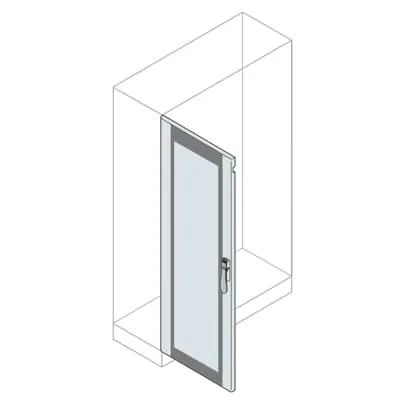

EC2280FV8K ABB: Glazed door for double door version 2200x800mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with special profile for making double doors
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
25.910 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
26.440 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Featuring a kit-style double-door profile, this enclosure kit enables rapid configuration for double-door cabinets. This translates to faster installation, reduced field fabrication, and easier future reconfiguration. It is particularly well-suited for 2200x800 mm door assemblies in automated control rooms and line cabinets. Constructed from pickled steel sheet with Orange Peel surface finish in RAL 7035, it combines durability with a professional aesthetic. The transparent door surface option supports quick visual checks while maintaining enclosure integrity. This combination reduces maintenance costs and extends service life in harsh industrial environments. Product net width 794 mm, height 2196 mm, and depth 46 mm define a compact, space-conscious footprint. Reference dimensions offer flexible mounting with common widths of 1000 or 1200 mm and a reference height of 2200 mm. The 1-piece packaging and a gross weight of about 26.44 kg simplify logistics and on-site handling. RoHS information with a 20250108 date, plus REACH declarations and ETIM classifications, help ensure regulatory alignment across regions. The enclosure is documented under IS2 Enclosures Technical Catalogue 2024 and carries CE conformity, reinforcing reliability for regulated industries. Installation instructions are maintained in 1STM604121R0006, and the provided data sheet keeps field teams aligned with best practices. The combination of standard mounting kit and clear documentation minimizes risk during installation and accelerates time to first operation.
Get a Quick Quote for a ABB EC2280FV8K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2280FV8K?
Enquire Now
FAQs
The EC2280FV8K is supplied as a kit designed for IS2 enclosure systems with a mounting kit option. Use the provided mounting hardware and follow the 1STM604121R0006 manual to align the double-door profile, ensuring the 794 mm width and 2196 mm height fit within the reference dimensions. The kit supports standard depth options and simplifies future reconfiguration for modular automation cabinets.
Key dimensions include 794 mm net width, 2196 mm net height, and 46 mm depth, with reference widths of 1000 or 1200 mm and a 2200 mm reference height. Made from pickled steel sheet with an orange-peel finish (RAL 7035), the enclosure offers corrosion resistance, durable surface quality, and a professional appearance suitable for harsh industrial environments.
Yes. The kit is specifically engineered for double-door configurations (Door Type: Double) and supports 2200x800 mm door assemblies, making it ideal for automotive and manufacturing automation cabinets where quick access and modular expansion are needed without compromising enclosure integrity.
The EC2280FV8K carries a CE Declaration of Conformity and RoHS information with a RoHS date of 20250108, plus REACH declarations. This means your installation aligns with EU regulatory requirements, reducing risk of non-compliance during audits and ensuring material conformance for regulated industrial environments.
Maintenance is simplified by the durable pickled steel construction and clear documentation, including IS2 Enclosures Catalogue references and installation manuals. The kit reduces on-site fabrication, speeds up deployment, and enables scalable upgrades, delivering lower downtime, faster time-to-value, and consistent performance across multiple lines.
