ABB EC2280K Enclosure - Single Blind Door, CE Certified
Part Number: EC2280K
Quick Summary
ABB EC2280K enclosure controls and protects electrical cabinets for industrial automation applications. Too many enclosures suffer from misalignment, warping, or inadequate environmental protection, causing downtime and costly repairs. CE conformity ensures safety and regulatory compliance, while ETIM and eClass classifications streamline cataloging and procurement, and RoHS/REACH declarations support sustainable sourcing. This solution offers a robust, durable build with a resistant orange-peel surface in RAL 7035, and a single blind door that simplifies access. The design integrates with IS2 Enclosures Catalogue 2024 for compatibility and benefits from modular reference depths, helping you optimize space and maintenance workflows across control panels and process lines.
Product Information
Extended Description

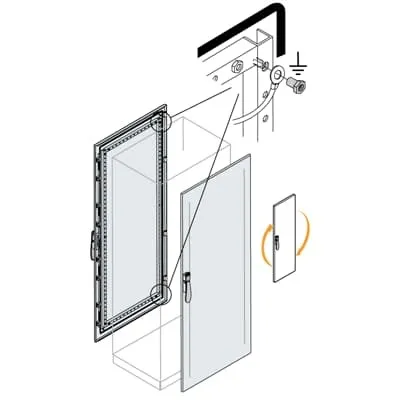

EC2280K ABB: Blind door 2200x800mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind front door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
30.480 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
31.110 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Blind front door kit with single door. Business Impact: Simplifies access to control components while maintaining enclosure integrity, reducing servicing time and potential misalignment. Application: Ideal for control panels in machine bays where quick door access is common. Feature: Kit mounting type with multiple reference depths (400–1000 mm). Business Impact: Flexible integration into varied plant layouts, enabling precise enclosure placement and future reconfiguration. Application: Manufacturing lines and process automation installations with evolving space constraints. Feature: Material and finish – pickled steel sheet with orange peel, RAL 7035. Business Impact: Enhanced corrosion resistance and low-maintenance aesthetics, lowering lifecycle costs. Application: Harsh industrial environments and outdoor or semi-exposed installations. Feature: Dimensions – 794 mm width, 2196 mm height, 46 mm depth; reference height/width 2200 mm x 800 mm. Business Impact: Predictable footprint supports efficient space planning and clear sightlines for operators. Application: Large control panels and electrical cabinets in industrial facilities. Feature: Compliance and classification – CE Declaration, RoHS/REACH, ETIM 8/9, and eClass. Business Impact: Streamlined purchasing, regulatory assurance, and component interoperability. Application: Procurement workflows and systems integration across OEMs and build outs. Feature: Weight and packaging – 30.480 kg net weight; packaging level 1 unit. Business Impact: Manageable lift and installation planning, reducing on-site safety risks. Application: Site commissioning and maintenance routines in factory settings.
Get a Quick Quote for a ABB EC2280K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2280K?
Enquire Now
FAQs
The EC2280K uses a kit mounting type with a blind front door, designed for flexible reference depths of 400–1000 mm and a net footprint of 794 mm W x 2196 mm H x 46 mm D. This supports straightforward integration into existing frame systems and enables modular space planning for evolving panel layouts.
Key specs include 794 mm width, 2196 mm height, 46 mm depth, and a 30.480 kg net weight. Constructed from pickled steel sheet with an orange peel surface (RAL 7035), the enclosure offers robust mechanical protection and corrosion resistance suitable for demanding industrial environments.
Yes. The orange peel finish in RAL 7035 and pickled steel provide durable surface protection against wear and environmental exposure. Its single blind door design allows easy access for maintenance while maintaining enclosure integrity, making it suitable for general purpose control panels in harsh factory settings.
The EC2280K carries CE conformity, RoHS information with a RoHS date of 20250108, and REACH declarations. It is also referenced in ETIM 8/9 as EC000747 and aligns with eClass 27182204, supporting accurate cataloging and regulatory compliance in procurement systems.
Durable steel construction, standard dimensions, and modular depth options simplify installation, reduce downtime, and lower maintenance costs. Procurement is streamlined through ETIM/eClass classifications, and environmental compliance minimizes risk. The IS2 Enclosures Catalogue 2024 compatibility further supports fast integration and predictable total cost of ownership in industrial facilities.
