ABB EC2280VC4K Control and Automation Board - CE IS2
Part Number: EC2280VC4K
Quick Summary
ABB EC2280VC4K is a control and automation board designed for industrial control panels and automation cabinets. Engineers often face tight spaces, complex cable routing, and door-access constraints that slow commissioning. This enclosure kit ships with CE Declaration of Conformity IS2, RoHS compliance with a 20250108 date, and REACH declarations, ensuring regulatory alignment. The system combines a robust pickled steel enclosure with a blind door kit and double-door capability, delivering space efficiency, modularity, and fast installation for high-demand manufacturing environments. In short, it elevates panel reliability while reducing total cost of ownership through standardized, repeatable configurations and clear documentation.
Product Information
Extended Description

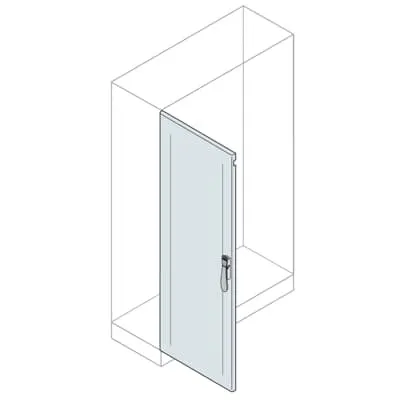

EC2280VC4K ABB: Blind door cable container 2200x400mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with special profile for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
394 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
15.450 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.760 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: The EC2280VC4K uses a kit-based mounting approach paired with a special blind door profile to enable flexible double-door configurations. This supports easier access to internal components, faster maintenance cycles, and reduced downtime in electrical cabinets across automated assembly lines. Feature → Business Impact → Application: The durable pickled steel sheet with orange peel finish (RAL 7035) provides long-term corrosion resistance and a professional, low-maintenance appearance, lowering repaint costs and improving field readability for technicians working across harsh factory floors. Feature → Business Impact → Application: With reference depths of 400–1000 mm and reference widths of 600–1200 mm, plus a net width of 394 mm and height of 2196–2200 mm, the enclosure is highly adaptable to standard panel footprints, simplifying integration with existing ABB enclosures and reducing customization time. Feature → Business Impact → Application: The double-door configuration with a dedicated mounting kit reduces door swing space in tight installations, enabling safer, faster cable management and compliant access for routine inspections and SOP-driven tasks. Feature → Business Impact → Application: Compliance and documentation including CE IS2, RoHS, REACH, ETIM classifications, and IS2 Enclosures Catalogue references mitigate regulatory risk and accelerate procurement workflows, supporting audit readiness and supplier confidence in industrial environments. Feature → Business Impact → Application: The included installation instructions (1STM604121R0006) and the IS2-enclosures data sheet support quick start-up, correct torque, and repeatable assembly, delivering predictable performance and improving first-pass installation success for OEMs and system integrators.
Get a Quick Quote for a ABB EC2280VC4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2280VC4K?
Enquire Now
FAQs
EC2280VC4K is a kit-based enclosure designed for double-door configurations. It supports reference depths of 400–1000 mm and reference widths of 600–1200 mm, with a product net width of 394 mm and net height around 2196–2200 mm. The mounting is kit-based, allowing flexible door arrangements and straightforward integration with ABB cabinet footprints.
The enclosure uses pickled steel sheet with an orange peel surface finish (RAL 7035) and opaque door surfaces. This combination provides robust mechanical protection, corrosion resistance, and a professional appearance suitable for demanding industrial environments while supporting easy maintenance and long service life.
Yes. The product includes a CE Declaration of Conformity IS2, RoHS information with a 20250108 date, and a REACH declaration with the corresponding date. It is designed to meet regulatory requirements for European manufacturing environments and is also categorized under WEEE as not in scope.
The blind door with a special profile is designed to enable easy stacking and creating double doors in tight spaces, improving access to internal components and simplifying cable management. Mounting is kit-based, which speeds up installation, reduces alignment issues, and supports scalable configurations across different panel widths.
Installation guidance is provided via the 1STM604121R0006 manual, and datasheets are available in the IS2 Enclosures Technical Catalogue 2024. Additional references include ETIM 8/9 classifications (EC000747) and the standard CE/IS2 documentation, ensuring consistent assembly, compliance, and maintenance practices.
