ABB EC2281K Control and Automation Board - CE
Part Number: EC2281K
Quick Summary
ABB EC2281K is a control and automation board for industrial enclosures. Engineers face installation delays and misalignment when integrating large IS2 cabinets, but this pre-assembled door kit streamlines mounting and reduces field labor. The solution carries CE conformity with RoHS and REACH declarations, and aligns with ETIM classifications for standardized procurement data. By pairing a rugged pickled steel shell with an orange peel finish in RAL 7035, the design delivers robust protection and visual consistency. For manufacturers and integrators, this translates to faster project delivery, predictable maintenance, and trusted long-term support in demanding industrial environments.
Product Information
Extended Description

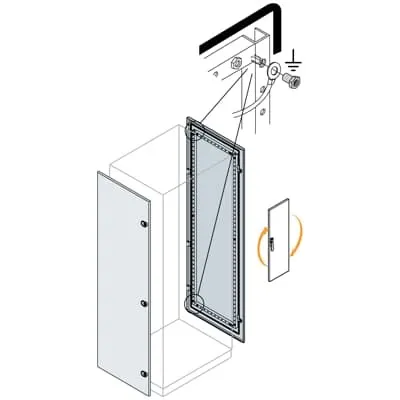

EC2281K ABB: Blind side door 2200x800mm (HxD)
Accessory Type
3. Other doors
Mounting Type
Kit | Pre assembled
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
1. Blind side door
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
22.020 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
22.470 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled door kit reduces on-site assembly time → Business Impact: lowers labor costs and accelerates project timelines → Application: ideal for high-mix, low-volume automation projects where tight schedules matter. Feature: Single blind-side door with a durable orange peel finish → Business Impact: improved environmental protection and wipe-clean maintenance reduces downtime → Application: suitable for factory floors and control panels with frequent ingress concerns. Feature: Pickled steel sheet material with RAL 7035 finish → Business Impact: corrosion resistance and consistent aesthetics lower repainting frequency and warranty risk → Application: labor- and cost-efficient enclosure solutions across industries. Feature: Defined dimensions and reference widths (400–1200 mm) → Business Impact: flexible fit and scalable cabinet designs minimize custom fabrication → Application: supports modular automation architectures and standardized panel planning. Feature: RoHS, REACH declarations and CE conformity → Business Impact: regulatory compliance reduces audit findings and speeds time-to-market → Application: mission-critical control cabinets in regulated environments. Feature: Documentation and installation support (IS2 catalogue, 1STM604121R0006) → Business Impact: smoother commissioning and fewer troubleshooting calls → Application: streamlined handover to maintenance teams and operators.
Get a Quick Quote for a ABB EC2281K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2281K?
Enquire Now
FAQs
The EC2281K is designed for IS2 enclosures and supports reference widths of 400, 600, 800, 1000, and 1200 mm. External dimensions are W 400 mm, H 2200 mm, D 800 mm, with a net width of 794 mm, net height of 2196 mm and net depth of 46 mm. This aids system integrators by reducing the need for custom fabrication while maintaining a precise fit.
The door uses pickled steel sheet with an orange peel surface finished in RAL 7035. This combination provides robust environmental protection, corrosion resistance, and a consistent appearance across a production floor, helping to lower maintenance costs and extend service life in demanding environments.
Yes. The EC2281K features a single door design with a blind-side door option, making it ideal for compact installations where space is at a premium. Its pre-assembled mounting kit reduces assembly time and ensures reliable door alignment in automated control panels.
The product carries CE conformity with a CE Declaration of Conformity, RoHS information (RoHS Date 20250108), and REACH information (REACH Date 20250108). It is aligned with ETIM classifications EC000747 for door/operating panels, ensuring standardized data for procurement and compliance audits.
Installation is supported by the IS2 Enclosures Technical Catalogue 2024 and the specific manual 1STM604121R0006. Additional resources include the Data Sheet/Technical Information and ETIM references, enabling faster commissioning, easier maintenance, and clearer handover to operators and service teams.
