ABB EC2284 Door/operating panel - EC000747 (ETIM)
Part Number: EC2284
Quick Summary
The ABB EC2284 Door/operating panel enables secure access for server enclosures and control cabinets. Design engineers often grapple with balancing fast, reliable opening against long-term protection in tight installations. The product carries CE Declaration of Conformity IS2, RoHS, and REACH declarations, ensuring regulatory alignment. Built to IS2 enclosure standards, it fits standard 800 mm width and 2200 mm height with a 46 mm depth and a 22.18 kg weight, and it ships as a ready-to-mount kit. This combination minimizes installation risk while delivering predictable maintenance cycles and compatibility with IS2 catalogues and industrial cabinet doors, supporting efficient data-center and factory automation workflows.
Product Information
Extended Description

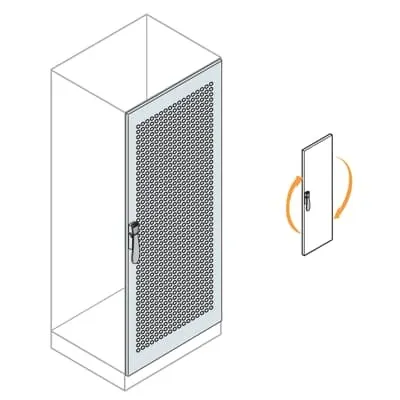

EC2284 ABB: Aerated door for server enclosure 180°op.2200x800
Accessory Type
3. Other doors
Configuration Type
3. Door
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Options Provided
5. Aerated door with 180° door opening
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
22.180 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
23.180 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Aerated door with 180° opening enables full rear access while maintaining enclosure integrity. Business Impact: Reduces service time and improves cooling efficiency by allowing unobstructed airflow. Application: Ideal for server racks and control cabinets in data centers and manufacturing facilities. Feature: Pickled steel sheet with orange peel, RAL 7035 finish offers durable protection against corrosion and daily wear. Business Impact: Lower maintenance costs and extended service life in harsh environments. Application: Factory floors, electrical rooms, and outdoor installations where appearance and longevity matter. Feature: Kit mounting type and ETIM 8/9 compliant design simplify installation. Business Impact: Shorter commissioning times and reduced field errors, improving project timelines. Application: New builds and cabinet upgrades where standard IS2 dimensions are required. Feature: Reference width and height with modular depths from 400–1000 mm support flexible configurations. Business Impact: License-free adaptability reduces stock variety and accelerates deployment. Application: Modular enclosures across data centers and automation plants. Feature: RoHS and REACH declarations ensure regulatory compliance and sustainability. Business Impact: Minimizes risk of non-compliance charges and supports ESG initiatives. Application: Global deployments with strict supplier requirements. This product’s IS2 catalogue compatibility and robust finish provide confidence during procurement and installation.
Get a Quick Quote for a ABB EC2284
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EC2284?
Enquire Now
FAQs
EC2284 uses a Kit mounting type designed for IS2 enclosures. It matches standard reference dimensions of 800 mm width and 2200 mm height, with a 46 mm depth and a net weight around 22.18 kg. The installation kit supports straightforward mounting, aligning with the ETIM EC000747 specification for door/operating panels.
The door panel is 794 mm net width, 2196 mm net height, and 46 mm net depth, with a net weight of 22.180 kg (packaged at 23.180 kg). It is configured for reference depths of 400–1000 mm, enabling flexible fit under IS2 enclosure guidelines.
Yes. The EC2284 features a 180° aerated opening for full access, with reference depth options of 400, 500, 600, 800, and 1000 mm. This makes it compatible with a wide range of server racks and control cabinets while maintaining a compact, robust profile.
The EC2284 includes CE Declaration of Conformity IS2, RoHS information, and REACH declarations. It also notes WEEE categorization as not in scope, with environmental references to IS2 Enclosures Technical Catalogue 2024, supporting regulatory and sustainability requirements in global deployments.
The door’s durable pickled steel construction with RAL 7035 orange peel finish reduces maintenance cycles and corrosion risk, while the 180° opening speeds access and service efficiency. Combined with easy mounting, modular depth options, and IS2 compatibility, this drives lower installation costs and faster time-to-value for data centers and automation facilities.
