ABB ED1810SK Control and Automation Board - CE IS2
Part Number: ED1810SK
Quick Summary
ABB ED1810SK control and automation board enables compact, reliable control inside industrial automation cabinets. Engineers often contend with cramped layouts, wiring complexity, and retrofit downtime that disrupts production. This kit aligns with CE Declaration of Conformity IS2, RoHS, and REACH compliance to meet modern regulatory demands. The combination of a preconfigured mounting kit and standardized dimensions supports fast installation and scalable cabinet layouts, reducing installation time and changeover risks. For integrators and maintenance teams, it means predictable fits, easier service access, and a clear path to ISO-like enclosure consistency across facilities.
Product Information
Extended Description

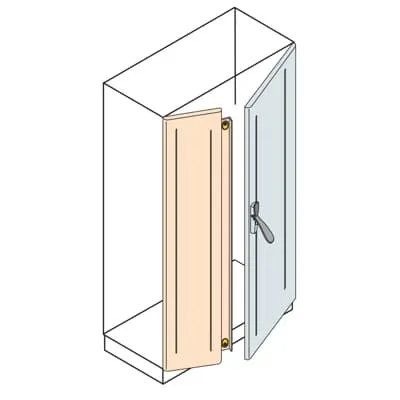

ED1810SK ABB: Blind door with overlaplapping closure 1800x500mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with overlap for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
550 mm
Product Net Height
1800 mm
Product Net Depth / Length
35 mm
Product Net Weight
15.690 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
16.010 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Double-door overlap kit configuration; Business impact: Enables modular, scalable enclosure layouts and easier two-door access, reducing wiring misalignment during installation; Application: Works with ABB IS2 enclosure systems to standardize cabinet footprints. Feature: Pickled steel sheet with Orange Peel finish (RAL 7035); Business impact: Provides durable, corrosion-resistant surfaces with consistent aesthetics, lowering repaint costs in harsh factory environments; Application: Suitable for indoor industrial control panels exposed to dust and moisture. Feature: Material and surface finishing support long service life; Business impact: Improves abrasion resistance and wipe-clean maintenance, reducing downtime; Application: Control cabinets in packaging and manufacturing lines. Feature: Clear dimensional data and weight; Business impact: Facilitates fast logistics planning and accurate site fitting, improving procurement efficiency; Application: Standardized enclosure kits across projects. Feature: Compliance and documentation; Business impact: Streamlines regulatory auditing and data sharing with RoHS, REACH, WEEE, ETIM, and eClass references; Application: Regulatory-compliant installations and data-driven asset management. Installs with provided manuals (1STM604121R0006); Business impact: Shortens commissioning time and minimizes field errors; Application: New builds and retrofits in ABB IS2 lineups.
Get a Quick Quote for a ABB ED1810SK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ED1810SK?
Enquire Now
FAQs
The ED1810SK uses a mounting kit with a blind-door overlap designed for double-door configurations in ABB IS2 enclosures. It suits reference depths from 400 to 1000 mm and ships as a single unit per package, simplifying modular cabinet builds and retrofit projects.
Product Net Width is 550 mm, Net Height 1800 mm, Net Depth 35 mm, with a package weight of 16.010 kg per Level 1 unit. The module supports standard reference dimensions for consistent integration in ABB IS2 cabinets.
Yes, the enclosure uses pickled steel with an Orange Peel surface in RAL 7035, offering durable protection suitable for indoor industrial control panels. It complies with RoHS and REACH, and its CE declaration supports regulatory project requirements.
The product carries a CE Declaration of Conformity IS2, RoHS and REACH compliance, and is referenced in ETIM EC000747 for Door/Operating Panel and eClass 27182204. WEEE categorization places it outside certain scopes, aiding asset management and compliance reporting.
With a kit-based mounting approach, double-door access, and clear manuals (1STM604121R0006), installation is faster and less error-prone. Standardized dimensions and compliance data reduce lifecycle risk, lower downtime during replacements, and improve procurement efficiency for multi-site automation deployments.
