ABB ED1812SK Enclosure - Double Door Kit CE, EC000747
Part Number: ED1812SK
Quick Summary
ABB ED1812SK Enclosure is a modular control and automation housing for compact manufacturing panels, designed to protect electronics, simplify wiring, and accelerate panel assembly. Designed to streamline installation and reduce misalignment when creating double-door enclosures in busy plants, it supports faster commissioning and easier serviceability. It is CE marked with RoHS and REACH compliance, and ETIM EC000747 classification to simplify procurement and cross-system compatibility across global maintenance teams. Coupled with the orange peel finish in RAL 7035 and a pickled steel body, this solution delivers durable, compliant panels at scale, reducing field retrofit needs and enabling predictable performance across multiple factories.
Product Information
Extended Description

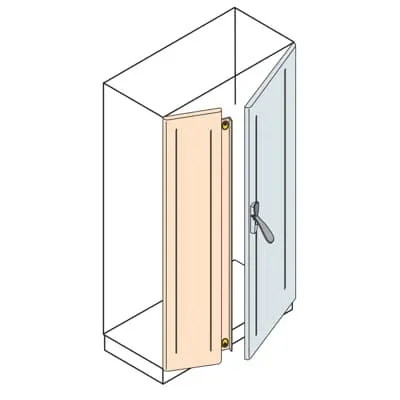

ED1812SK ABB: Blind door with overlaplapping closure 1800x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with overlap for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
650 mm
Product Net Height
1800 mm
Product Net Depth / Length
35 mm
Product Net Weight
18.830 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
19.220 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: The ED1812SK uses a kit-based door arrangement with a blind door and overlap to form a robust double-door enclosure. Business Impact: This reduces field assembly time and misalignment, cutting commissioning risk and post-install service calls. Application: Ideal for compact control panels in automated lines where space and reliability matter. Paragraph 2: Feature: Flexible dimensions with a product net width of 650 mm and reference depths of 400, 500, 600, or 800 mm. Business Impact: Enables precise fitment to backplanes and wiring rails, reducing rework and spare parts. Application: Suitable for scalable automation projects across multiple line configurations. Paragraph 3: Feature: Surface finish Orange Peel in RAL 7035 and pickled steel material deliver durable, color-consistent enclosures. Business Impact: Improves corrosion resistance and reduces maintenance cycles. Application: Harsh environments and plant areas requiring standardized aesthetics. Paragraph 4: Feature: Regulatory alignment includes CE documentation, RoHS, REACH, and ETIM EC000747. Business Impact: Ensures compliance and simplifies procurement workflows across regions. Application: Suitable for global manufacturing networks with strict compliance requirements. Paragraph 5: Feature: Comprehensive documentation with IS2 catalogue reference, data sheet, and installation manual 1STM604121R0006. Business Impact: Accelerates installer onboarding and reduces design verification time. Application: New builds or replacements in industrial cabinets. Paragraph 6: Feature: Packaging and weight considerations include 1 piece per package and net weight 18.83 kg (19.22 kg gross). Business Impact: Streamlines shipping, handling, and budgeting for installation logistics. Application: Ideal for site-wide deployments and modular manufacturing setups.
Get a Quick Quote for a ABB ED1812SK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ED1812SK?
Enquire Now
FAQs
The ED1812SK uses a kit-based door system that enables a double-door enclosure without custom fabrication. It supports mounting as a kit, with a 650 mm net width and 1800 mm height, and depth options around 35 mm. Manuals (1STM604121R0006) and the IS2 catalogue should be consulted to ensure correct alignment, wiring access, and compatibility with backplanes and auxiliary hardware.
The enclosure is CE marked and RoHS/REACH compliant, with ETIM classification EC000747 to aid procurement. Material is pickled steel with an orange-peel finish in RAL 7035 for durability and consistency. These attributes support reliable operation in industrial environments and simplify cross-border sourcing and regulatory adherence.
Yes. The ED1812SK’s double-door kit, modular reference depths (400–800 mm), and 650 mm width suit automotive and broad industrial automation panels. The robust finish and compliant construction support use in harsh factory environments, while the kit approach helps scale configurations across multiple lines with consistent aesthetics and access.
Key certifications include CE conformity, RoHS and REACH compliance, and ETIM EC000747 classification. These ensure regulatory compliance for European supply, reduce risk in supplier audits, and streamline procurement by aligning with standardized product classifications and environmental requirements.
By enabling faster installation with a misalignment-free double-door kit, the ED1812SK lowers commissioning and field service calls. The durable RAL 7035 finish and pickled steel construction reduce upkeep, while comprehensive documentation accelerates installer onboarding. The result is shorter project timelines and lower total cost of ownership for control-panel enclosures.
