ABB ED2010SK Enclosure Double Door Kit - CE IS2
Part Number: ED2010SK
Quick Summary
ABB ED2010SK is an enclosure kit designed to house control and automation boards for industrial cabinets. It addresses procurement fragmentation, long lead times, and mismatched mounting footprints by delivering a standardized double-door solution. The product carries CE Declaration IS2, RoHS compliance, and REACH information, providing regulatory confidence across global sites while ETIM EC000747 supports straightforward cataloging. Its orange-peel surface in RAL 7035 and pickled steel construction deliver durable, scalable protection. This enclosure supports reference depths from 400 to 1000 mm and a total height of 2000 mm with a 550 mm width, delivering reliable performance, easier maintenance, and shorter installation cycles for modern automation projects.
Product Information
Extended Description

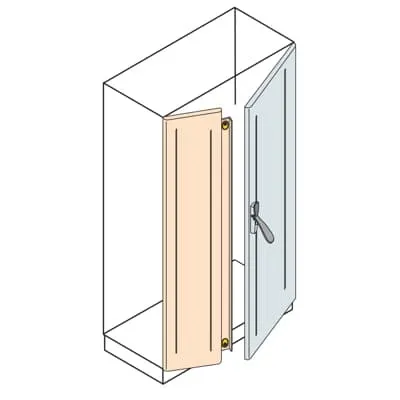

ED2010SK ABB: Blind door with overlaplapping closure 2000x500mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with overlap for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
550 mm
Product Net Height
2000 mm
Product Net Depth / Length
35 mm
Product Net Weight
17.440 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
17.790 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Double-door blind door with overlap closure improves sealing and reduces door misalignment during routine checks. Business Impact: Enhanced ingress protection and quicker gasket maintenance translate to lower service calls and faster panel commissioning. Application: Ideal for panel builders integrating control cabinets in process automation lines. Feature: Pickled steel sheet with orange-peel finish in RAL 7035 delivers durable, corrosion-resistant aesthetics. Business Impact: Reduced repainting costs, easier cleaning, and consistent appearance across facilities. Application: Enclosures in harsh factory environments and multi-site deployments. Feature: Kit-based mounting with reference depths from 400 to 1000 mm and a total height of 2000 mm. Business Impact: Flexible deployment across machine footprints, faster on-site integration, and scalable configurations. Application: OEMs and system integrators standardizing enclosures for varied line layouts. Feature: RoHS and REACH compliance plus CE declaration. Business Impact: Regulatory peace of mind and lower risk in cross-border projects. Application: Automotive, packaging, and robotics environments requiring formal compliance. Feature: Documentation and standards alignment (ETIM EC000747, IS2 catalogue reference). Business Impact: Streamlined procurement, accurate cataloging, and simplified maintenance. Application: IT and engineering teams aligning parts with internal data ecosystems. Overall: The ED2010SK is designed to reduce installation time, cut lifecycle costs, and support compliant, scalable automation infrastructure.
Get a Quick Quote for a ABB ED2010SK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ED2010SK?
Enquire Now
FAQs
Plan for a mounting kit approach with the configurable depths (400, 500, 600, 800, 1000 mm) and the full height of 2000 mm. Use the included mounting guidance (1STM604121R0006) and ensure sufficient service clearance for cables and door operation. The kit is designed for straightforward integration into standard control cabinet footprints and supports rapid, repeatable installations across multiple enclosures.
Yes. The enclosure carries RoHS information with a RoHS date of 20250108 and a REACH declaration. The REACH information states that it does not contain substances above 0.1 mass percentage, and there is a 20250108 REACH date to confirm ongoing compliance. This helps reduce regulatory risk in global deployments.
Industries such as automotive, packaging, robotics, and broad process automation benefit most. The ED2010SK supports standard control cabinet builds with a double-door, overlap-sealed design, and is compatible with IS2 enclosure systems. Its modular depth options and robust finish simplify multi-site rollouts and help maintain consistent performance across production lines.
The enclosure uses pickled steel sheet with an orange-peel finish, specified as RAL 7035 – Light Grey. The door is opaque, and the surface finish is optimized for durability and ease of maintenance in industrial environments. The combination provides a corrosion-resistant shell suitable for long-term installations in harsh factory settings.
Expect CE conformity with the IS2 declaration, RoHS and REACH compliance, and ETIM classification EC000747 for door/operating panel enclosures. The WEEE category indicates the product is not in scope for WEEE disposal. These standards support regulatory compliance, reliable cataloging, and alignment with industry data models.
