ABB ED2016SK Enclosure Kit - CE Conformity and RoHS
Part Number: ED2016SK
Quick Summary
ABB ED2016SK Enclosure Kit is a durable control and automation enclosure designed for panel builders and machine OEMs. It simplifies double-door panels and space-constrained installations with a modular kit and overlap blind doors. This enclosure aligns with CE conformity, RoHS, and REACH standards, aiding compliance and procurement. The kit-mounted design and pickled steel construction deliver robust protection in industrial environments, while the orange-peel surface finish in RAL 7035 provides consistent aesthetics. For integrators, the ED2016SK supports quick installation without compromising safety or accessibility, enabling faster commissioning and reduced field adjustments. Ideal for IS2 enclosure families and automation cabinets, it blends reliability with practical value in everyday manufacturing.
Product Information
Extended Description

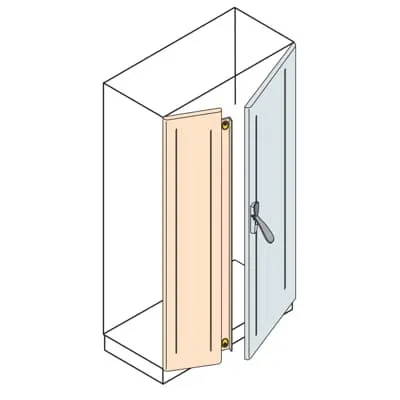

ED2016SK ABB: Blind door with overlaplapping closure 2000x800mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with overlap for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
850 mm
Product Net Height
2000 mm
Product Net Depth / Length
35 mm
Product Net Weight
27.90 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
28.470 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Configuration Type 3 and Enclosure Type Kit with blind door overlap for creating double doors reduces field fabrication and door alignment errors, delivering faster project start and consistent access to internal components in compact panels. Feature → Kit mounting enables modular assembly, improving on-site adaptability and simplifying retrofits in evolving production lines, which translates to lower commissioning costs for machine builders. Feature → Material is pickled steel with orange peel surface in RAL 7035, delivering corrosion resistance and a standardized industrial look, enhancing long-term durability in harsh factory environments while maintaining visual uniformity across panels. Feature → Dimensions include 850 mm width, 2000 mm height, and 35 mm depth with reference depths from 400 to 1000 mm, enabling precise space planning and compatibility with varied backplanes and mounting rails. Feature → RoHS and REACH compliance, plus CE Declaration of Conformity, reduce compliance risk and supplier qualification time for regulated industries while supporting global procurement. Feature → Documentation and standards alignment with IS2 Enclosures Technical Catalogue 2024, ETIM/ eClass classifications, and a clear mounting manual (1STM604121R0006) empower faster commissioning and consistent maintenance.
Get a Quick Quote for a ABB ED2016SK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ED2016SK?
Enquire Now
FAQs
The ED2016SK is delivered as a mounting kit designed for double-door configurations. Ensure mounting surfaces and back panels are compatible with the kit’s dimensions, and plan for reference depths of 400, 500, 600, 800 or 1000 mm. Use the supplied manual 1STM604121R0006 to guide assembly, alignment, and fastener selection for a robust finish.
With a net width of 850 mm, net height of 2000 mm, and a net depth of 35 mm, the enclosure supports reference depths from 400 to 1000 mm. This range enables flexible backplane sizing and wiring management, reducing cabling crowding and improving thermal performance in compact control cabinets.
Yes. The enclosure features RoHS information with a 20250108 RoHS date, and a REACH declaration with a statement that substances above thresholds are not present. It also carries a CE Declaration of Conformity, enabling regulatory compliance across many markets and simplifying supplier qualification.
The ED2016SK aligns with ETIM 8 EC000747 (Door/operating panel) and ETIM 9 EC000747, eClass V11.1 27182204, and the IS2 Enclosures Technical Catalogue 2024. These classifications help with standardized cataloging, cross referencing in procurement systems, and consistent product selection across automation projects.
Maintenance benefits include a durable pickled steel body with orange-peel, RAL 7035 finish that resists corrosion and wear, reducing repaint cycles. The kit design supports faster installation and easier future retrofits, improving total cost of ownership by shortening downtime, accelerating commissioning, and simplifying spare-part compatibility across IS2-enclosures families.
