ABB ED2202SK Enclosure Door Kit - RAL 7035 Finish
Part Number: ED2202SK
Quick Summary
ABB ED2202SK is an enclosure door kit designed for double-door configurations in industrial control panels. It helps you assemble secure, accessible enclosures without field fabrication. Engineers often struggle with reliable sealing, alignment, and retrofit compatibility when updating existing cabinets, particularly in high-density control rooms. This kit uses a blind door with overlap for a clean, seamless door pair and provides a robust, pickled steel construction finished in orange peel RAL 7035 to withstand harsh environments. It carries CE conformity with RoHS and REACH declarations and aligns with ETIM 8/9 and eClass classifications, supporting compliant procurement. For businesses, the result is faster installation, predictable maintenance, and reduced total cost of ownership across automation projects.
Product Information
Extended Description
ED2202SK ABB: Blind door with overlaplapping closure 2200x200mm (HxW)
Configuration Type
3. Door
Enclosure Type

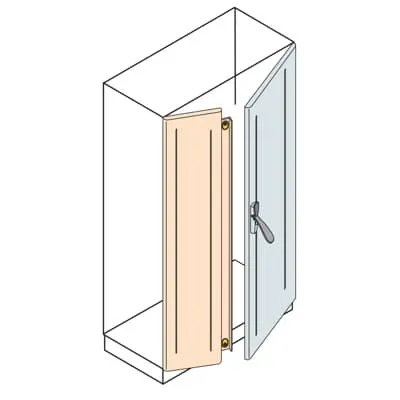

Kit - blind door with overlap for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
250 mm
Product Net Height
2200 mm
Product Net Depth / Length
35 mm
Product Net Weight
8.650 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
600 mm | 800 mm | 1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8.830 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Kit-based enclosure door with overlap enables customizable double-door configurations in ABB IS2 enclosures. Benefit: Reduces field fabrication time, minimizes misalignment, and improves maintenance access, delivering faster project deployment. Application: Ideal for control cabinet retrofits and new buildouts in industrial automation environments. Feature: Orange Peel, RAL 7035 surface finish and pickled steel sheet material. Benefit: Delivers durable corrosion resistance with a consistent aesthetic across harsh environments, lowering repaint frequency and downtime. Application: Front-door surfaces in process plants and manufacturing lines where appearance and protection matter. Feature: Door and mounting kit configuration (3. Door; Kit mounting; Double door). Benefit: Streamlined installation, fewer loose parts, and straightforward scaling for different enclosure widths. Application: Assembly of double-door panels in IS2 enclosures for modular automation systems. Feature: Reference depth/length options (400–1000 mm) and reference width options (600–1000 mm). Benefit: Flexible enclosure planning reduces custom fabrication and supports standardized procurement. Application: System integration projects requiring standardized enclosure footprints. Feature: Comprehensive compliance and documentation (CE, RoHS, REACH, ETIM 8/9, eClass). Benefit: Simplifies regulatory approvals, component classification, and supplier qualification processes. Application: Procurement and compliance management for regulated industries. Feature: Documentation and manuals (1STM604121R0006) and IS2 catalogue reference. Benefit: Reduces onboarding time and ensures correct installation procedures. Application: Field service, maintenance planning, and training for installation teams.
Get a Quick Quote for a ABB ED2202SK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ED2202SK?
Enquire Now
FAQs
ED2202SK is designed as a kit-based solution for ABB IS2 enclosures, featuring a double-door configuration and overlap seal. It enables straightforward mounting, alignment, and integration with standard IS2 dimensions, reducing retrofit complexities. With a mounting kit and compatible reference depths (400–1000 mm) and widths (600–1000 mm), installers can achieve consistent door alignment and reliable access across varying cabinet footprints.
The ED2202SK carries CE Declaration of Conformity, RoHS information with a RoHS date of 20250108, and REACH information with a 20250108 date. It is classified under ETIM 8/9 (EC000747 - Door/operating panel) and eClass V11.1 (27182204). WEEE classification indicates Product Not in WEEE Scope. These certifications help simplify regulatory approvals and supplier qualification during procurement.
Yes. The ED2202SK uses a blind door with overlap designed to create double-door configurations without field fabrication, making retrofit projects smoother. Its kit-based mounting and standardized dimensions support fast integration into existing IS2 enclosures, enabling quick upgrades and consistent door operation while preserving enclosure integrity and accessibility.
Installation references include the IS2 Enclosures Technical Catalogue 2024 and the manual 1STM604121R0006. Package details specify 1 piece per unit with a gross weight of 8.830 kg. The documentation supports correct door installation, alignment, and mounting procedures, helping service teams minimize commissioning time and errors during site deployment.
ED2202SK delivers measurable value through faster installation, reduced field fabrication, and improved long-term reliability of enclosure doors. By conforming to CE, RoHS, and REACH standards and aligning with ETIM/eClass classifications, procurement is simplified, maintenance planning is streamlined, and total cost of ownership is lowered across both retrofit and new-build automation projects.
