ABB ED2216SK Control Board - CE IS2 Enclosures 2024
Part Number: ED2216SK
Quick Summary
ED2216SK control board delivers rugged enclosure solutions for industrial control panels in automation environments. Engineers often wrestle with complex double-door configurations and precise mounting in tight spaces. This ABB solution carries CE conformity, RoHS and REACH declarations to support compliance-heavy installations, while the kit-based mounting and durable pickled steel construction help reduce install time and increase panel reliability across demanding environments. The orange peel finish in RAL 7035 ensures consistent aesthetics and long-term protection, reinforcing value for system integrators and end users alike.
Product Information
Extended Description

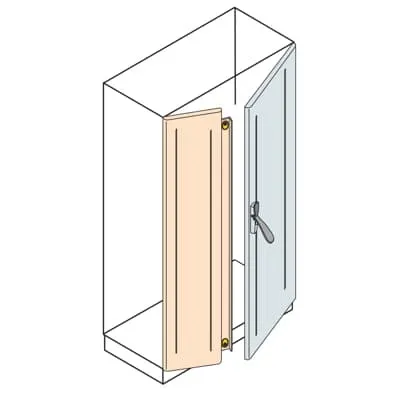

ED2216SK ABB: Blind door with overlaplapping closure 2200x800mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - blind door with overlap for making double doors
Mounting Type
Kit
Product Type
5B5B20B230
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
850 mm
Product Net Height
2200 mm
Product Net Depth / Length
35 mm
Product Net Weight
30.690 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
31.320 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Kit-based mounting with a blind door and overlap for creating double doors. Business Impact: Enables modular, scalable enclosures that simplify on-site assembly and future upgrades. Application: Ideal for panel builders upgrading control cabinets in automated manufacturing lines. Feature: Double-door design with opaque surface finish. Business Impact: Improves access and visibility for wiring and service, while maintaining a clean, professional appearance. Application: Suitable for maintenance corridors and high-density control panels. Feature: Material and finish a pickled steel sheet with orange peel, RAL 7035. Business Impact: Delivers robust mechanical protection with consistent color and corrosion resistance in harsh environments. Application: Industrial enclosures in machine tools and packaging lines. Feature: Dimensional versatility with reference depths and standard widths. Business Impact: Allows flexible mounting options and compatibility with 400, 500, 600, 800, or 1000 mm reference depths. Application: Panel systems requiring adaptable footprint. Feature: RoHS and REACH compliance with IS2 catalog reference. Business Impact: Supports regulatory compliance and future-proofing for global deployments. Application: Global projects demanding traceable material declarations and lifecycle management.
Get a Quick Quote for a ABB ED2216SK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ED2216SK?
Enquire Now
FAQs
The ED2216SK is a kit-based enclosure designed to accept blind doors configured for overlap to form double doors. It integrates with standard mounting kits and supports reference depths of 400, 500, 600, 800 and 1000 mm, enabling straightforward adaptation to existing panel layouts and reducing retrofit time.
Key dimensions include a 1200 mm width by 2200 mm height with a 400 mm depth exterior, and a 850 mm net width. The enclosure uses pickled steel sheet with an orange peel finish (RAL 7035), providing strength and corrosion resistance suitable for demanding industrial settings.
Ideal for control panels in automation lines, machine tooling, and packaging equipment where double-door access improves serviceability. The IS2 designation and CE/RoHS/REACH compliance make it suitable for global deployments in manufacturing, process automation, and system integration projects.
The enclosure carries CE conformity with an IS2 declaration and RoHS/REACH declarations. It aligns with ETIM EC000747 classifications and complies with WEEE expectations, ensuring regulatory and environmental compliance throughout the product lifecycle.
Reference manuals (1STM604121R0006) and the IS2 Enclosures Technical Catalogue 2024 provide installation guidance, component compatibility, and lifecycle considerations. The robust finish, modular mounting, and standard sizes help reduce downtime and extend panel service intervals, delivering measurable ROI through higher reliability and faster upgrades.
