ABB EE1011 Control and Automation Board - IS2 Enclosures
Part Number: EE1011
Quick Summary
ABB EE1011 is a control and automation board for IS2 enclosure systems. Engineers often struggle with space planning, heat management, and access during panel configuration. The solution carries CE conformity with a Declaration of Conformity IS2, RoHS compliance dated 20250108, and REACH information for regulatory assurance. Designed for IS2 enclosures and partitioned automation cabinets, it delivers faster installation, predictable performance, and simplified maintenance, helping teams reduce downtime and project risk while supporting scalable automation architectures. Its compatibility with IS2 enclosure standards also supports retrofit projects without major cabinet redesign, providing a practical path to modernization in evolving automation environments.
Product Information
Extended Description

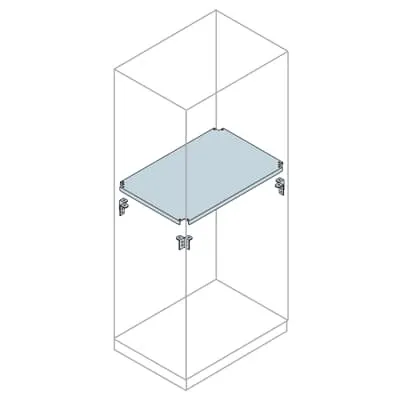

EE1011 ABB: Horizontal fixed partition panels 1000x1000mm (WxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
2. Horizontal partition panels
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
970 mm
Product Net Height
1000 mm
Product Net Depth / Length
1000 mm
Product Net Weight
12.040 kg
Reference Depth/Length
1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
12.280 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Feature: Horizontal fixed partition panels 1000x1000 mm (WxD) crafted from pickled steel sheet. Impact: Provides robust, durable internal partitioning that enhances cable routing, EMI control, and equipment accessibility. Application: Ideal for IS2 automation enclosures where modular control and clear separation of devices are required for reliability and serviceability. Feature: Kit or pre-assembled mounting type. Impact: Reduces on-site assembly time and potential wiring errors, enabling faster project ramp and consistent installation quality. Application: Fits standard IS2 cabinet workflows and retrofit scenarios, improving schedule certainty for panel integrators. Feature: Includes 2 horizontal partition panels. Impact: Improves space utilization and offers ready-to-deploy partitioning for immediate deployment. Application: Supports 970 mm width x 1000 mm depth configurations within 1000 mm base enclosures, streamlining wiring layouts. Feature: Material compliance and standards (RoHS, REACH, CE). Impact: Regulatory assurance and audit readiness, reducing compliance risk and downstream costs. Application: Essential for industrial deployments needing formal conformity documentation in line with 2024 IS2 enclosures catalogs. Feature: Dimensions and weight (Product Net Width 970 mm, Height 1000 mm, Depth 1000 mm; Net weight 12.040 kg). Impact: Clear fitment guidance for enclosure planning, enabling accurate BOMs and space planning. Application: Supports precise enclosure routing and compatibility checks with IS2 automation boards.
Get a Quick Quote for a ABB EE1011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE1011?
Enquire Now
FAQs
To install the EE1011 partition panels, use the pre-assembled mounting kit or the available kit option to integrate two horizontal panels into the IS2 enclosure. Follow the installation manual 1STM604121R0006 for step-by-step guidance, align panels with the 970 mm width and 1000 mm depth, and verify weight and fitment (12.040 kg). The process simplifies cable routing, improves accessibility, and supports standard IS2 mounting practices.
Key specifications include a net width of 970 mm, net height of 1000 mm, net depth of 1000 mm, and a net weight of 12.040 kg. The assembly comprises two horizontal partition panels made from pickled steel, with mounting provided as a kit or pre-assembled. It is designed for IS2 enclosures and supports 1000x1000 mm partitioning within standard automation cabinet architectures.
Yes. The EE1011 is explicitly specified for IS2 enclosures and IS2 automation projects, providing compatible partitioning for control and automation boards. It supports IS2 enclosure standards, ETIM and eClass classifications, and is aligned with IS2 Enclosures Technical Catalogue 2024 recommendations, ensuring seamless integration with existing IS2 infrastructure.
ABB EE1011 features CE conformity via the Declaration of Conformity IS2, RoHS compliance dated 20250108, and REACH information. It also notes WEEE category as not in scope, and it references ETIM 8/9 classifications and eClass V11.1. Compliance documentation supports audits and regulatory reporting for manufacturing environments.
The EE1011 partition panels reduce on-site assembly time with a pre-assembled mounting option, lowering installation labor costs and project risk. Durable pickled steel construction improves long-term reliability in industrial settings, and regulatory conformity streamlines compliance audits. Overall, faster commissioning, easier maintenance access, and standardized panel spacing contribute to a favorable ROI in automation cabinet projects.
