ABB EE1852 Control and Automation Board - RoHS/CE
Part Number: EE1852
Quick Summary
ABB EE1852 is a control and automation board designed for IS2 enclosures in automation panels. Engineers often struggle with mounting compatibility and scalable panel layouts when upgrading legacy enclosures. The design aligns with CE conformity, RoHS compliance, and REACH declarations, ensuring regulatory readiness for modern manufacturing environments. By standardizing a pre-assembled kit option and a precise 1800x500 mm footprint, it delivers clearer installation paths and reduced lead times. This improves procurement efficiency while preserving flexibility for IS2 enclosure ecosystems and divider-panel configurations, making it a reliable backbone for automation projects. Customers gain predictable sourcing and easier maintenance with documented specifications, ETIM categorization, and accessible data sheets. In high-mix manufacturing, the EE1852 reduces variance across lines and supports scalable upgrades.
Product Information
Extended Description

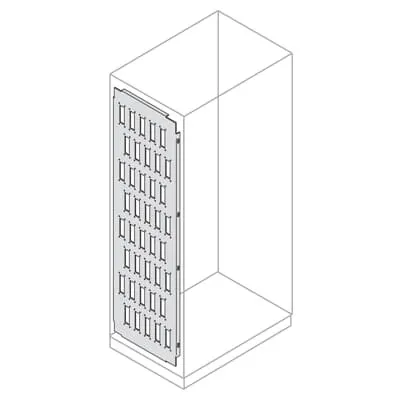

EE1852 ABB: Connector holder panel 36 holes 9/4 1800x500mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
21. Accessories
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
7. Connector holder panel
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
30 mm
Product Net Height
1800 mm
Product Net Depth / Length
0.500 mm
Product Net Weight
12.940 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
13.200 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Mounting Type Kit | Pre assembled. By delivering a ready-to-install assembly, EE1852 reduces field assembly time and guarantees consistent panel layouts across production lines. This is particularly valuable in IS2 Enclosures for Automation projects where speed and reliability matter. Connector capacity with 36 holes for 9/4 connectors on an 1800x500 mm panel. This arrangement improves cable routing and reduces misalignment risks during wiring and testing. In practice, technicians can complete panel integration faster, with fewer post-install adjustments. Material is pickled steel sheet, providing corrosion resistance and mechanical strength in harsh industrial environments. Coupled with ETIM classification, it supports long service life and reduces replacement frequency, cutting total cost of ownership. Dimensions and compatibility include a 30 mm net width, 1800 mm net height, and 0.500 mm net depth, with reference widths and heights covering common IS2 configurations. This broad range minimizes the need for custom panels and simplifies component standardization across lines. Compliance and installation support ensure RoHS information with date 20250108, REACH declaration, and CE conformity to meet regulatory requirements. Documentation includes installation references and the 2024 IS2 Enclosures Catalogue, aiding audits and procurement alignment.
Get a Quick Quote for a ABB EE1852
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE1852?
Enquire Now
FAQs
EE1852 is designed as an IS2 Enclosures for Automation accessory, compatible as a Kit or Pre assembled mounting type. This flexibility supports both new installations and upgrades, enabling faster commissioning and consistent panel layouts across automation lines. The 36-hole connector arrangement ensures reliable wiring in standard IS2 configurations.
Key specs include a panel footprint of 1800x500 mm, product net width 30 mm, height 1800 mm, depth 0.500 mm, and a weight of 12.940 kg. It supports 36 holes for 9/4 connectors and uses pickled steel sheet material. The reference dimensions cover 1400–2200 mm heights and 400–1600 mm widths, aligning with common IS2 enclosure sizes.
Yes. EE1852 carries CE conformity and RoHS information with RoHS date 20250108, plus a REACH declaration. It also aligns with a CE Declaration of Conformity for IS2, and WEEE considerations specify it is not within the WEEE scope. Documentation supports audits and regulatory reporting for industrial environments.
EE1852 is available as both a kit and a pre-assembled solution to suit project preferences. It is categorized as a 21. Accessories type with the Connector holder panel option, designed for IS2 Enclosures for Automation. Ordering as a kit simplifies customization, while pre-assembled units speed up field installation and reduce on-site assembly risk.
The panel reduces installation time and promotes standardization across lines through a uniform 1800x500 mm footprint and consolidated mounting. It enhances reliability with a robust pickled steel construction and 36 connector holes, while ensuring CE, RoHS, and REACH compliance for regulatory risk mitigation. These attributes support faster time-to-production and lower lifecycle costs.
