ABB EE2020 Control and Automation Board - IS2 Enclosures
Part Number: EE2020
Quick Summary
ABB EE2020 is a control and automation board enclosure designed for IS2 enclosures in automation installations. Manufacturers and integrators often struggle with cable routing and busbar segregation in tight spaces, leading to longer assembly times and higher risk of wiring mistakes. This solution aligns with CE conformity, RoHS and REACH declarations to streamline regulatory compliance and reduce risk. The enclosure is manufactured from pickled steel sheet and supports multiple reference lengths and heights, enabling scalable configurations for evolving control architectures. By combining a pre-assembled mounting kit with a dedicated cable container and vertical busbar segregation, it delivers faster installation, improved reliability, and easier maintenance in control cabinets and automation panels.
Product Information
Extended Description

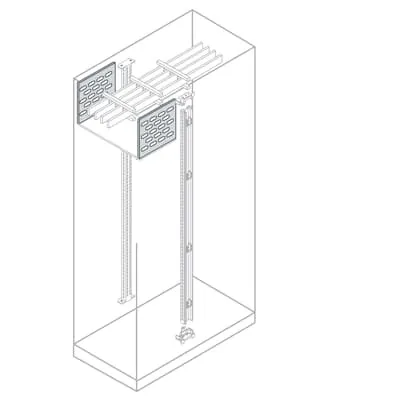

EE2020 ABB: Vertical busbar segregation internal cable container W=200mm 200x200mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
10. Cable container
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
5. Vertical busbar segregations - Internal cable container
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
65 mm
Product Net Depth / Length
200 mm
Product Net Weight
0.860 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.870 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Vertical busbar segregation and an integrated internal cable container are core features. This design minimizes insulation breaches and short circuits, reducing maintenance cycles and downtime in automation panels. It is purpose-built for IS2 enclosures for automation, where compact layouts demand orderly cable management and safe busbar routing. The kit is available as mounting kit or pre-assembled, speeding installation and reducing on-site labor. Engineers benefit from predictable assembly sequences and fewer field wiring errors, accelerating projects for control and automation boards in manufacturing facilities. Constructed from pickled steel sheet, the enclosure offers robust protection in demanding environments. The material choice supports durability and corrosion resistance while keeping weight within manageable limits for field installations. Configurable dimensions align with reference depths, heights, and widths, including 300–1000 mm depths, 1400–2200 mm heights, and 400–1600 mm widths. This flexibility enables scalable architectures from compact panels to larger automation cabinets. Compliance is clear with RoHS and REACH declarations and a CE Declaration of Conformity, easing audits and supplier qualification. The WEEE category and ETIM classification further simplify cataloging and integration within industrial procurement systems. Together, ABB EE2020 delivers a reliable, installation-friendly solution for control cabinets, offering faster deployment, safer wiring, and long-term cost savings through standardized IS2 enclosure configurations.
Get a Quick Quote for a ABB EE2020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE2020?
Enquire Now
FAQs
Yes. EE2020 is designed specifically for IS2 enclosures for automation and ships with a mounting kit option, or as a pre-assembled solution to fit IS2 frame systems. Ensure the mounting method aligns with your enclosure depth and height requirements for straightforward integration.
Key dimensions include a net width of 100 mm, net height of 65 mm, and net depth of 200 mm, with reference lengths and heights supporting larger configurations. The enclosure is manufactured from pickled steel sheet, balancing rigidity with manageable weight for field installations.
EE2020 excels in control cabinets and automation panels requiring orderly cable management and busbar segmentation. It supports vertical busbar segregation and an internal cable container to improve safety, reliability, and maintenance efficiency in manufacturing and process industries.
EE2020 carries CE conformity, RoHS information with a 20250108 date, and REACH declarations, ensuring compliance for regulated manufacturing environments. WEEE categorization and ETIM classification further streamline procurement and cataloging.
The pre-assembled mounting option reduces installation time, while vertical busbar segregation and a dedicated cable container simplify maintenance and fault isolation. These features translate to lower labor costs, reduced downtime, and longer intervals between servicing for automation panels.
