ABB EE2051 Partition Panels - IS2 Enclosures (ETIM)
Part Number: EE2051
Quick Summary
ABB EE2051 Partition Panels provide modular vertical dividers for IS2 automation enclosures. Engineers often wrestle with securing space for controls while maintaining clear cable routes in dense cabinets. The solution delivers a robust pickled steel divider kit available as a pre-assembled option or a flexible on-site kit, designed to streamline installation and future upgrades. It carries CE Declaration of Conformity for IS2, RoHS compliance dated 2025-01-08, REACH information, and ETIM classifications, ensuring regulatory alignment across projects. With reference widths up to 1600 mm and a compact 400 mm net width, it simplifies procurement and layout planning. The result is faster installs, improved airflow, and scalable modularity for control and automation boards.
Product Information
Extended Description

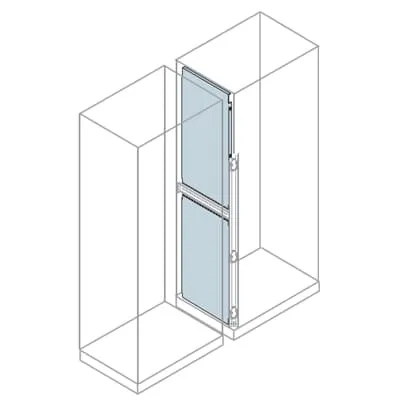

EE2051 ABB: Vertical partition panels 2000x500mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
1. Vertical partition panels for side-by-side structures
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
400 mm
Product Net Height
2000 mm
Product Net Depth / Length
500 mm
Product Net Weight
8.890 kg
Reference Depth/Length
500 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
9.070 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Feature Mounting Type Kit | Pre assembled → Business Impact Enables fast, flexible installation with consistent mounting quality, reducing on-site rework. Application IS2 automation enclosures requiring modular partitioning. Feature Vertical partition panels for side-by-side structures → Business Impact Improves cable management and space utilization, supporting cleaner layouts and airflow. Application Side-by-side enclosure configurations in automation plants. Feature Material Pickled steel sheet → Business Impact Delivers durable, corrosion-resistant divider panels suitable for industrial environments. Application Internal partitioning within control and automation cabinets. Feature Dimensions and compatibility → Business Impact Provides a predictable footprint with 400 mm net width, 2000 mm net height, and 500 mm net depth, plus reference widths from 400 to 1600 mm. Application Fits IS2 enclosure variants and scalable layouts. Feature Compliance and documentation → Business Impact Simplifies procurement and audits with RoHS, REACH, WEEE, CE DoC, ETIM, and eClass datasheets. Application Regulatory compliance for multinational projects and supply-chain traceability. Industry context and ROI → Business Impact Modular, standards-aligned dividers reduce downtime during upgrades, improve maintenance access, and support consistent engineering across automation projects. Application Suitable for IS2 Enclosures for Automation and Control and Automation Boards, aligning with industry best practices.
Get a Quick Quote for a ABB EE2051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE2051?
Enquire Now
FAQs
EE2051 offers a kit or pre-assembled mounting option designed for IS2 automation enclosures. Begin by confirming the enclosure width to match the 400 mm net width and select the appropriate reference width (400–1600 mm). Install vertical partition panels to create side-by-side sections, route cables cleanly, and secure panels with standard enclosure hardware. The kit approach speeds up installation and reduces on-site fabrication.
Key specifications include a 400 mm net width, 2000 mm net height, and 500 mm net depth, with pickled steel sheet material offering rugged durability. Mounting can be kit-based or pre-assembled, and the panels support side-by-side IS2 enclosure configurations. Compatibility with a range of reference widths (400–1600 mm) ensures flexible integration into existing cabinets.
Yes. EE2051 is explicitly designed for side-by-side structures within IS2 automation enclosures. Its vertical partition panels enable modular, scalable layouts that optimize space, improve cable management, and maintain clear access to components in multi-bank cabinets.
EE2051 carries a CE Declaration of Conformity for IS2, RoHS information with a 20250108 date, REACH information with a 20250108 date, and ETIM classifications (EC002525). These certifications simplify regulatory audits, ensure material safety, and support consistent procurement and maintenance across global sites.
Utilizing EE2051 reduces field installation time and future upgrade effort by providing a ready-made divider solution with clear documentation. Its compliant materials and standardized dimensions minimize risks during audits and spare part mismatches, delivering better lifecycle predictability and lower total cost of ownership for automation cabinets.
