ABB EE2081 Partition Panels - Divider Panel (ETIM EC002525)
Part Number: EE2081
Quick Summary
ABB EE2081 partition panels enable vertical division for IS2 automation enclosures. Engineers commonly face wiring congestion and misalignment as control systems scale. These panels meet CE conformity with RoHS compliance (RoHS date 20250108) and REACH declarations, and carry ETIM and eClass classifications to streamline procurement and interoperability. Used as a mounting kit or pre-assembled solution, they speed installation and simplify future upgrades. By aligning with IS2 enclosure layouts and side-by-side configurations, they deliver repeatable, scalable control-board architectures that save time and reduce operating costs.
Product Information
Extended Description

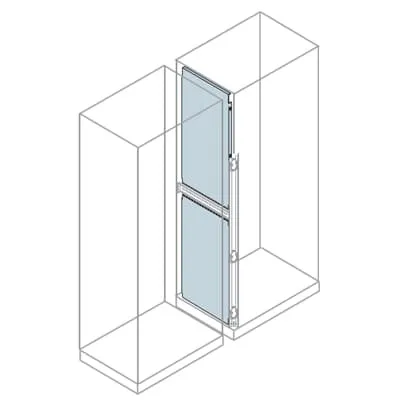

EE2081 ABB: Vertical partition panels 2000x800mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
1. Vertical partition panels for side-by-side structures
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
690 mm
Product Net Height
18 mm
Product Net Depth / Length
940 mm
Product Net Weight
14.880 kg
Reference Depth/Length
800 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
15.180 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Feature → Mounting Type: Kit or Pre-assembled partition panels. Business Impact: accelerates deployment with predictable mounting points and minimal field modifications, improving project timelines and accuracy. Application: IS2 Automation enclosures and control-and-automation boards. Feature → Material: Pickled steel sheet. Business Impact: rugged, corrosion-resistant construction suitable for harsh industrial environments, reducing maintenance and replacement costs. Application: industrial automation cabinets and IS2 enclosure installations. Feature → Dimensions and compatibility: Vertical partition panels measure 2000x800 mm (HxD) with a product net width of 690 mm and reference widths from 400 to 1600 mm. Business Impact: modular width options support side-by-side structures and scalable layouts, lowering customization costs. Application: IS2 enclosure projects that need flexible control-board separation. Feature → Installation and integration: Kit and pre-assembled mounting options, with included vertical partition panels for side-by-side structures. Business Impact: reduces installation risk, improves repeatability, and speeds upgrades. Application: new installations and retrofits in automation systems. Feature → Compliance and documentation: RoHS information, REACH declaration, CE conformity, WEEE status, ETIM 8/9 and eClass classifications. Business Impact: ensures regulatory alignment, simplifies procurement, and enhances traceability across supply chains. Application: procurement for industrial automation cabinets and IS2 enclosure programs.
Get a Quick Quote for a ABB EE2081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE2081?
Enquire Now
FAQs
EE2081 panels are available as a kit or pre-assembled mounting option and install using standard enclosure mounting points compatible with IS2 automation enclosures. Reference the installation manual 1STM604121R0006 for step-by-step guidance and ensure correct alignment with adjacent panels in side-by-side configurations.
Key specs include vertical divider panels sized at 2000x800 mm (HxD) with a product net width of 690 mm, crafted from pickled steel sheet. The assembly supports reference widths from 400 to 1600 mm, and each kit ships with the necessary mounting hardware for IS2 automation boards.
Yes. EE2081 is designed for IS2 enclosures and includes options for side-by-side structures. The 400–1600 mm reference width range enables flexible configurations, reducing the need for custom fabrications while keeping cabling and component separation tidy.
EE2081 carries CE conformity, RoHS compliance (RoHS date 20250108), and REACH declarations. It is classified under ETIM 8/9 as EC002525 for divider panels and aligns with eClass V11.1 27182102, ensuring procurement and interoperability across systems.
The panels improve ROI by speeding installation, simplifying future upgrades, and delivering organized cable management that reduces maintenance time. Their rugged pickled steel construction and regulatory compliance minimize downtime and support scalable automation cabinet projects over the system lifecycle.
