ABB EE2241 Partition Panels - CE Certified IS2 Enclosures
Part Number: EE2241
Quick Summary
ABB EE2241 Partition Panels are used to organize automation control cabinets, enabling clean separation of power and control lines in IS2 enclosure systems. Engineers often face misaligned partitions and long on-site assembly times; these pre-assembled panels streamline installation and reduce wiring errors. Key certifications include CE declarations of conformity, RoHS compliance, and REACH information, ensuring safe, compliant operation in regulated environments. The product’s compatibility with IS2 enclosures and side-by-side structures translates to faster project delivery, easier scalability, and lower total cost of ownership. Designed for industrial environments, the panels support standard cabinet widths and offer reliable material performance in demanding electrical and automation applications.
Product Information
Extended Description

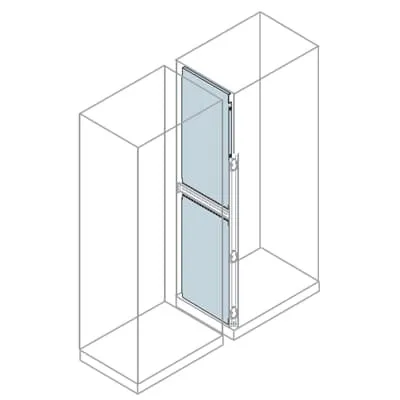

EE2241 ABB: Vertical partition panels 2200x400mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
1. Vertical partition panels for side-by-side structures
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
300 mm
Product Net Height
2200 mm
Product Net Depth / Length
400 mm
Product Net Weight
7.60 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
7.760 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Material and construction provide robust durability in harsh industrial environments, reducing maintenance cycles and extending service life for automation cabinets. The pickled steel sheet offers reliable strength while supporting compliant RoHS and REACH standards, which lowers regulatory risk and simplifies supplier audits. Mounting as a kit or pre-assembled option accelerates installation, cut-down on field labor, and minimizes risk of misalignment during assembly. The dimensioning (2200 mm height) and 400 mm depth, with a net width of 300 mm, deliver predictable partitioning for organized cable routing and improved airflow, contributing to better thermal management and longer component life. Compatibility with IS2 enclosures and side-by-side structures enables scalable configurations and faster deployment across multiple lines. Vertical partition panels for side-by-side layouts simplify future reconfiguration, reducing downtime during upgrades and expansions. ETIM and eClass classifications support accurate procurement and cross-system compatibility, while the CE declaration and WEEE considerations align with global compliance requirements, delivering a cost-efficient, standards-aligned enclosure accessory.
Get a Quick Quote for a ABB EE2241
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE2241?
Enquire Now
FAQs
Yes, EE2241 is designed for IS2 enclosures and can be supplied as a kit or pre-assembled. Installation typically involves mounting the partition panels within the IS2 frame, aligning with side-by-side structures, and securing with standard fasteners. The pre-assembled option reduces on-site assembly time and minimizes risk of misalignment, delivering faster commissioning and reliable partition integrity.
EE2241 panels are made from pickled steel sheet and sized for a height of 2200 mm, depth of 400 mm, and a net width of 300 mm, with reference widths from 400 to 1600 mm. These dimensions help create clean, unobstructed cable runs and improved airflow, while the sturdy material withstands industrial use and supports long-term enclosure performance.
Industries deploying automated control cabinets and IS2 enclosures benefit most, including manufacturing, process automation, and energy management. The panels support side-by-side structures, organize power and control circuits, and improve maintainability in high-density cabinet deployments, enabling scalable configurations for multiple production lines and retrofit projects.
EE2241 carries a CE Declaration of Conformity, RoHS compliance, and REACH information with a declaration date of 2025-01-08. WEEE considerations indicate the product is not within the WEEE scope. These certifications support regulatory compliance, product safety, and environmental responsibility across global markets.
The ROI comes from faster installation, reduced field labor, and lower risk of wiring errors due to pre-assembled parts. Maintenance is simplified by consistent partition alignment and durable steel construction, which minimizes rework and downtime during future expansions. Compatibility with IS2 enclosures also reduces redesign costs when scaling control architectures.
