ABB EE2252 Control and Automation Board - RoHS & CE Compliance
Part Number: EE2252
Quick Summary
ABB EE2252 Control and Automation Board is a modular mounting solution for IS2 Enclosures in automation facilities. Design engineers often struggle with time-consuming assembly and limited access to reliable connector panels that endure harsh environments. This kit carries CE Declaration of Conformity, RoHS and REACH compliance, ensuring regulatory alignment across installers and operators. By combining a pre-assembled kit with galvanized steel construction, it accelerates installation while maintaining robust protection. With scalable reference widths and heights, the EE2252 supports growing control systems while simplifying procurement for automation projects.
Product Information
Extended Description

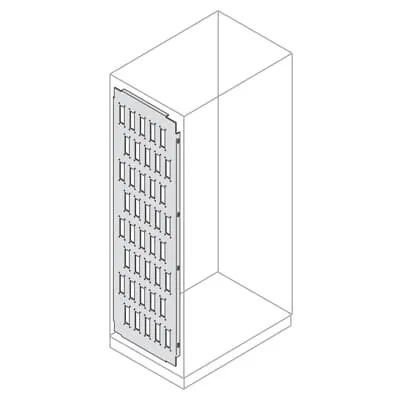

EE2252 ABB: Connector holder panel 48 holes 12/4 2200x500mm (HxD)
Sub-Function
48
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
21. Accessories
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Galvanized Steel sheet
Options Provided
7. Connector holder panel
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
410 mm
Product Net Height
2110 mm
Product Net Depth / Length
30 mm
Product Net Weight
15.980 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
16.310 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002309 - Adapter plate industrial connectors
ETIM 9
EC002309 - Adapter plate industrial connectors
eClass
V11.1 : 27440201
Object Classification Code
U
Standards
See code for structure
Feature → 48-hole connector holder panel (12/4) provides flexible I/O organization, reducing wiring complexity and enabling denser, cleaner panels for IS2 enclosure apps. Business Impact → Faster wiring runs and easier maintenance, lowering field labor costs and minimizing downtime during upgrades. Application → Ideal for automation cabinets requiring high I/O density with dependable long-term performance. Feature → Pre-assembled mounting kit speeds installation and ensures compatibility with IS2 enclosures. Business Impact → Shortens project timelines, lowers on-site error rates, and improves first-pass fit when deploying multiple lines. Application → Widely beneficial for greenfield builds and retrofits in manufacturing environments. Feature → Galvanized steel construction delivers corrosion resistance in challenging environments. Business Impact → Extends service life, reduces maintenance cycles, and lowers total cost of ownership. Application → Suitable for factory floors, dust-prone areas, and humid conditions. Feature → Wide compatibility with enclosure widths and heights (Reference Widths: 400–1600 mm; Reference Heights: 1400–2200 mm). Business Impact → Enables scalable configurations across multiple lines without custom fabrications. Application → Supports standardized infrastructure in multi-line automation plants. Feature → RoHS and REACH compliance with CE conformity support regulatory and supplier audits. Business Impact → Mitigates compliance risk, eases procurement, and facilitates global deployments. Application → Essential for projects subject to electronics material restrictions and corporate sustainability programs.
Get a Quick Quote for a ABB EE2252
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE2252?
Enquire Now
FAQs
Installation starts with selecting the correct reference width and height from the IS2-compatible range, then mounting the 48-hole connector holder panel as a pre-assembled kit. The kit’s mounting hardware is designed for rapid alignment within IS2 frames, reducing onsite adjustments and wiring errors. Follow the included mounting instructions 1STM604121R0006 for best results and to ensure CE conformity is maintained during integration.
Key specs include a 48-hole connector holder panel (12/4), galvanized steel sheet construction, a net weight of 15.98 kg, and reference dimensions that support widths from 400 to 1600 mm and heights from 1400 to 2200 mm. The product is designed for pre-assembled installation in IS2 enclosures, delivering reliable mechanical support and organized wiring for automation boards.
Yes. The EE2252 is designed to fit a range of IS2 enclosure configurations, with reference widths of 400, 600, 800, 1000, 1200, and 1600 mm and reference heights of 1400, 1600, 1800, 2000, and 2200 mm. This flexibility supports scalable automation architectures and standardized mounting across plant lines without custom fabrication.
EE2252 carries CE Declaration of Conformity and complies with RoHS and REACH requirements. It is designed to meet environmental and safety expectations for industrial enclosures, aiding regular audits and supplier certifications while aligning with IS2 enclosure standards and ETIM classifications.
The pre-assembled kit reduces field assembly time, lowers the risk of wiring errors, and minimizes downtime during cabinet upgrades. Over the project lifecycle, these time savings translate into faster deployments, lower labor costs, and improved reliability, delivering a favorable return on investment for automation and control projects.
