ABB EE2261 Partition Panels - CE Declaration of Conformity
Part Number: EE2261
Quick Summary
ABB EE2261 Partition Panels optimize IS2 enclosures as vertical dividers for control and automation boards. Engineers often struggle with space constraints and complex cable routing when configuring multi-panel enclosures, leading to longer installation times and higher risk of wiring errors. This solution carries CE conformity, RoHS compliance, and REACH declarations to streamline audits and regulatory reporting. By offering a pre-assembled kit in pickled steel, it delivers reliable strength where it matters most while simplifying field assembly. The result is scalable automation architecture with predictable installation timelines and reduced maintenance, making it a prudent choice for system integrators and OEMs aiming for faster time to production and consistent cabinet performance.
Product Information
Extended Description

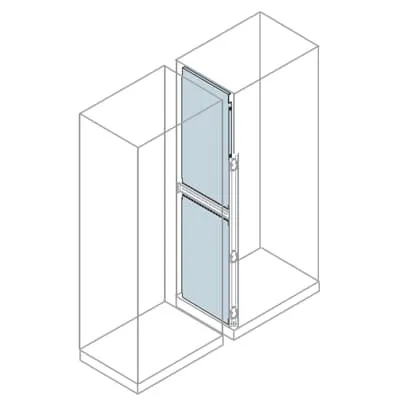

EE2261 ABB: Vertical partition panels 2200x600mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
1. Vertical partition panels for side-by-side structures
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
450 mm
Product Net Height
2200 mm
Product Net Depth / Length
600 mm
Product Net Weight
11.990 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
12.240 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Feature: Vertical divider panels for IS2 enclosures create dedicated lanes for power and control circuits. Business impact: improved space utilization, easier cable routing, and reduced cross-talk, which translates into faster commissioning. Application: ideal for control and automation boards in machine builders and process plants. Feature: Kit or pre-assembled mounting option. Impact: flexible deployment and consistent alignment, cutting on-site assembly time by hours. Application: retrofit projects and new builds within harsh industrial environments. Feature: Pickled steel sheet material. Impact: robust durability and corrosion resistance in typical factory conditions, extending cabinet life. Application: interior partitioning in automated IS2 enclosures where reliability matters. Feature: Dimensions 450 mm net width, 2200 mm height, 600 mm depth. Impact: aligns with standard IS2 enclosure footprints and reference widths up to 1600 mm. Application: design planning and modular enclosure configurations for side-by-side structures. Feature: RoHS and REACH compliance with CE Declaration. Impact: regulatory alignment and smoother supplier audits, reducing compliance risk. Application: procurement and maintenance teams seeking long-term regulatory reliability. Feature: Vertical partition panels for side-by-side structures. Impact: expands enclosure capacity while keeping subsystems organized and accessible. Application: optimal for IS2 automation cabinets in multi-station manufacturing lines.
Get a Quick Quote for a ABB EE2261
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE2261?
Enquire Now
FAQs
The EE2261 kit provides vertical partitions compatible with IS2 cabinets, available as a kit or pre-assembled option. Begin by aligning panels with the enclosure frame, securing mounting points per the 1STM604121R0006 installation manual, and verifying 450 mm net width against your chosen IS2 width to ensure a stable, accessible cabinet layout.
EE2261 panels are designed for IS2 enclosures supporting side-by-side structures and a range of reference widths from 400 mm to 1600 mm. The net partition width is 450 mm, which fits within standard IS2 configurations while allowing flexible width combinations for modular cabinet design.
EE2261 panels come with CE Declaration of Conformity and RoHS/REACH compliance, with REACH information and dates (20250108) documented. WEEE classification indicates the product is not in scope, supporting streamlined regulatory reporting.
EE2261 partitions improve space utilization, simplify cable routing, and enable side-by-side structure deployment. The kit option reduces installation time, while pickled steel construction enhances durability in industrial environments, contributing to faster time-to-production and lower maintenance needs.
The pickled steel sheet construction offers robust durability with corrosion resistance, supporting longer cabinet lifecycles in typical factory conditions. Regular inspection and alignment checks maintain optimal performance, while the modular partition design simplifies subsystem upgrades and future scalability.
