ABB EE2800 Partition Panels Kit - CE Declaration
Part Number: EE2800
Quick Summary
EE2800 partition panels kit is a modular enclosure accessory designed for IS2 enclosures used in automation. Many projects struggle with space constraints, busbar segregation, and mounting complexity that slow commissioning and raise fault risk. This kit carries CE declaration, RoHS compliance, and REACH information to support global installations and regulatory alignment. Designed as a pre-assembled or kit option for IS2 enclosures, it accelerates assembly, reduces labour, and improves enclosure integrity. Manufacturers benefit from predictable mounting budgets and easier serviceability thanks to vertical busbar segregation design. The product material is pickled steel, offering durability while supporting modular depth options from 300 mm to 1000 mm.
Product Information
Extended Description

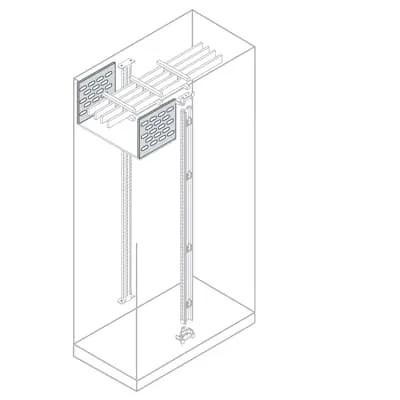

EE2800 ABB: Vertical busbar segregation W=800mm 200x800mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
3. Vertical busbar segregations - Structure
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
220 mm
Product Net Height
50 mm
Product Net Depth / Length
0.800 mm
Product Net Weight
4.310 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
4.390 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Vertical busbar segregation is built into the EE2800 kit, reducing potential short circuits and making maintenance simpler. For IS2 enclosures used in automation, this translates to cleaner wiring layouts and faster fault isolation, improving overall reliability. Mounting flexibility is a core feature; you can choose a kit or pre-assembled arrangement to fit project timelines. The business impact is faster commissioning, lower on-site labour, and consistent panel alignment for multi-bay cabinets. Constructed from pickled steel sheet with structured divider panels, the EE2800 delivers durable performance in harsh environments. The three vertical busbar segregations provide organized conductor routing and scalable expansion as your control system grows. CE declaration, RoHS compliance, and REACH information ensure regulatory readiness for global deployments. The enclosure compatibility is confirmed with IS2 enclosures for automation and the product class control and automation board. Dimensions and weights are kept predictable: net width 220 mm, net height 50 mm, and net depth 0.800 mm with reference depths from 300 to 1000 mm and heights from 1400 to 2200 mm. This predictable footprint simplifies budgeting and installation planning. ETIM, eClass, and ETIM/EN standards ensure accurate data exchange with procurement and design tools. The kit is designed for IS2 enclosures and is compatible with fiber-bearing and standard control panels.
Get a Quick Quote for a ABB EE2800
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE2800?
Enquire Now
FAQs
Begin by confirming IS2 enclosure compatibility and the intended reference dimensions (depths 300–1000 mm, heights 1400–2200 mm). Mount the partition panels using the kit’s pre-assembled option or assemble on site per the IS2 installation manual 1STM604121R0006. Ensure vertical busbar segregations are aligned to prevent conductor overlap, then route cabling with consistent clearances. This approach reduces wiring errors, speeds commissioning, and yields repeatable panel configurations across bays.
Vertical busbar segregation simplifies conductor routing, minimizes cross-talk, and reduces the risk of accidental shorts during maintenance. The result is improved electrical safety, quicker fault isolation, and more reliable operation of automation circuits. In practice, you’ll see shorter commissioning times and easier serviceability for multi-bay control cabinets, especially in IS2 enclosure environments.
Yes. EE2800 supports reference depths from 300 to 1000 mm and reference heights from 1400 to 2200 mm, with a net width of 220 mm and net height of 50 mm. This range allows flexible installation across a variety of IS2 enclosure configurations and control-board layouts, enabling scalable automation solutions without custom fabrication.
EE2800 carries a CE declaration, RoHS information with a dated RoHS compliance (20250108), and a REACH declaration (20250108). These certifications support regulatory compliance for global deployment, reduce the need for site-specific testing, and align with industry standards for divider panels within automation cabinets.
The EE2800 kit reduces installation time through flexible mounting options and a cleaner, modular design, which lowers labor costs and commissioning time. Vertical busbar segregation simplifies maintenance and fault isolation, reducing downtime. Over the product lifecycle, this translates to improved uptime, predictable budgeting, and easier expansions for evolving automation systems.
