ABB EE8041 Partition Panels - ETIM Divider Panel EC002525
Part Number: EE8041
Quick Summary
ABB EE8041 partition panels are horizontal divider panels designed for IS2 enclosures used in control and automation boards. Many engineers struggle with inconsistent partition fit, misalignment, and longer installation times when adding internal panels to existing cabinets. This solution supports CE conformity and RoHS and REACH declarations while aligning with ETIM EC002525 divider panel standards, helping you standardize cabinet internals across multiple lines. The kit offers a pre-assembled mounting option or a straightforward assembly path, improving interchangeability and serviceability. By using these panels, you can achieve cleaner cable routing, better airflow, and simplified maintenance, translating to lower downtime and higher production uptime.
Product Information
Extended Description

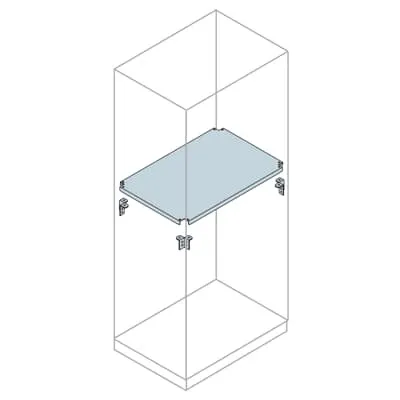

EE8041 ABB: Horizontal fixed partition panels 800x400mm (WxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
2. Horizontal partition panels
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
370 mm
Product Net Height
800 mm
Product Net Depth / Length
400 mm
Product Net Weight
4.070 kg
Reference Depth/Length
400 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
4.150 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Feature: Kit includes two horizontal partition panels pre-sized for 800x400 mm footprints. Benefit: Reduces field cutting and rework, accelerating upgrades and new installs in IS2 automation enclosures. Application: Ideal for control cabinet retrofits where space is tight and cable management is critical. Feature: Made from pickled steel sheet with robust rigidity. Benefit: Improves mechanical strength and corrosion resistance, lowering maintenance cycles and extending cabinet life in challenging environments. Application: Suitable for long-running production lines in harsh factory floors. Feature: Mounting Type offers Kit or Pre assembled options. Benefit: Enables fast swapping, easy upgrades, and consistent results across multi-line deployments. Application: Streamlines installations in multi-bay IS2 enclosures. Feature: Compliance and classification with RoHS, REACH, CE declarations, and ETIM EC002525. Benefit: Ensures regulatory adherence and supplier-standardized parts across procurement catalogs. Application: Reduces compliance risk and supports audit readiness in regulated manufacturing settings. Feature: Dimensions and weight—800 mm width, 400 mm depth, 4.070 kg net weight. Benefit: Predictable fit, simplified logistics, and accurate spare-part planning. Application: Planning for stock and maintenance in automation systems with standard enclosure footprints. Feature: Documentation and support—1STM604121R0006 installation instructions; 2024 IS2 Enclosures Technical Catalogue. Benefit: Clarity on installation steps and best practices, reducing training time. Application: Field teams can rapidly reference manuals during commissioning and service visits.
Get a Quick Quote for a ABB EE8041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE8041?
Enquire Now
FAQs
To install, verify the enclosure footprint is 800x400 mm and prepare mounting hardware per the 1STM604121R0006 manual. Use the kit with two partition panels, confirm alignment before securing, and follow advised torque values. This minimizes misalignment and reduces commissioning time on automation cabinets.
EE8041 is specifically designed for IS2 Enclosures for Automation, featuring an 800x400 mm footprint, pre-sized partition panels, and a 4.070 kg net weight. It uses pickled steel sheet material and is classified under ETIM EC002525, ensuring standardization across procurement and installation workflows.
EE8041 carries CE conformity with IS2, RoHS information and date of RoHS compliance, and a REACH declaration. It is also categorized under WEEE as not in the WEEE scope, and aligned with ETIM 8/9 EC002525 divider panel standards for consistent global compatibility.
Yes. EE8041 offers a kit or pre-assembled mounting option, enabling faster retrofits and easier upgrades across multiple enclosures. This modular approach reduces field assembly time, improves repeatable alignment, and simplifies spare-parts planning for maintenance teams in automation facilities.
Using EE8041 delivers faster installation, improved cable routing, and better airflow, reducing downtime during commissioning and service. Standardized partition panels help with multi-line scalability, regulatory compliance, and lower total cost of ownership through minimized field cutting and fewer reworks in control cabinets.
