ABB EE8061 Control Board - CE
Part Number: EE8061
Quick Summary
ABB EE8061 Control Board enables compact partitioning in IS2 automation enclosures for modular control panels. Engineers often face space constraints and costly reconfigurations when expanding or upgrading control cabinets. This solution ships with CE Declaration of Conformity, RoHS compliance, and REACH information to support safe, regulatory-compliant installations. The kit includes two horizontal partition panels and can be mounted as a kit or pre-assembled, accelerating deployment. By optimizing internal layout and enabling scalable expandsions, it delivers tangible business value through faster commissioning and improved maintenance workflows while staying aligned with IS2 enclosure standards and automation best practices.
Product Information
Extended Description

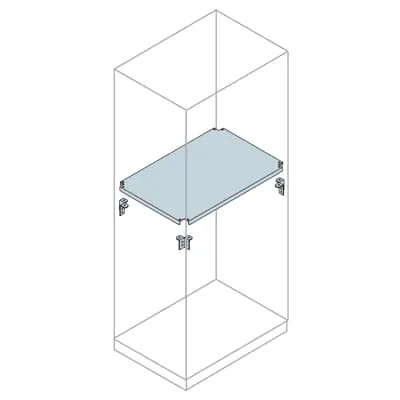

EE8061 ABB: Horizontal fixed partition panels 800x600mm (WxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
9. Partition panels
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B360
Material
Pickled steel sheet
Options Provided
2. Horizontal partition panels
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
570 mm
Product Net Height
800 mm
Product Net Depth / Length
600 mm
Product Net Weight
5.950 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
6.070 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002525 - Divider panel (enclosure/cabinet)
ETIM 9
EC002525 - Divider panel (enclosure/cabinet)
eClass
V11.1 : 27182102
Object Classification Code
U
Standards
See code for structure
Feature: Divider panel kit designed for ABB IS2 automation enclosures → Business Impact: Improves internal organization and thermal management, reducing heat hotspots and cable misrouting → Application: Partition control and automation boards in factory automation cabinets. Feature: Includes two horizontal partition panels → Business Impact: Accelerates installation and minimizes field labor costs, shortening time-to-operate → Application: Quick reconfigurations in growing control systems. Feature: Mounting Type Kit | Pre assembled → Business Impact: Flexible deployment options with reduced on-site assembly, lowering project risk → Application: OEM builds and retrofit projects where space is at a premium. Feature: Material Pickled steel sheet → Business Impact: Enhanced rigidity and durability in harsh environments, extending cabinet life → Application: Industrial environments requiring robust partition panels with corrosion resistance. Feature: Suitable For IS2 Enclosures for Automation → Business Impact: Ensures compatibility across ABB IS2 ecosystems, lowering integration challenges → Application: Automation control boards and standard IS2 enclosure configurations. Feature: RoHS and REACH compliance → Business Impact: Regulatory compliance reduces risk and simplifies supplier audits → Application: Enclosed control systems with safe material profiles and supply chain transparency. Feature: Reference dimensions 570 mm net width, 800 mm net height, 600 mm net depth; height options 1400–2200 mm → Business Impact: Clear fit guidance to prevent over- or under-sizing → Application: System design for modular expansion and scalable enclosure strategies.
Get a Quick Quote for a ABB EE8061
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EE8061?
Enquire Now
FAQs
The EE8061 kit is designed for quick, tool-assisted installation inside IS2 automation enclosures. It includes two horizontal partition panels and a pre-assembled mounting option, minimizing on-site assembly. Follow the IS2 enclosure guidelines and the included installation manual 1STM604121R0006 for sequence details and torque recommendations. This reduces commissioning time and supports repeatable, scalable layouts.
EE8061 uses a pickled steel sheet with a net width of 570 mm, net height of 800 mm, and net depth of 600 mm. It is designed for IS2 automation enclosures and accommodates reference heights from 1400 to 2200 mm. The kit includes two horizontal partition panels and is offered as either a mounting kit or a pre-assembled option, balancing ruggedness with installation flexibility.
Yes. EE8061 is specifically specified as suitable for IS2 Enclosures for Automation, providing a compatible partitioning solution for control and automation boards. The product supports standard IS2 configurations and helps maintain organized cable management and clear component separation within automation cabinets.
EE8061 carries a CE Declaration of Conformity and RoHS/REACH compliance information. The RoHS date is 20250108, and REACH information confirms no substances above 0.1 mass percentage. WEEE classification notes the product is not in WEEE scope, aiding regulatory assessments and disposal planning.
By enabling faster installation with a ready-made partition kit, EE8061 reduces field labor and commissioning time, improving project timelines. The robust pickled steel construction extends cabinet life in harsh environments, lowering replacement costs. Its defined compatibility with IS2 enclosures and available pre-assembled option also minimizes risk during retrofits and upgrades, delivering measurable TCO advantages over conventional custom partitions.
