ABB EF1051 Control and Automation Board - ETIM EC000211
Part Number: EF1051
Quick Summary
ABB EF1051 Control and Automation Board enables built-up cable entry solutions for AM2 cabinets in automation facilities. Shoppers often struggle with tight cable routing and space constraints that slow commissioning. This solution aligns with CE conformity IS2, RoHS information dated 20250108, and a REACH declaration to support regulatory compliance. The galvanized steel enclosure and pre-assembled mounting kit deliver reliable, durable performance in harsh environments. By combining robust mechanical design with standardized dimensions and accessory options, it reduces installation time while ensuring future scalability. For teams focused on reducing lifecycle costs, EF1051 also offers compatibility with IS2 Enclosures Technical Catalogue 2024, enabling straightforward spare-part sourcing and consistent maintenance across sites.
Product Information
Extended Description

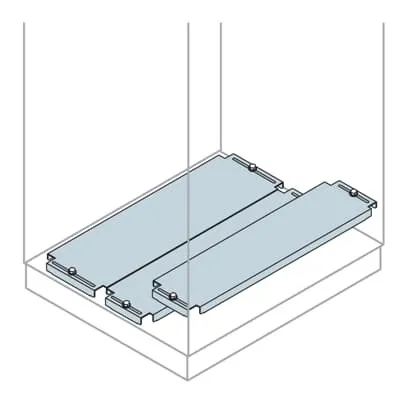

EF1051 ABB: Built-up Cable entry flanges 1000x500mm (HxD)
Suitable For
AM2 Cabinets
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
2. Built-up cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
199 mm
Product Net Height
1000 mm
Product Net Depth / Length
500 mm
Product Net Weight
3.510 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.580 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Galvanized steel construction provides corrosion resistance and long-term durability in demanding industrial environments, translating to lower maintenance costs and fewer field failures during cabinet upgrades or retrofits. This feature directly supports uptime goals and reduces total cost of ownership for control cabinets in manufacturing lines. The precise 199 mm net width, 1000 mm net height, and 500 mm net depth align with standard AM2 enclosures, simplifying layout planning and reducing the risk of fitment issues during installation. Built-up cable entry flanges (two IP40 options included) streamline cable routing, improve seal integrity, and minimize enclosure ingress, delivering tangible improvements in electrical safety and signal integrity. The pre-assembled mounting kit enables rapid deployment, cutting commissioning time and enabling faster project realization for machine builders. RoHS, REACH, and CE declarations reinforce regulatory compliance, supporting audits and supplier qualification. The lightweight yet sturdy 3.510 kg frame offers easy transport and handling while maintaining mechanical rigidity for field service. These attributes combine to support scalable cabinet programs and standardized spares across multiple sites, reducing procurement complexity and enabling consistent maintenance practices.
Get a Quick Quote for a ABB EF1051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF1051?
Enquire Now
FAQs
The EF1051 is designed for direct integration with AM2 cabinets using the pre-assembled mounting kit. With a 199 mm width, 1000 mm height, and 500 mm depth, it fits standard enclosure footprints. Ensure correct gland plate orientation and confirm compatibility with the 2 IP40 cable entry flange option to maintain enclosure integrity and meet ingress protection requirements.
Key specs include galvanized steel sheet construction, product net dimensions of 199 mm (width) by 1000 mm (height) by 500 mm (depth), and a net weight of 3.510 kg. It supports AM2 cabinets, is designed as a blind access device, and ships with a pre-assembled mounting kit and 4 cable entry flanges for streamlined installation.
Yes. EF1051 offers built-up cable entry flanges with IP40 protection as an available option, facilitating reliable cable management and enclosure sealing in typical control cabinet environments. This supports safer cable routing while preserving enclosure integrity against dust ingress, ideal for moderate indoor industrial applications.
EF1051 carries RoHS information with a RoHS date of 20250108 and a REACH declaration, including REACH information stating no substances above 0.1 mass percentage. This helps satisfy regulatory audits, supplier qualification, and customer expectations for material compliance in industrial automation projects.
EF1051 delivers accelerated installation through its pre-assembled mounting kit and standardized dimensions, reducing commissioning time and field labor costs. The robust galvanized steel construction ensures durability in harsh environments, while RoHS and REACH compliance simplifies regulatory approvals. The IP40 options and integrated cable entry flanges improve cable management, improving reliability and maintenance predictability across multiple sites.
