ABB EF1052 Control Board - CE
Part Number: EF1052
Quick Summary
ABB EF1052 is a control and automation board for AM2 cabinets and IS2 enclosures. Engineers often face cable-entry misalignment and enclosure compatibility challenges that slow deployment. This product carries CE conformity, RoHS compliance dated 20250108, and REACH declarations to help ensure regulatory readiness across regions. With galvanised steel construction and flexible mounting options—kit or pre-assembled—it enables faster commissioning, predictable gland plate alignment, and reliable operation in harsh factory environments. Designed for IS2 enclosures, AM2 cabinets and IP55 cable-entry configurations, it supports scalable automation projects while reducing total cost of ownership.
Product Information
Extended Description

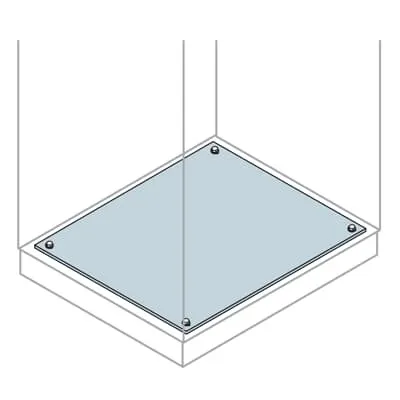

EF1052 ABB: Fixed Cable entry flanges 1000x500mm (WxD)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
3. Fixed cable entry flanges IP55
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
342 mm
Product Net Height
1000 mm
Product Net Depth / Length
500 mm
Product Net Weight
4.790 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
4.790 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature compatibility with AM2 Cabinets and IS2 Enclosures for Automation → Business impact: streamlines integration, reduces risk of mismatches and rework; Application: ideal for automation panel builds in process industries. Feature galvanised steel sheet construction → Business impact: provides durable, corrosion-resistant enclosures in dusty or humid factory floors; Application: harsh industrial environments and long-term installation. Feature Mounting Type: Kit | Pre assembled → Business impact: flexible deployment, faster field deployment and easier retrofits; Application: new builds and upgrades across machine cells. Feature 4 Cable entry flanges with IP55 option → Business impact: improved cable management and ingress protection; Application: outdoor or dirty environments requiring reliable seal integrity. Feature Dimensions and weight: Product Net Width 342 mm, Height 1000 mm, Depth 500 mm; Weight 4.790 kg → Business impact: predictable space planning and easier handling; Application: rack-mount planning and field installation. Feature Compliance: CE Declaration, RoHS (20250108), REACH Declaration → Business impact: regulatory readiness and smoother audits; Application: multi-regional deployments and supplier conformity. Feature Documentation: IS2 Enclosures Technical Catalogue 2024 data sheet and mounting instructions → Business impact: faster procurement and clear installation guidance; Application: engineering documentation and safety compliance.
Get a Quick Quote for a ABB EF1052
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF1052?
Enquire Now
FAQs
EF1052 supports mounting as a kit or pre-assembled unit, enabling flexible installation in AM2 cabinets and IS2 enclosures for automation. The unit includes four cable entry flanges (with IP55 option available) to simplify wiring and gland plate alignment, reducing installation time and field rework in machine control panels.
Key dimensions are 342 mm net width, 1000 mm net height, and 500 mm net depth, with a net weight of 4.790 kg. Packaging is one piece per order, with a similar gross weight. These specs support straightforward space planning and installation in standard enclosure footprints.
Yes. EF1052 is designed for IS2 enclosures and AM2 cabinets, featuring a blind design and compatibility with the IS2 automation enclosure family. It can be mounted as a kit or pre-assembled, providing reliable gland plate alignment and streamlined cabling for control and automation applications.
EF1052 includes a CE Declaration of Conformity, RoHS compliance dated 20250108, and a REACH declaration with corresponding date. It is categorized as not in the WEEE scope, supporting regulatory readiness across multiple regions and simplifying compliance during audits.
Installation guidance is supported by manuals and data sheets, including the IS2 Enclosures Technical Catalogue 2024 and mounting instructions (1STM604121R0006). These resources help with planning, wiring, and commissioning, reducing downtime and ensuring consistent installation practices across projects.
