ABB EF1053 Cable Entry Flanges - CE Declaration
Part Number: EF1053
Quick Summary
EF1053 cable entry flanges provide sliding cable entry points for automation cabinets, enabling tidy and protected cabling in AM2 cabinets and IS2 enclosures. This solution addresses common installation challenges such as space constraints, misalignments, and field cabling errors that slow projects. The kit aligns with essential certifications to support compliant deployments in industrial environments, including CE declarations of conformity, RoHS information dated 20250108, and REACH declarations. By offering a pre-assembled, ready-to-install accessory, it reduces commissioning time and minimizes on-site errors. For system integrators and panel builders, EF1053 delivers reliable cable management with consistent dimensions, improving maintenance access and long-term reliability in automation architectures.
Product Information
Extended Description

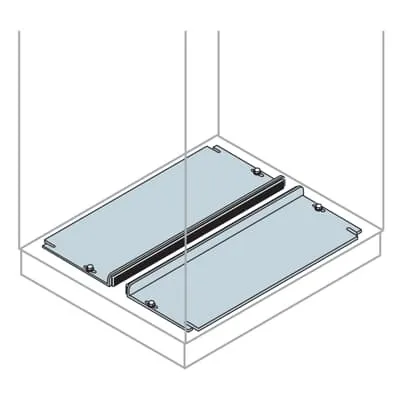

EF1053 ABB: Sliding Cable entry flanges 1000x500mm (WxD)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
120 mm
Product Net Height
23 mm
Product Net Depth / Length
830 mm
Product Net Weight
4.510 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
4.510 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Sliding flange design enables easy access to cabling paths while maintaining enclosure integrity, reducing labor time during panel wiring and enabling faster changes when layout updates occur. In practice, technicians install neatly routed cables within a 1000x500 mm footprint, improving signal integrity and reducing thermal hotspots in AM2 cabinets and IS2 enclosures. Feature → Business Impact → Application: Galvanized steel construction provides robust mechanical strength and corrosion resistance for harsh industrial environments, extending service life and lowering replacement costs in automation panels used in manufacturing lines. Feature → Business Impact → Application: Pre-assembled kit with four cable entry flanges minimizes field assembly errors and misfits, delivering predictable installation results and better project scheduling for system integrators. Feature → Business Impact → Application: RoHS and REACH compliance ensures regulatory alignment, eliminating late-stage compliance risk and supporting sustainable procurement strategies for global sites. Feature → Business Impact → Application: IP40-rated sliding flanges offer reliable protection for internal cabling while allowing flexible cable routing, improving enclosure protection with straightforward upgrade paths for evolving control architectures.
Get a Quick Quote for a ABB EF1053
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF1053?
Enquire Now
FAQs
EF1053 installation begins by aligning the pre-assembled flange kit with the cabinet wall, securing with the supplied fasteners, and routing cables through the four entry points. The sliding design allows micro-adjustment for neat bundles and reduces field wiring time, making it ideal for AM2 cabinet refurbishments and new builds.
The galvanized steel flanges offer mechanical robustness and IP40 protection for internal cables, supporting reliable operation in automation environments. By enabling clean routing and easier maintenance, EF1053 helps improve thermal performance and reduces troubleshooting time in live IS2 enclosure deployments.
Yes. EF1053 is designed for AM2 cabinets and IS2 enclosures, providing a compatible, pre-assembled solution for sliding cable entry. Its standard dimensions and mounting kit streamline integration across common ABB automation platforms, reducing engineering effort for mixed cabinet fleets.
EF1053 carries CE conformity with IS2 declarations, RoHS compliance dated 20250108, and REACH information. These certifications help ensure regulatory alignment for European implementations, support supplier qualification, and minimize compliance risk in regulated manufacturing environments.
By reducing installation time, minimizing field wiring errors, and improving cable management predictability, EF1053 lowers labor costs and accelerates commissioning. The durable galvanized steel construction also reduces replacement cycles, contributing to lower total cost of ownership over the life of the automation cabinet.
