ABB EF1060 Control and Automation Board - Sliding Flanges IP40
Part Number: EF1060
Quick Summary
ABB EF1060 Control and Automation Board is a compact, modular enclosure solution designed for automation cabinets and IS2 enclosure systems. This model addresses common pain points such as complex cable routing and space optimization during panel assembly. It carries CE conformity with a Declaration of Conformity and RoHS/REACH declarations, ensuring regulatory compliance for European manufacturing environments, and aligns with ETIM and eClass classifications for streamlined procurement. Designed to fit IS2 automation enclosures, it supports kit or pre-assembled mounting to accelerate installation. By combining robust galvanised steel construction with precise cable management options, this enclosure delivers reliable performance, reduced total cost of ownership, and faster time-to-value for industrial control applications.
Product Information
Extended Description

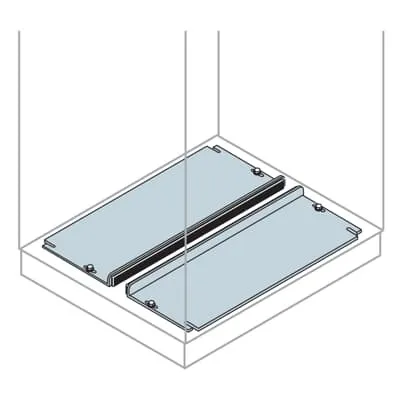

EF1060 ABB: Sliding Cable entry flanges 1000x600mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
180 mm
Product Net Height
33 mm
Product Net Depth / Length
825 mm
Product Net Weight
5.920 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
5.920 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Sliding cable entry flanges IP40 with four entries. Business impact: Improves cable management and sealing, reducing ingress risk and enabling tidier, safer panel layouts. Application: Automation control cabinets where neat routing and enclosure integrity are critical. The EF1060 supports IS2 Enclosures for Automation and is compatible with 1000 mm reference width and 600 mm reference depth configurations. Feature: Kit or pre-assembled mounting option. Business impact: Speeds up installation and minimizes field assembly errors, translating to lower commissioning time and labor costs. Application: Panel builds in OEM and system integrator environments. Feature: Galvanized steel sheet construction. Business impact: Delivers durable, corrosion-resistant performance in harsh industrial settings, extending service life. Application: Factory floors, outdoor or semi-outdoor control rooms where durability matters. Feature: Dimensions and weight (Reference Width 1000 mm, Reference Depth 600 mm, Height options 1400–2200 mm, Net weight 5.920 kg). Business impact: Predictable footprint and manageable weight for lift/install and space planning. Application: Customizable control panels with scalable height options. Feature: Compliance and standards (CE Declaration of Conformity, RoHS, REACH). Business impact: Reduces regulatory risk and supports sustainable manufacturing practices. Application: Any EU-compliant automation project requiring traceable material declarations. Feature: Mounting versatility (Kit | Pre assembled). Business impact: Flexible deployment to suit customer preferences and project timelines. Application: System integrators needing rapid deployment or bespoke panel assembly.
Get a Quick Quote for a ABB EF1060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF1060?
Enquire Now
FAQs
The EF1060 is specifically designed for IS2 Enclosures for Automation, supporting a 1000 mm reference width and 600 mm reference depth with height options from 1400 to 2200 mm. It integrates with kit or pre-assembled mounting, making it a seamless fit for IS2-based control cabinets and automation projects.
Key specs include galvanized steel sheet construction, four sliding cable entry flanges rated IP40, a reference width of 1000 mm, reference depth of 600 mm, and a net weight of 5.920 kg. Height is available in multiple configurations (1400–2200 mm) to match installation footprints.
Yes. The EF1060 carries a Declaration of Conformity CE, RoHS information with a 20250108 RoHS date, and REACH declarations, ensuring regulatory compliance and safer material usage in EU workplaces.
The EF1060 offers both kit and pre-assembled mounting options, plus four IP40 cable entry flanges. This combination supports quick field assembly or complete turnkey panel builds, helping reduce installation time and risk of errors.
Ideal for automation control panels and machine cabinets in manufacturing, process, and packaging environments. Its IS2 compatibility, durable galvanized steel chassis, and flexible height options make it a strong choice for scalable control systems requiring reliable cable management and regulatory compliance.
