ABB EF1080 Control Board - Sliding Flanges IS2 Enclosures
Part Number: EF1080
Quick Summary
ABB EF1080 is a control and automation board designed for IS2 enclosure systems, enabling reliable panel wiring and integration. Users often struggle with time-consuming field assembly and misaligned cable entries, which this kit directly addresses. The solution aligns with CE declarations for IS2 enclosures, RoHS compliance, and REACH information, ensuring regulatory peace of mind. By delivering a pre-assembled mounting kit with sliding cable-entry flanges, it also supports faster deployment, reduced error rates, and consistent cable management across automation projects. This combination of standards compliance and installation efficiency translates into meaningful business value for manufacturers, system integrators, and automation engineers seeking predictable lead times and cost control.
Product Information
Extended Description

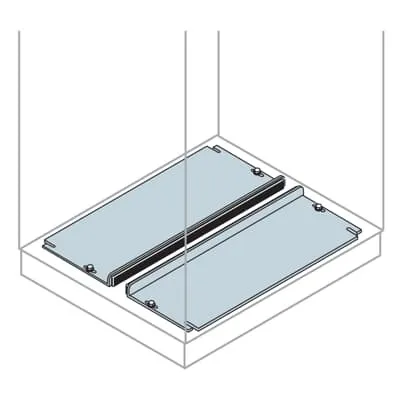

EF1080 ABB: Sliding Cable entry flanges 1000x800mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
280 mm
Product Net Height
1000 mm
Product Net Depth / Length
800 mm
Product Net Weight
8.740 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
8.740 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Sliding cable entry flanges enable cleaner, more accessible wiring paths. Business Impact: Reduces wiring complexity and installation time, lowering labor costs and installer fatigue. Application: Ideal for IS2 enclosures in control panels, packaging lines, and process automation. Feature: Kit | Pre assembled mounting supports rapid deployment. Business Impact: Minimizes on-site assembly steps, improves alignment accuracy, and accelerates commissioning. Application: Useful in new builds and panel upgrades where downtime must be minimized. Feature: Galvanized steel construction delivers durability. Business Impact: Enhanced corrosion resistance and long service life in harsh industrial environments, reducing maintenance cycles. Application: Enclosures subject to dust, moisture, and vibration in manufacturing plants. Feature: 4. Cable entry flanges with IP40 option provides flexible ingress protection. Business Impact: Simplifies cable routing while meeting essential protection levels, lowering gasket replacement needs. Application: Machinery cabinets with multiple cable runs and frequent reconfiguration. Feature: RoHS and REACH compliance plus CE declaration of conformity IS2. Business Impact: Ensures regulatory adherence, supports supplier qualifications, and simplifies audits. Application: Regulatory-compliant automation panels used in regulated industries. Feature: Weight and dimensions—Product Net Width 280 mm, Height 1000 mm, Depth 800 mm; Weight 8.740 kg. Business Impact: Clear packaging and compatibility planning, enabling accurate space allocation and shipping estimates. Application: System design reviews and enclosure selection for IS2 installations. Feature: Compatibility with IS2 Enclosures for Automation and pre-assembled mounting ease. Business Impact: Improves install predictability and reduces field engineering hours. Application: Panel fabrication projects seeking standardization and repeatable results.
Get a Quick Quote for a ABB EF1080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF1080?
Enquire Now
FAQs
Yes. EF1080 is designed specifically for IS2 Enclosures for Automation and ships as a mounting kit with pre-assembled components, ensuring straightforward integration with ABB enclosure accessories and standard IS2 mounting footprints. This compatibility reduces adapter needs and minimizes risk during install and commissioning.
The EF1080 offers a product net width of 280 mm, net height of 1000 mm, and net depth of 800 mm, with a typical weight of 8.740 kg. It uses galvanised steel sheet, providing robust rigidity for panel assemblies and predictable handling in logistics and installation.
Ideal for automation panels in manufacturing lines, packaging equipment, and process control systems that require reliable cable entry management. Its IS2 enclosure compatibility and sliding flange design support efficient wiring layouts, contributing to shorter downtime during upgrades and smoother factory floor integration.
EF1080 carries a CE Declaration of Conformity for IS2, supports RoHS compliance information, and provides REACH declarations. It is designed to align with environmental and safety regulations, while the WEEE status indicates the product’s scope in electronics lifecycle management.
By delivering a pre-assembled mounting kit with sliding cable entry flanges and a durable galvanized steel construction, EF1080 reduces on-site assembly time and rework. The predictable dimensions and established IS2 compatibility also minimize design changes, leading to lower field labor costs and shorter project cycles.
