ABB EF1081 Control and Automation Board - IS2 Enclosures for Automation
Part Number: EF1081
Quick Summary
EF1081 control and automation board is a rugged enclosure solution for IS2 automation panels. Engineers often struggle with cable routing, mounting complexity, and maintaining regulatory compliance as projects scale. This model offers CE conformity, RoHS and REACH declarations, and IP40-rated cable entry flanges to simplify safety and compliance. With pre-assembled mounting options and galvanized steel construction, it reduces installation time, minimizes field wiring errors, and lowers total cost of ownership for automation deployments. Its IS2 enclosure compatibility ensures seamless integration with ABB and partner components across control and automation workflows. In practice, electricians and engineers gain faster commissioning, better cable management, and predictable performance in harsh industrial environments.
Product Information
Extended Description

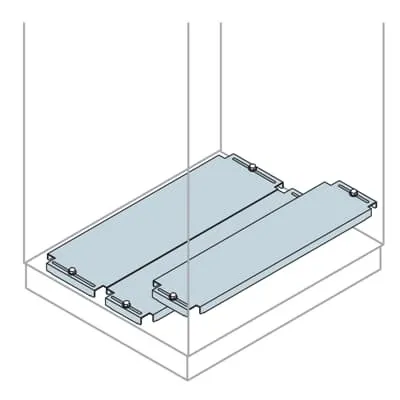

EF1081 ABB: Built-up Cable entry flanges 1000x800mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
2. Built-up cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
200 mm
Product Net Height
1000 mm
Product Net Depth / Length
800 mm
Product Net Weight
7.010 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
7.150 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Built-up cable entry flanges with IP40 protection. Business Impact: Simplifies cable routing, reduces ingress risk, and accelerates wiring during panel assembly. Application: Ideal for IS2 Enclosures for Automation where clean, protected cable ingress is required. Feature: Galvanized steel sheet construction. Business Impact: Delivers corrosion resistance and long-term durability in harsh environments. Application: Suitable for outdoor and factory-floor control cabinets exposed to dust and humidity. Feature: Mounting Type Kit | Pre assembled. Business Impact: Cuts on-site labor, halves assembly time, and minimizes field wiring mistakes. Application: Quick deployment in automotive, process, and manufacturing automation projects. Feature: Defined dimensions and weight (Product Net Height 1000 mm, Net Depth 800 mm, Net Width 200 mm; 7.010 kg). Business Impact: Enables precise fit in existing rack systems and predictable weight for handling and mounting. Application: Supports standard mounting rails and space planning in control rooms. Feature: Compliance and documentation (CE Declaration of Conformity IS2, RoHS, REACH, WEEE notes). Business Impact: Reduces regulatory risk and accelerates procurement with clear certifications. Application: Suitable for audits and supplier qualification in regulated industrial environments. Feature: Installation support (Instructions and Manuals 1STM604121R0006). Business Impact: Improves onboarding, reduces commissioning time, and ensures correct assembly. Application: Critical for new project startups and maintenance teams.
Get a Quick Quote for a ABB EF1081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF1081?
Enquire Now
FAQs
EF1081 is designed as a pre-assembled mounting kit for IS2 Enclosures for Automation, ensuring a seamless fit with ABB IS2 components. It supports standard mounting and gland plate alignment, reducing field modification needs and speeding up panel assembly while maintaining robust protection.
Key specifications include Product Net Height of 1000 mm, Product Net Depth of 800 mm, Product Net Width of 200 mm, and a Net Weight of 7.010 kg. Reference height options range from 1400 to 2200 mm, with a reference width of 1000 mm, supporting varied cabinet configurations.
Yes. EF1081 uses galvanized steel and IP40-rated built-up cable entry flanges, providing durable protection against dust and moisture. Its IS2 enclosure compatibility and CE/RoHS/REACH declarations make it well-suited for industrial automation control panels in manufacturing and process environments.
EF1081 includes a CE Declaration of Conformity IS2, RoHS information with a 20250108 RoHS date, and a REACH declaration with a 20250108 REACH date. WEEE category indicates the product is not in WEEE scope, and ETIM/eClass classifications support procurement.
The pre-assembled mounting approach reduces installation and commissioning time, lowering labor costs. Durable galvanized steel and protected cable entry flanges minimize maintenance needs and replacements, while clear installation manuals (1STM604121R0006) help prevent wiring errors and extend cabinet life in automation deployments.
