ABB EF4050 Control and Automation Board - Sliding Flanges IP40
Part Number: EF4050
Quick Summary
The ABB EF4050 is a control and automation board designed for IS2 enclosures used in automation systems. Many projects struggle with cluttered cable management, nonstandard mounting, and slow commissioning in modern control cabinets. This solution delivers a pre-assembled kit with a sliding flange design, helping teams deploy cleaner layouts with fewer field adjustments. It carries a CE Declaration of Conformity and RoHS/REACH compliance, aligning with regulatory expectations for automation cabinets. In addition, its IS2 enclosure compatibility and ETIM classifications support streamlined procurement and maintenance. For integrators and OEMs, EF4050 offers a clear path to scalable enclosure solutions while reducing total cost of ownership through faster installation and reliable cable entry.
Product Information
Extended Description

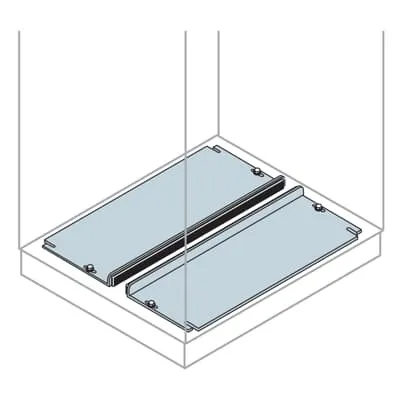

EF4050 ABB: Sliding Cable entry flanges 400x500mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
155 mm
Product Net Height
400 mm
Product Net Depth / Length
500 mm
Product Net Weight
1.260 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.260 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Sliding flange design enables compact, neat cable routing and reduces mid-install adjustments. Business impact: Accelerates panel assembly and improves reliability by minimizing cable strain, resulting in fewer field service calls. Application: Ideal for IS2 automation enclosures in manufacturing lines where space is constrained and clean wiring is critical. Feature: Kit form with pre-assembled mounting simplifies installation. Business impact: Cuts on-site labor and risk of misalignment, lowering project downtime. Application: Suitable for OEM and system integrator projects with tight schedules. Feature: Material is galvanized steel, delivering corrosion resistance in harsh industrial environments. Business impact: Prolongs enclosure life and lowers maintenance costs in dirty or humid facilities. Application: Food & beverage, water treatment, and process automation environments. Feature: IP40 capability and sliding cable entry flanges provide controlled ingress protection. Business impact: Ensures dependable operation in non-harsh exterior exposure scenarios while maintaining compliance. Application: Internal cabinet use where moderate protection is sufficient. Feature: RoHS, REACH compliance and CE declaration support regulatory alignment. Business impact: Mitigates compliance risk, simplifying audits and customer approvals. Application: Global automation projects with strict supplier standards. Feature: Weight and footprint details enable accurate planning and logistics. Business impact: Improves shipping efficiency and on-site handling. Application: Warehouse planning and installation sequencing for IS2 enclosures.
Get a Quick Quote for a ABB EF4050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF4050?
Enquire Now
FAQs
EF4050 is designed specifically for IS2 enclosures used in automation. It uses a sliding flange design and a pre-assembled mounting kit, ensuring straightforward integration with ABB IS2 systems. Expect clean cable management, reduced field modifications, and reliable panel performance when pairing with compatible ABB enclosure families.
Key specs include a 400x500 mm footprint, galvanized steel construction, weight of 1.260 kg, and IP40 protection. The kit is pre-assembled for quick installation and includes sliding cable entry flanges. Material and build support long-term durability in typical automation environments while enabling organized cabling and maintenance access.
EF4050 provides galvanised steel construction and IP40 protection, making it suitable for internal cabinet use in standard automation setups. For harsher environments, consider additional enclosure protection or a higher IP rating, but the sliding flange design itself supports reliable cable management and quick upgrades within IS2-based cabinets.
EF4050 carries a CE Declaration of Conformity and RoHS compliance with a corresponding RoHS date of 20250108, along with REACH declarations. It aligns with ETIM classifications and is noted in the IS2 Enclosures Technical Catalog. These certifications help support regulatory compliance and supplier qualification in global automation projects.
Using EF4050, with its pre-assembled mounting and sliding flange approach, typically reduces installation time by limiting现场 adjustments and simplifying cable entry. The robust galvanized steel construction minimizes future maintenance, contributing to lower total cost of ownership while delivering faster commissioning and improved cabinet reliability.
