ABB EF4052 Control and Automation Board - CE Certified
Part Number: EF4052
Quick Summary
EF4052 is a control and automation board designed for IS2 enclosures and automation cabinets. Engineers often struggle with pre-assembled solutions that fit varied enclosure heights and cable routing requirements. This kit arrives as a pre-assembled mounting solution with fixed cable entry flanges IP55, and its galvanized steel construction withstands harsh shop and plant environments. With CE conformity, RoHS compliance, and REACH information, it meets critical regulatory requirements while supporting long-term reliability. The product is compatible with IS2 enclosures across heights from 1400 to 2200 mm, delivering scalable, cost-efficient expansion and simpler procurement.
Product Information
Extended Description

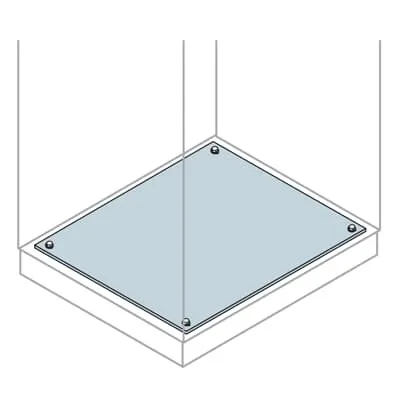

EF4052 ABB: Fixed Cable entry flanges 400x500mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
3. Fixed cable entry flanges IP55
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
233 mm
Product Net Height
400 mm
Product Net Depth / Length
500 mm
Product Net Weight
1.340 kg
Reference Depth/Length
500 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.340 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit eliminates on-site guesswork and misalignment. Benefit: Reduces installation time and risk, accelerating project timelines while improving mount accuracy in busy automation cells. Application: Suitable for IS2 enclosure systems in mid to large-scale plants. Feature: Fixed cable entry flanges with IP55 protection. Benefit: Delivers robust ingress protection and tidy cable routing, lowering field wiring errors and maintenance needs. Application: Harsh environments, outdoor cabinets, or damp plant floors where reliability matters. Feature: Galvanized steel sheet construction. Benefit: Provides corrosion resistance and sturdy mechanical protection, extending cabinet life in aggressive industrial settings. Application: General purpose automation installations subject to dust, humidity, and temperature cycling. Feature: Compatibility with IS2 enclosure heights from 1400 to 2200 mm. Benefit: Enables scalable, modular procurement and uniform assemblies across multiple project sizes. Application: Configurable automation architectures where future expansions are planned. Feature: Regulatory compliance (CE, RoHS, REACH). Benefit: Reduces audit risk and accelerates onboarding of new systems into regulated facilities. Application: Projects requiring traceable declarations and safe material data, aligning with corporate sustainability goals.
Get a Quick Quote for a ABB EF4052
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF4052?
Enquire Now
FAQs
EF4052 ships as a pre-assembled mounting kit with four fixed cable entry flanges (IP55) and CE/RoHS compliant components. Start by verifying enclosure height against the height options, align the mounting plates, and attach the module using the included fasteners. Refer to installation manual 1STM604121R0006 for step-by-step procedures and safety notes to avoid misalignment or strain on cables.
Yes. EF4052 is designed for IS2 enclosures and supports reference heights of 1400, 1600, 1800, 2000 and 2200 mm, with a fixed width of 400 mm and net width 233 mm. The 500 mm depth matches standard automation cabinet footprints, enabling consistent assembly across multiple projects.
EF4052 carries a CE Declaration of Conformity for IS2, RoHS information, and REACH information with dates listed as 20250108, plus a WEEE category of Product Not in WEEE Scope. These certifications help ensure regulatory compliance in industrial plants and simplify audit processes.
The pre-assembled kit reduces on-site wiring errors and installation time, while fixed IP55 cable entries reduce ingress risk and simplify cable routing. Galvanized steel construction offers corrosion resistance in harsh environments, and the option to pre-assemble minimizes field workmanship, improving overall reliability and lifecycle maintenance.
Support resources include the IS2 Enclosures Technical Catalogue 2024 for technical specifications, the data sheet, and the installation manual 1STM604121R0006. ETIM gland plate reference EC000211 and RoHS/REACH declarations are also available to support audits, compliance, and ongoing maintenance planning.
