ABB EF4063 Control and Automation Board - IP55
Part Number: EF4063
Quick Summary
ABB EF4063 is a control and automation board designed for IS2 enclosures used in industrial automation. This solution targets the persistent challenge of maintaining cable management and enclosure integrity in demanding environments. It carries CE Declaration of Conformity IS2, RoHS compliance with a 2025-01-08 RoHS date, and REACH compliance, including a declaration that it does not contain substances above thresholds. The galvanised steel construction paired with a pre-assembled mounting kit delivers a reliable, scalable solution for panel builders. With IS2 enclosures as the backbone, EF4063 supports robust automation deployments while aligning with industry standards and evolving compliance needs in business-critical equipment.
Product Information
Extended Description

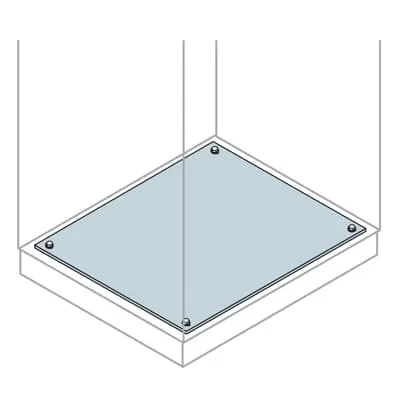

EF4063 ABB: Fixed Cable entry flanges 400x600mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
3. Fixed cable entry flanges IP55
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
230 mm
Product Net Height
400 mm
Product Net Depth / Length
600 mm
Product Net Weight
1.740 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.740 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Galvanized steel sheet construction provides corrosion resistance and durable protection in harsh factory conditions. Business Impact: Extends service life, lowers maintenance costs, and reduces replacement cycles for industrial enclosure solutions. Application: Ideal for long-term control and automation board installations in automated production lines. Feature: Four fixed cable entry flanges with IP55 option enhances sealing and cable management. Business Impact: Improves ingress protection, minimizes dust and water ingress, and simplifies wiring layouts for scalable automation projects. Application: Suitable for control panels in moisture-prone environments and where reliable cabling is essential. Feature: Kit | Pre assembled mounting type speeds installation and reduces on-site labor. Business Impact: Cuts commissioning time, lowers field labor costs, and accelerates time-to-value for automation projects. Application: Fits IS2 enclosure configurations where rapid deployment is required. Feature: Compact product net dimensions with defined reference heights (230 mm width, 400 mm height, 600 mm depth) and total weight of 1.740 kg. Business Impact: Frees up panel space while maintaining robust structural integrity, enabling easier integration with other automation modules. Application: Beneficial for OEMs designing modular control panels. Feature: Compliance suite including CE, RoHS, and REACH with WEEE considerations. Business Impact: Mitigates regulatory risk, simplifies procurement, and supports environmental and safety commitments. Application: Essential for regulated environments and customers requiring traceable declarations. Feature: Compatibility with ETIM EC000211 gland plate and eClass 27142421 classifications. Business Impact: Improves data accuracy for parts catalogs and supports seamless integration with procurement systems. Application: Helpful for distributors and engineering teams mapping enclosure components to BOMs.
Get a Quick Quote for a ABB EF4063
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF4063?
Enquire Now
FAQs
To install EF4063, begin by aligning the kit in the IS2 enclosure as a pre assembled mounting option. Secure the backplate, route cables through the IP55-rated flanges, and connect per the manual 1STM604121R0006. The process minimizes field wiring complexity and reduces installation time while ensuring enclosure integrity.
EF4063 features galvanized steel construction, product net width 230 mm, net height 400 mm, net depth 600 mm, and a weight of 1.740 kg. It includes four fixed cable entry flanges (IP55 option) and is designed for IS2 enclosures for automation, with mounting kit options for pre-assembled installation.
Yes. The EF4063 carries the CE Declaration of Conformity IS2, RoHS information with a date of 20250108, and REACH declaration. It specifies REACH information indicating no substances above 0.1 mass percent, supporting compliance in regulated industrial settings.
EF4063 is designed for IS2 enclosures used in automation, offering a reliable control and automation board platform. It supports 4 cable entry flanges and a pre assembled kit, making it ideal for control panels in process automation, packaging lines, and factory floor automation where durable enclosure solutions are required.
The galvanized steel construction resists corrosion, reducing maintenance cycles and replacement costs. The IP55 cable entry option enhances protection, lowering ingress-related failures. Pre assembled mounting reduces installation time, improving project ROI, while CE RoHS REACH compliance simplifies procurement and regulatory readiness for automation projects.
