ABB EF4810 Control and Automation Board - CE/IS2
Part Number: EF4810
Quick Summary
EF4810 is an ABB Control and Automation Board designed for IS2 enclosure systems, delivering a robust, modular solution for automation projects. It supports a W800 x H1400 x D800 footprint, with a modular base plate and a single cable entry flange to simplify wire routing. A common challenge in panel builds is balancing rigidity with future expandability; EF4810 meets this with kit or pre-assembled mounting, galvanized steel construction, and a lightweight 0.9 kg net weight for easy handling during installation. The solution carries CE conformity along with RoHS and REACH declarations, reducing compliance risk. By pairing with IS2 enclosures, engineers accelerate assembly, improve serviceability, and future-proof control and automation boards within evolving plant architectures.
Product Information
Extended Description

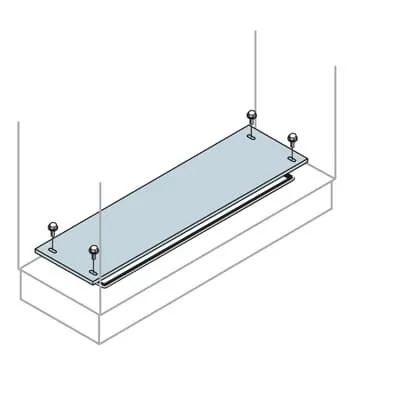

EF4810 ABB: Mod. Sing. 1 cable flange W=800
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Modular
Accessory Type
5. Modular base plate
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
3. Single bottom plate for cable entry flange
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
15 mm
Product Net Depth / Length
602 mm
Product Net Weight
0.9 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.9 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Standards
See code for structure
Feature → Business Impact → Application: Modular design with a modular base plate enables rapid customization and reconfiguration in automation panels, reducing change orders and downtime. Application: IS2 enclosures in auto-assembly lines benefit from quicker wiring and layout optimization. Feature → Business Impact → Application: Galvanized steel sheet construction delivers robust corrosion resistance and long service life in harsh environments, lowering replacement costs and maintenance intervals. Application: Panel housings in manufacturing cells endure dust, humidity, and cleaning cycles. Feature → Business Impact → Application: Kit or pre-assembled mounting options provide installation flexibility, enabling on-site choice to fit project timelines and resource availability. Application: New builds and retrofit projects across automotive and process industries. Feature → Business Impact → Application: Single bottom plate for cable entry flange improves cable management and routing efficiency, reducing installation errors and commissioning time. Application: Control cabinets for IS2 automation enclosures. Feature → Business Impact → Application: CE, RoHS, and REACH declarations streamline compliance, audit readiness, and supplier due diligence. Application: Global deployments with strict regulatory requirements. Feature → Business Impact → Application: Lightweight 0.9 kg net weight supports safer handling and quicker panel assembly. Application: Space-constrained control panels where weight reduction speeds up installation.
Get a Quick Quote for a ABB EF4810
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF4810?
Enquire Now
FAQs
EF4810 supports both kit and pre-assembled mounting configurations, allowing quick deployment on site. The modular base plate and single bottom plate for cable entry flange simplify wiring layouts, enabling technicians to adapt the enclosure to evolving control architectures without extensive rework.
The EF4810 is designed for a footprint of W 800 mm, H 1400 mm, D 800 mm. It features a compact net profile with a product net width of 100 mm, net height of 15 mm, and net depth of 602 mm, with a net weight of 0.9 kg, supporting easy handling and installation in space-constrained panels.
Yes. The EF4810 is specified for IS2 Enclosures for Automation and is intended for Control and Automation Board applications. Its modular design, galvanised steel construction, and compatibility with modular base plates support scalable control solutions in factory automation, packaging lines, and process control panels.
EF4810 carries CE conformity and RoHS/REACH declarations with REACH information stating no substances above 0.1 mass percentage. The product aligns with IS2 enclosure standards and is documented in the IS2 Enclosures Technical Catalogue 2024, aiding regulatory audits and supplier qualification.
The EF4810 reduces commissioning time through standardized mounting, plug-and-play compatibility with IS2 enclosures, and improved cable management via the bottom flange option. Its modular design supports future upgrades with minimal panel rework, delivering lower lifecycle costs, faster deployment, and a clearer upgrade path for evolving automation tasks.
