ABB EF6010 Control and Automation Board - CE IS2
Part Number: EF6010
Quick Summary
ABB EF6010 is a control and automation board for IS2 enclosures used in automation cabinets. Engineers often wrestle with tight space, cable routing, and slow commissioning; this kit streamlines installation with a pre-assembled mounting approach and ready-made cable entry options. It carries CE conformity, RoHS compliance, and REACH declarations, plus ETIM gland-plate classification to simplify sourcing and regulatory alignment. The galvanized steel construction and IP40-ready cable entry features support reliable, scalable control cabinet performance while enabling efficient procurement and maintenance across automation projects.
Product Information
Extended Description

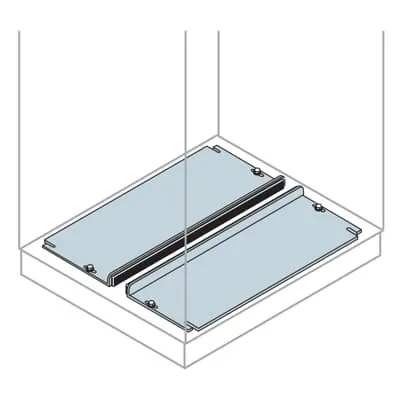

EF6010 ABB: Sliding Cable entry flanges 600x1000mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
385 mm
Product Net Height
600 mm
Product Net Depth / Length
1000 mm
Product Net Weight
5.680 kg
Reference Depth/Length
1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
5.680 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature sliding flange design → Business Impact: Simplified cable routing and faster initial assembly reduce commissioning time and labor costs. Application: Ideal for IS2 automation enclosures where space is constrained and tidy cabling matters. Long-tail keywords addressed: sliding flange IS2, IS2 enclosure cable management.Feature kit | pre assembled mounting → Business Impact: Quick, plug-and-play installation with minimal field modification, improving project timelines and reducing on-site risk. Application: Suitable for turnkey automation cabinet builds where standardization matters.Feature galvanized steel sheet construction → Business Impact: Enhanced durability and corrosion resistance in harsh industrial environments lower maintenance costs and extend service life. Application: Industrial automation cabinets exposed to dust, moisture, or corrosion-prone settings.Feature RoHS and REACH compliance → Business Impact: Regulatory alignment across global supply chains reduces compliance risk and procurement delays. Application: Global manufacturing environments requiring traceable material declarations.Feature cable entry flanges IP40 → Business Impact: Reliable ingress protection for cabling without excessive sealing complexity, enabling cleaner layouts. Application: Control enclosures that require modular cable management with protection.Feature dimensions and weight details → Business Impact: Accurate planning for mounting space and load capacity avoids rework and ensures safe enclosure integration. Application: System integrators designing control panels around 385 mm net width, 600 mm net height, and 1000 mm net depth.
Get a Quick Quote for a ABB EF6010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF6010?
Enquire Now
FAQs
EF6010 ships as a kit with a pre-assembled mounting arrangement and sliding cable entry flanges (IP40). To install, align the kit to the IS2 enclosure frame, secure using standard mounting holes, and connect through the gland plate EC000211 as applicable. Refer to the installation manual 1STM604121R0006 for step-by-step guidance and ensure compliance with CE/IS2 requirements.
Key specs include product net width 385 mm, net height 600 mm, and net depth 1000 mm, with a weight of 5.680 kg. Material is galvanized steel, designed for IS2 automation enclosures with a pre-assembled mounting kit. The product supports reference heights from 1400 to 2200 mm and reference width options of 600 or 1200 mm to fit a range of cabinet configurations.
Yes. EF6010 is specifically designed for IS2 Enclosures for Automation. It provides a robust control and automation board kit with a pre-assembled mounting arrangement and sliding cable entry flanges, making it suitable for factory automation cabinets that demand reliable cable management and fast deployment.
EF6010 carries CE Declaration of Conformity for IS2 enclosures, RoHS compliance with date 20250108, and REACH declarations. It is also categorized under WEEE as Product Not in WEEE Scope and aligns with ETIM classifications EC000211 for gland plates, supporting regulatory and procurement requirements across regions.
The pre-assembled mounting kit and sliding flange design reduce installation time and field labor, cutting commissioning costs. The galvanized steel construction offers durable, corrosion-resistant performance, lowering maintenance frequency. Regulatory declarations (CE, RoHS, REACH) streamline compliance audits, while standardization with ETIM gland plates simplifies sourcing and future upgrades.
