ABB EF6011 Control Board - IS2 Enclosures IP40
Part Number: EF6011
Quick Summary
The ABB EF6011 control board streamlines automation setups inside IS2 enclosures for industrial panels. It tackles wiring chaos and retrofit delays by providing a defined 600x1400 mm footprint and a ready-to-install kit. This solution carries CE conformity with RoHS and REACH compliance, and features IP40-rated cable entry flanges for protection. Engineered from galvanized steel for robustness, it integrates with IS2 mounting options, reducing installation time and lifecycle costs. By combining a built-up cable entry option with a kit or pre-assembled mounting, technicians gain repeatable assembly and easier maintenance across multiple projects. The product’s specification and references, including ETIM classifications and the IS2 catalogue, support accurate sourcing and BOM alignment for procurement teams.
Product Information
Extended Description

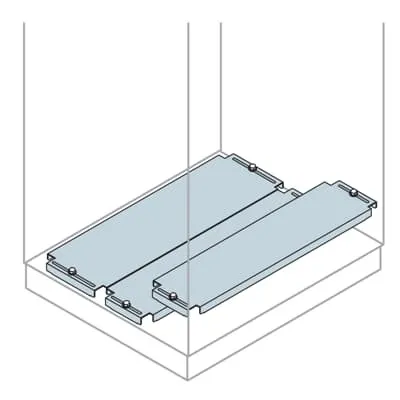

EF6011 ABB: Built-up Cable entry flanges 600x1000mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
2. Built-up cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
200 mm
Product Net Height
600 mm
Product Net Depth / Length
1000 mm
Product Net Weight
4.690 kg
Reference Depth/Length
1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
4.790 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Galvanized steel construction delivers corrosion resistance and long-term durability in harsh plant environments, reducing maintenance downtime and replacement costs. Business Impact: Lower total cost of ownership and higher panel reliability in production lines. Application: Suitable for automation control cabinets in factories where moisture, dust, or chemicals are present. Feature: IS2 enclosure compatibility and 600x1400 mm footprint enable optimized layout planning, cleaner airflow, and easier component integration. Business Impact: Improves space utilization and simplifies retrofits, shortening project timelines. Application: New builds or refurbishments of automation panels across manufacturing facilities. Feature: Kit or pre-assembled mounting options provide deployment flexibility. Business Impact: Faster commissioning and repeatable installation, reducing field labor and error rates. Application: Large-scale IS2 projects and multi-site deployments. Feature: Four built-up cable entry flanges with IP40 protection support orderly cabling and secure ingress sealing. Business Impact: Enhanced cable management, reduced wiring mistakes, and improved environmental protection. Application: Control and automation boards in demanding environments. Feature: Documented compliance and standards including CE Declaration, RoHS, and REACH information. Business Impact: Regulatory alignment reduces compliance risk and procurement friction. Application: Industries with strict regulatory requirements and supplier audits. Feature: Galvanized steel construction paired with industry-standard IS2 mounting options. Business Impact: Robust, long-life infrastructure that withstands vibrations and mechanical stress in automation applications. Application: Panel builders seeking durable enclosures for automation components.
Get a Quick Quote for a ABB EF6011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF6011?
Enquire Now
FAQs
EF6011 is designed for IS2 enclosures and offers both a kit and a pre-assembled mounting option. Begin by aligning the enclosure kit to the IS2 frame, secure with the included hardware, then route cables through the four built-up IP40 cable entry flanges. Refer to 1STM604121R0006 for manuals and follow standard wiring practices to ensure a clean, repeatable installation.
The product outer footprint is 600 mm (W) x 1400 mm (H) x 1000 mm (D), with net dimensions of 200 mm (W) x 600 mm (H) x 1000 mm (D). Net weight is 4.690 kg, and packaged weight is 4.790 kg. These figures help sizing, stacking, and BOM planning for automation cabinets.
Yes. EF6011 is a control and automation board kit designed specifically for IS2 Enclosures for Automation. Its galvanized steel construction, IP40 cable entries, and compatibility with IS2 mounting options make it ideal for robust automation panels in demanding industrial settings.
EF6011 carries CE conformity with a Declaration of Conformity for IS2, RoHS compliance, and REACH information (with a 20250108 REACH date). It also references WEEE categorization and ETIM eClass classifications, supporting regulatory audits and component sourcing.
By simplifying wiring through 4 integrated cable entry flanges, providing a defined footprint, and offering kit or pre-assembled mounting, EF6011 reduces installation time, minimizes field errors, and lowers lifecycle maintenance costs. The result is faster commissioning, fewer reworks, and improved uptime for automation lines.
