ABB EF6040 Control Board Sliding Flange CE Declaration
Part Number: EF6040
Quick Summary
The ABB EF6040 Control Board enables modular automation enclosures for AM2 cabinets and IS2 enclosures. Manufacturers often struggle with misaligned cable entries and retrofit compatibility when upgrading panels in complex industrial lines. This product carries CE declarations, RoHS compliance, and REACH information to support global regulatory alignment. Designed as a pre-assembled kit with sliding cable entry flanges, it minimizes field errors and accelerates panel installation. The solution also offers robust galvanised steel construction and scalable dimensions to reduce stocking diversity and simplify procurement. With compatibility for AM2 and IS2 systems, it supports standard reference widths of 600 mm and 1200 mm, and heights from 1400 to 2200 mm, enabling fast, predictable project delivery.
Product Information
Extended Description

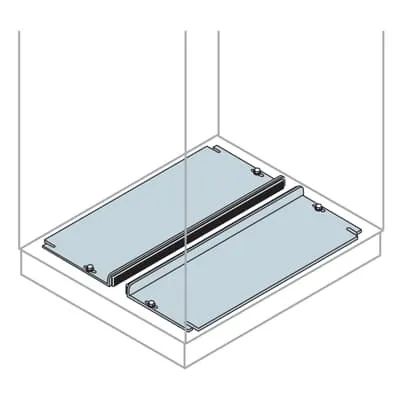

EF6040 ABB: Sliding Cable entry flanges 600x400mm (WxD)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
70 mm
Product Net Height
28 mm
Product Net Depth / Length
430 mm
Product Net Weight
1.610 kg
Reference Depth/Length
400 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.610 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature → Business Impact → Application: Sliding flange design simplifies cable routing and reduces enclosure modification time, delivering measurable installation efficiency on factory floors and reducing commissioning windows for automated lines. Application: AM2 cabinets and IS2 enclosures for automation benefit from faster wiring junctions and cleaner cable management in machine builds. Feature → Business Impact → Application: Kit or pre-assembled mounting options cut field assembly costs and minimize human error during panel assembly, improving project profitability and scheduling reliability. Application: Panel shops and OEMs performing large-scale deployments gain repeatable installations with reduced on-site adaptation. Feature → Business Impact → Application: Galvanized steel construction provides durability in harsh environments, improving long-term maintenance intervals and total cost of ownership. Application: Industrial enclosures exposed to dust and incidental moisture in IS2 environments. Feature → Business Impact → Application: Sliding cable entry flanges IP40 option offers protected wiring interfaces, enhancing reliability of power and control cables in dense panel layouts. Application: Compact control panels in limited spaces for automation lines. Feature → Business Impact → Application: Precise dimensions and reference sizes (70 mm net width, 28 mm net height, 430 mm net depth; 600x400 mm reference footprint) enable standardization across multiple SKUs, reducing purchasing complexity. Application: Global projects requiring consistent enclosure footprints across regions. Feature → Business Impact → Application: RoHS, REACH, and CE declarations guarantee regulatory compliance, reducing risk during audits and cross-border sales. Application: Global manufacturing deployments with strict environmental and safety requirements. Feature → Business Impact → Application: Clear installation manuals and compatibility with AM2/IS2 ecosystems shorten training time for maintenance staff. Application: Service teams deploying EF6040 in mixed automation environments.
Get a Quick Quote for a ABB EF6040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF6040?
Enquire Now
FAQs
The EF6040 is designed as a kit or pre-assembled solution compatible with AM2 cabinets. Start by aligning the sliding cable entry flanges to the cabinet frame, secure with the supplied fasteners, and connect the internal cable harness according to the 1STM604121R0006 manual. The kit option minimizes on-site assembly steps and reduces the risk of misalignment during installation, enabling quicker commissioning on automated lines.
Key specifications include a product net width of 70 mm, net height of 28 mm, and net depth of 430 mm, with a reference depth of 400 mm. The reference heights range from 1400 to 2200 mm and reference width options are 600 mm or 1200 mm. The unit weighs 1.610 kg, which facilitates handling during installation while staying compatible with standard mounting rails and cabinet footprints.
Yes. EF6040 carries RoHS information with a 20250108 RoHS date, REACH declaration with a 20250108 date, and a CE Declaration of Conformity for IS2. This combination supports regulatory compliance across European and international markets, reducing audit risk and enabling smoother cross-border deployment in automation projects.
EF6040 is suitable for AM2 Cabinets and IS2 Enclosures for Automation, specifically as a control and automation board accessory. Its design (Sliding flange, 4 Cable entry flanges) and pre-assembled mounting options make it ideal for machine builders and panel shops seeking reliable, scalable enclosure solutions with predictable installation times.
Using EF6040 can reduce installation time through a pre-assembled kit and simplified cable entry, lowering labor costs and commissioning delays. Durability from galvanized steel minimizes maintenance intervals, while RoHS/REACH/CE compliance minimizes regulatory risk. Overall, projects experience faster delivery, fewer field errors, and improved total cost of ownership in large-scale automation deployments.
