ABB EF6061 Other/Miscellaneous - IS2 Enclosures
Part Number: EF6061
Quick Summary
EF6061 is ABB’s control and automation board designed for IS2 enclosure systems in automation environments. This ensures simpler access for maintenance teams and reduces field wiring headaches, especially during enclosure upgrades. CE Declaration of Conformity, RoHS and REACH compliance are highlighted alongside IS2 catalogue references, ensuring regulatory alignment. The galvanized steel construction and a pre-assembled four-cable-entry flange kit simplify installation, while keeping procurement straightforward and consistent across sites. With 600x600 built-up cable entry flanges and a compact net width of 190 mm, EF6061 supports scalable, modular automation layouts for modern control cabinets and panel assemblies.
Product Information
Extended Description

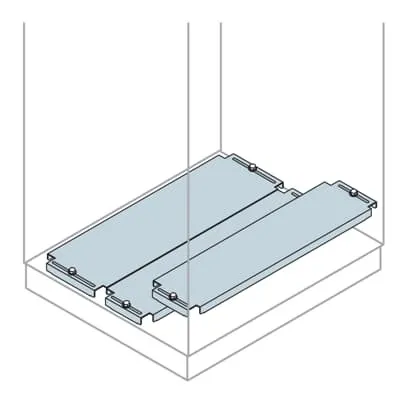

EF6061 ABB: Built-up Cable entry flanges 600x600mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
2. Built-up cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
190 mm
Product Net Height
13 mm
Product Net Depth / Length
420 mm
Product Net Weight
2.520 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.580 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
The built-up cable entry flanges 600x600 mm (HxD) are supplied as a kit, enabling clean, scalable cable routing directly into IS2 enclosures. This reduces field wiring complexity, shortens installation time, and lowers the risk of misconnection during initial startup. In practice, panel builders can deploy EF6061 across multiple lines with consistent fitment, improving project timing and reducing commissioning costs. The galvanized steel sheet construction delivers robust mechanical protection in demanding factory environments, extending service life and lowering total cost of ownership. The kit-based mounting option provides flexibility: choose between pre-assembled configurations or a DIY assembly path to match tight schedules and site constraints, smoothing handover and maintenance planning. Compliance with CE, RoHS and REACH guarantees regulatory alignment, while the IS2 Enclosures Technical Catalogue reference aids in design verification and procurement. The product’s compact footprint—190 mm net width with 420 mm net depth—facilitates modular layouts and scalable upgrades without redesigning surrounding frames or basements.
Get a Quick Quote for a ABB EF6061
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF6061?
Enquire Now
FAQs
EF6061 is designed as a ready-to-install control and automation board for IS2 enclosures. It ships with pre-assembled or kit-based mounting options, including 600x600 mm cable entry flanges, and matches IS2 enclosure footprints. This integration minimizes wiring complexity and accelerates panel assembly, reducing commissioning time and enabling easier future upgrades.
EF6061 uses galvanized steel sheet for mechanical protection and offers a net width of 190 mm, net height of 13 mm, and net depth of 420 mm. The reference depth is 600 mm and available enclosure heights include 1400–2200 mm. Weight is approximately 2.520 kg. These dimensions support compact, modular automation layouts without compromising rigidity.
Yes. EF6061 is explicitly positioned for IS2 enclosures used in automation. Its design features, including four cable entry flanges and blind mounting, provide a clean, reliable housing for control and automation boards, while ensuring compatibility with IS2 enclosure standards and typical automation rack configurations.
EF6061 is accompanied by CE Declaration of Conformity, RoHS information with a 20250108 RoHS date, and REACH declarations. These certifications help ensure regulatory compliance for global deployments, simplify supplier audits, and support customer assurance for regulated industries.
The pre-assembled kit approach and durable galvanized steel construction reduce installation time and maintenance intervals, lowering labor costs and downtime. The standardized enclosure fitment minimizes design changes across lines, enhancing repeatability and speeding up scale-out projects, delivering faster time-to-value and lower lifecycle costs.
