ABB EF6081 Enclosure Kit - IS2 Automation IP40
Part Number: EF6081
Quick Summary
EF6081 enclosure kit is a rugged control cabinet solution for IS2 automation enclosures in industrial environments. Engineers often face installation delays from misaligned cable entry points and ad hoc mounting, especially in tight footprints. This kit delivers built-up cable entry flanges and a pre-assembled mounting kit, backed by CE declarations, RoHS compliance (RoHS information dated 20250108), and a REACH declaration, with IP40 options for environmental protection. By marrying galvanized steel durability with IS2 compatibility, it supports scalable automation architectures, reduces maintenance costs, and speeds up commissioning for OEMs and integrators alike.
Product Information
Extended Description

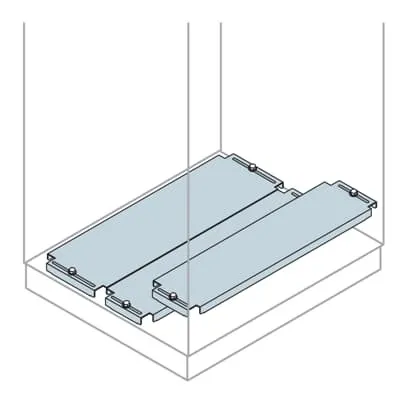

EF6081 ABB: Built-up Cable entry flanges 600x800mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
2. Built-up cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
195 mm
Product Net Height
600 mm
Product Net Depth / Length
800 mm
Product Net Weight
3.750 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.830 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Built-up cable entry flanges and a pre-assembled mounting kit deliver significant time savings during installation, reducing commissioning downtime and wiring errors in IS2 automation enclosures. The galvanized steel construction provides durable protection in harsh factory environments, extending cabinet life and lowering replacement costs while maintaining robust mechanical integrity. Designed for the IS2 Enclosures for Automation family, EF6081 ensures a seamless fit with 600x800 mm footprints, scalable height options, and compatible gland plate configurations, simplifying retrofits and new installations alike. The kit’s IP40-ready option supports controlled ingress while maintaining accessibility for maintenance and service. Compliance visibility is integrated through CE, RoHS, and REACH declarations, helping procurement meet regulatory and sustainability targets. Overall, EF6081 supports faster project delivery, predictable maintenance, and improved total cost of ownership in automated production lines.
Get a Quick Quote for a ABB EF6081
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF6081?
Enquire Now
FAQs
EF6081 is engineered as a kit for IS2 Automation enclosures and ships with a pre-assembled mounting kit and built-up cable entry flanges. It installs onto IS2 frames with standard mounting points, reducing field assembly time. The kit supports flexible configurations and is compatible with the IS2 enclosure family to streamline retrofits and new builds.
The product uses a 600x800 mm base footprint with a net width of 195 mm and a net height of 600 mm. The net depth is 800 mm, and the approximate product net weight is 3.750 kg. This size and weight combination supports compact automation cabinets while preserving mechanical strength.
Yes. EF6081 is designed for IS2 Enclosures for Automation and supports Control and Automation Board applications. The blind design and galvanized steel construction provide rugged performance for manufacturing lines, with pre-assembled mounting and cable entry options that facilitate quick integration into existing automation architectures.
EF6081 carries a CE Declaration of Conformity for IS2, RoHS compliance with RoHS date 20250108, and a REACH declaration with REACH date 20250108. WEEE categorization places it as Product Not in WEEE Scope. These certifications help ensure regulatory alignment for European operations and sustainability programs.
The kit reduces installation and commissioning time through a pre-assembled mounting kit and built-up cable entry flanges, improving wiring reliability and serviceability. Durable galvanized steel and IS2 compatibility minimize maintenance costs and retrofit risk, delivering faster project delivery, reduced spare-part inventories, and a clearer path to scalable automation across production lines.
