ABB EF8060 Control Board - Sliding Flange IP40
Part Number: EF8060
Quick Summary
The ABB EF8060 control board is your modular solution for centralized control and automation in IS2 enclosure setups. Installers often face messy cables, limited space, and long assembly times that slow projects. The EF8060 combines sliding cable entry flanges and a galvanized steel body with kit or pre-assembled mounting for fast, tidy installations. Supported by CE declaration, RoHS compliance, REACH information, and IS2 compatibility, it reduces regulatory risk and supplier complexity. Designed for scalable automation, its modular approach lowers total cost of ownership while accelerating time-to-value for production lines. With its robust 4.5 kg weight and 170 mm product net width, EF8060 is ready for mid- to large-scale automation projects.
Product Information
Extended Description

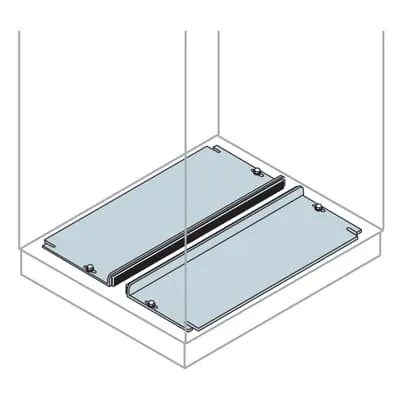

EF8060 ABB: Sliding Cable entry flanges 800x600mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
170 mm
Product Net Height
28 mm
Product Net Depth / Length
630 mm
Product Net Weight
4.50 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
4.500 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Sliding cable entry flanges are a core EF8060 attribute, delivering four alignable entry points with integrated gaskets. Business Impact: This design cuts field cabling time, reduces routing errors, and shortens commissioning windows, lowering labor costs. Application: Ideal for IS2 enclosures used in machine control panels and automation cabinets, where clean wiring and accessible cable paths support rapid maintenance and future expansion. Feature: Galvanized steel sheet construction provides robust strength and corrosion resistance in harsh industrial environments. Business Impact: Durable shells minimize dent damage and repaint cycles, lowering lifecycle costs and downtime. Application: Suited for factory floors, automation cells, and indoor cabinets exposed to dust or moisture. Feature: Mounting Type supports Kit or Pre-assembled configurations, enabling flexible deployment from retrofits to new builds. Business Impact: Pre-assembly standardizes interfaces, speeds installation, and reduces on-site errors across multiple panels. Application: Works with standard IS2 footprints for rapid scaling of automation control systems. Feature: Compliance and standards coverage includes CE Declaration of Conformity, RoHS, REACH, and ETIM/eClass classifications for interoperability. Business Impact: Regulatory alignment lowers risk and simplifies supplier qualification, improving cross-system integration. Application: Beneficial in regulated sectors such as energy, water, and process manufacturing. Feature: Dimensional and weight data, including 4.50 kg, 170 mm net width, 28 mm net height, and 630 mm net depth, support precise cabinet planning. Business Impact: Accurate form factors reduce enclosure over-sizing and shipping costs while ensuring compatibility with standard rack layouts. Application: Essential for modular IS2-based control architectures. Feature: Optional IP40-rated sliding cable entry flanges provide enhanced ingress protection when installed. Business Impact: Improves reliability in dusty environments, reducing maintenance frequency. Application: Valuable in manufacturing cells and assembly lines where enclosure protection is a priority.
Get a Quick Quote for a ABB EF8060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF8060?
Enquire Now
FAQs
The EF8060 is designed for IS2 Enclosures for Automation and supports Control and Automation Board configurations within ABB’s IS2 family. It can be supplied as a kit or pre-assembled mounting, aligning with standard IS2 footprints and gland plate interfaces to streamline panel builds and upgrades.
The EF8060 offers four sliding cable entry flanges with IP40-rated protection when installed. This arrangement reduces dust ingress and simplifies gasketed cable routing, helping maintain enclosure integrity while speeding up on-site wiring and future reconfigurations.
Yes. The EF8060 carries a CE Declaration of Conformity and RoHS compliance, with REACH information available. RoHS and REACH dates are documented (20250108), ensuring regulatory alignment and streamlined procurement for regulated industrial environments.
EF8060 is available as a kit or pre-assembled mounting. This flexibility supports both retrofit and new-build projects, reduces on-site assembly risk, and speeds deployment across multiple enclosures. The enclosure’s dimensions and mounting interfaces are designed for rapid integration with existing IS2 cabinets.
By delivering faster installation, cleaner cable management, and proven regulatory compliance, EF8060 lowers labor costs, reduces commissioning time, and minimizes downtime. Its durable galvanized steel construction and standardized interfaces also shorten replacement cycles and support scalable automation initiatives in mid- to large-scale facilities.
