ABB EF8061 Control and Automation Board - IP40 Flanges
Part Number: EF8061
Quick Summary
EF8061 is a control and automation board for IS2 automation enclosures. This solution streamlines panel builds by integrating built-up cable entry flanges with a pre-assembled mounting kit. It addresses common challenges such as limited space, wiring management, and installation time. The design aligns with CE, RoHS, and REACH compliance requirements, ensuring regulatory certainty. By leveraging galvanized steel construction and compatible gland-plate provisions, EF8061 delivers robust, long-term reliability for automation cabinets while supporting IS2 enclosures and standard ABB hardware ecosystems. This combination reduces commissioning time and supports scalable, cost-effective control panel deployments across manufacturing facilities.
Product Information
Extended Description

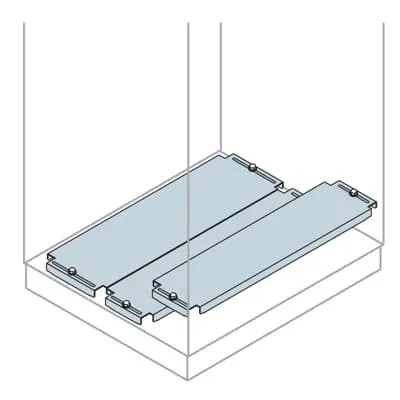

EF8061 ABB: Built-up Cable entry flanges 800x600mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
2. Built-up cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
189 mm
Product Net Height
18 mm
Product Net Depth / Length
590 mm
Product Net Weight
3.630 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.710 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
EF8061 is designed to deliver tangible business value across the control panel lifecycle. Feature: built-up cable entry flanges (800x600mm) integrated with a mounting kit. Business impact: faster enclosure outfitting and fewer field modifications, translating to lower installation labor costs and shorter project timelines. Application: automation panels in IS2 enclosures where cable routing and gland plates must meet industry standards. Feature: galvanized steel sheet construction. Business impact: improved corrosion resistance and longevity in demanding industrial environments, reducing maintenance frequency. Application: harsh production floors and outdoor installations where durability matters. Feature: pre-assembled kit with IP40 options. Business impact: simplifies on-site assembly, reduces risk of misalignment, and minimizes downtime during panel upgrades. Application: retrofit and expansion projects requiring reliable cabling interfaces. Feature: compliance data (CE, RoHS, REACH) documented in packaging. Business impact: demonstrates regulatory alignment, easing procurement audits and vendor qualification. Application: safety-conscious machine builders and systems integrators seeking verifiable conformity.
Get a Quick Quote for a ABB EF8061
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF8061?
Enquire Now
FAQs
EF8061 is designed for IS2 enclosures and ships as a pre assembled mounting kit with built up cable entry flanges. This setup enables straightforward integration into automation panels, minimizing field fabrication. Compatibility with standard gland plates and ABB mounting practices helps ensure secure enclosure integrity and faster commissioning in typical machine builder applications.
Key specifications include galvanized steel sheet construction, built up cable entry flanges sized 800x600 mm, IP40 option, and a compact net footprint of 189 mm width by 590 mm depth with a 3.630 kg weight. Reference heights and widths support IS2 enclosure configurations, with a reference depth of 600 mm and diverse height options up to 2200 mm for scalable installations.
Yes. EF8061 targets IS2 enclosure-based automation control panels, offering a dedicated product class for Control and Automation Board setups. It provides a reliable mounting kit and gland entry features that are well-suited for machine builders and systems integrators looking to standardize control panel assemblies while maintaining robust cabling management.
EF8061 carries a CE Declaration of Conformity for IS2 enclosures, RoHS information and date, and a REACH declaration with a statement on substances below 0.1 mass percentage. Additional standards and ETIM classifications are referenced, supporting compliance-driven procurement and audit readiness for high-availability automation applications.
By delivering a pre assembled kit with built up cable entry flanges, EF8061 reduces on site wiring tasks and assembly time, cutting labor costs and project timelines. Galvanized steel construction enhances durability, lowering maintenance expenses, while CE RoHS REACH compliance minimizes regulatory risk and accelerates supplier qualification during plant modernization.
