ABB EF8080 Control and Automation Board - CE Compliant
Part Number: EF8080
Quick Summary
ABB EF8080 is a control and automation board for IS2 automation enclosures. Engineers face delays during cable management, mounting alignment, and regulatory approvals when expanding panels. It carries CE conformity, RoHS compliance, and REACH declarations, supported by ETIM 8 classification and a clear WEEE status to streamline approval and traceability. With a kit-based, pre-assembled mounting approach and a sliding flange design, EF8080 speeds installation, reduces wiring errors, and lowers total cost of ownership for plant-wide automation projects. Designed for IS2 enclosures, the galvanized steel construction supports durable, long-life control panels in harsh industrial environments.
Product Information
Extended Description

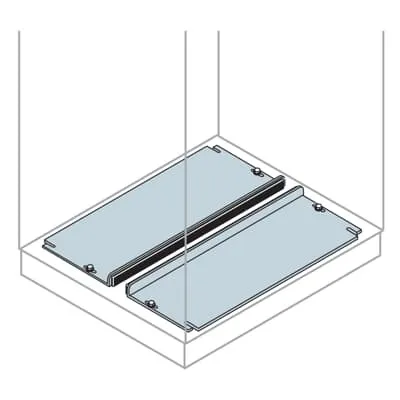

EF8080 ABB: Sliding Cable entry flanges 800x800mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Sliding flange
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
1. Sliding cable entry flanges IP40
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
275 mm
Product Net Height
21 mm
Product Net Depth / Length
625 mm
Product Net Weight
6.640 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
6.640 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Feature: Sliding flange design enables fast, secure cable entry and flexible layout. Benefit: Reduces field wiring time and error-prone rework, enabling quicker panel commissioning and lower labor costs. Application: Use in IS2 Enclosures for Automation where space and cable routing are critical. Feature: Galvanized steel sheet body offers rugged durability and corrosion resistance. Benefit: Extends service life in harsh environments, reducing replacement intervals and maintenance downtime. Application: Suitable for industrial environments with frequent cleaning and exposure to dust. Feature: Kit | Pre assembled mounting; Includes 4 cable entry flanges with IP40 option. Benefit: Simplifies on-site assembly and ensures consistent installation quality across multiple panels. Application: Ideal for modular automation panels requiring scalable expansion. Feature: RoHS, REACH, and CE declarations; ETIM 8 and eClass classification; WEEE status documented. Benefit: Accelerates regulatory approvals and supplier audits, reducing project risk. Application: Compliance-heavy deployments in process and factory automation. Feature: Product specific data: IS2 Enclosures for Automation suitability; galvanized steel; weight 6.640 kg; reference depths/heights up to 2200 mm. Benefit: Clear compatibility and handling guidance improves procurement accuracy and reduces misorders. Application: Systems integration projects needing precise part matching and dimensional planning.
Get a Quick Quote for a ABB EF8080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF8080?
Enquire Now
FAQs
When integrating EF8080, ensure you use the pre-assembled mounting kit and the sliding cable entry flanges with IP40 protection to simplify cable routing. Check compatibility with IS2 Enclosures for Automation, and verify package contents include the necessary flange kit to avoid on-site delays. The mounting type is kit | pre assembled, which supports fast, repeatable installations.
EF8080 is specified for IS2 Enclosures for Automation with a galvanized steel body and a 4-cable entry flange option. It supports standard IS2 enclosure dimensions, with product dimensions and weight documented for logistics. Its design emphasizes robust mounting, reliable cable management, and regulatory compliance (CE, RoHS, REACH) to ensure safe, durable operation in automated control panels.
Yes. The EF8080 is designed for IS2 enclosures used in industrial automation and control panel applications. Its sliding flange and galvanized steel construction make it suitable for manufacturing, process automation, and packaging environments where space optimization, regulatory compliance, and quick installation are priorities.
The EF8080 carries CE conformity, RoHS compliance, and REACH declarations. It is classified under ETIM 8 and supported by eClass identifiers, with WEEE status indicating its environmental handling. These certifications support regulatory approvals, supplier audits, and compliance-driven procurement processes for industrial automation projects.
Using EF8080 can shorten installation times due to its pre-assembled kit and sliding flange design, reducing labor costs and commissioning time. Its robust galvanized steel construction offers long-term durability, lowering maintenance cycles. Regulatory compliance features streamline approvals and audits, contributing to faster project delivery and lower total cost of ownership.
