ABB EF8082 Cable Entry Flanges - IP55 (IS2 Enclosures)
Part Number: EF8082
Quick Summary
EF8082 Cable Entry Flanges enable robust cable management for IS2 automation enclosures. For engineers upgrading control cabinets, sealing gaps and preventing misalignment during retrofits can be a major bottleneck. The solution carries CE conformity with RoHS and REACH declarations, and IP55 protection for fixed cable entry flanges, ensuring reliability in dusty or damp environments. Designed as a galvanized steel kit with pre-assembled mounting, it reduces installation time and supports scalable control-and-automation board configurations, aligning with ongoing automation projects and total cost of ownership goals.
Product Information
Extended Description

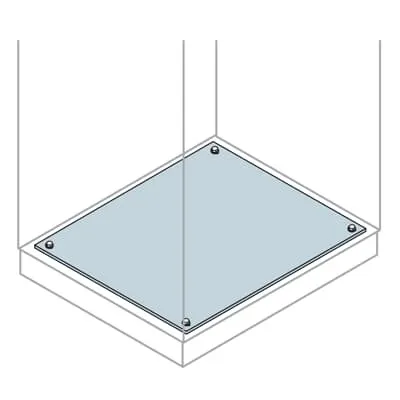

EF8082 ABB: Fixed Cable entry flanges 800x800mm (HxD)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Design
Blind
Accessory Type
4. Cable entry flanges
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Galvanized Steel sheet
Options Provided
3. Fixed cable entry flanges IP55
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
623 mm
Product Net Height
8 mm
Product Net Depth / Length
630 mm
Product Net Weight
6.860 kg
Reference Depth/Length
800 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
800 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
6.860 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000211 - Gland plate for enclosure/cabinet
ETIM 9
EC000211 - Gland plate for enclosure/cabinet
eClass
V11.1 : 27142421
Object Classification Code
U
Standards
See code for structure
Galvanized steel construction delivers durable, corrosion-resistant enclosure accessories that stand up to harsh industrial environments, reducing maintenance costs over the life of the cabinet. This feature translates into higher uptime for automated systems and predictable service intervals in IS2 enclosure applications. The kit | Pre assembled mounting option accelerates on-site assembly, minimizes field wiring complexity, and shortens commissioning time, delivering tangible labor savings and faster time-to-value for projects. Fixed cable entry flanges rated IP55 protect sensitive connections from dust and water ingress, improving long-term performance in manufacturing floors and outdoor installations. Dimensions and clearances are matched to IS2 enclosure profiles, enabling seamless compatibility with Reference Widths 800 mm and 1600 mm and a range of Heights from 1400 to 2200 mm, which supports modular automation layouts. RoHS and REACH compliance further reduce regulatory risk and simplify procurement across regions, while the ETIM classification confirms fit with gland-plate and enclosure standards. In practice, this means fewer redesigns, more predictable inventory needs, and improved total cost of ownership for automation boards in control cabinets.
Get a Quick Quote for a ABB EF8082
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EF8082?
Enquire Now
FAQs
EF8082 is designed as a fixed cable entry flange kit that aligns with IS2 automation enclosures. It ships as a pre-assembled mounting kit, providing ready-to-install flanges that match the enclosure footprint and mounting patterns. With IP55 protection, it seals cable entries effectively, reducing field modifications and ensuring a reliable enclosure interface during cabinet upgrades.
Key specs include galvanized steel construction, product net width of 623 mm, product net depth 630 mm, product net height 8 mm, and a net weight of 6.860 kg. The kit supports Reference Heights from 1400 to 2200 mm and Reference Widths of 800 or 1600 mm, with IP55 sealing and RoHS/REACH compliance for regulatory assurance.
Yes. EF8082 is designed for IS2 Enclosures for Automation with adjustable mounting so it fits various height options (1400–2200 mm) and widths (800–1600 mm). The kit supports pre-assembled mounting and can be integrated with Control and Automation Board configurations, enabling modular, scalable cabinet designs.
EF8082 carries CE conformity with RoHS and REACH declarations, and IP55 protection for the flange assembly. It is listed in the IS2 Enclosures Technical Catalogue 2024, with WEEE category noting enclosure-specific waste regulations. These certifications minimize regulatory risk in global manufacturing and refurbishment projects.
The pre-assembled mounting and IP55 sealing reduce installation time and field-wiring tasks, delivering labor savings and faster project commissioning. Durable galvanized steel minimizes corrosion-related maintenance, while regulatory compliance (CE, RoHS, REACH) lowers procurement risk and supports longer service intervals for automation cabinets in harsh environments.
