ABB EG0419 Other/Miscellaneous - IS2 Enclosures
Part Number: EG0419
Quick Summary
ABB EG0419 is a galvanized steel 19-inch mounting rack designed for Automation and Control Enclosures in System pro E control IS2 configurations. This kit addresses common pain points around modularity, cabling management, and future expansion by offering a pre-assembled mounting solution that fits standard 19-inch gear. The enclosure complies with CE conformity, RoHS, and REACH declarations, easing regulatory audits and environmental reporting. By combining a robust material with a compact footprint, it reduces installation time and total cost of ownership. When paired with IS2 enclosure families, the EG0419 delivers predictable rack behavior, easy serviceability, and scalable capacity, supporting predictable project timelines and lower maintenance costs for industrial facilities.
Product Information
Extended Description

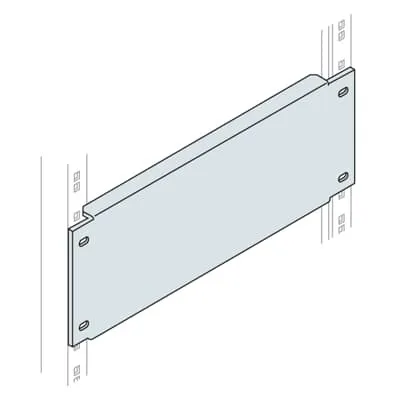

EG0419 ABB: Blind Galvan.Panel Rack Ral 7035 4 He
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
6. Blind and aerated panel in steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
176 mm
Product Net Height
15 mm
Product Net Depth / Length
482 mm
Product Net Weight
1.06 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.064 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
482.6 mm mounting set provides standard 19-inch rack alignment, reducing custom fabrication and enabling faster integration of automation modules and control gear in System pro E IS2 enclosures, which lowers labor and project risk. This standardization translates to predictable mounting geometry across equipment from ABB and third-party suppliers, improving cable routing and serviceability in busy control rooms. The result is reduced commissioning time and fewer field adjustments during handover. System pro E IS2 compatibility ensures seamless enclosure interoperability, minimizing mismatches between rack rails and internal components and cutting redesign costs during upgrades or expansions. For project teams, this means a smoother procurement path and fewer late-stage changes, supporting on-time delivery and consistent performance. The mounting set also helps maintain alignment for heat management, vital for reliable operation in high-density cabinets.
Get a Quick Quote for a ABB EG0419
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG0419?
Enquire Now
FAQs
Use the 19-inch mounting kit or opt for the pre-assembled mounting option to align with System pro E IS2 enclosures. Verify the reference depths (300–1000 mm) and heights (1400–2200 mm) to match your enclosure footprint, then mount 19-inch equipment with standard rails to maintain proper clearance for airflow and cabling.
Product Net Width is 176 mm, Net Depth 482 mm, Net Height 15 mm, with a Net Weight of 1.06 kg. The mounting set is 482.6 mm (19 inch). These specs ensure compatibility with common 19-inch gear and keep overall rack space predictable for panel layouts.
Yes. EG0419 is specifically designed for Automation and Control Enclosures within System pro E control IS2 configurations. It supports both kit and pre-assembled mounting options, delivering a consistent 19-inch rack structure and reliable integration with IS2 accessory families.
EG0419 includes CE Declaration of Conformity, RoHS information with a RoHS date of 20250108, REACH declaration and REACH date 20250108, WEEE category indicating Product Not in WEEE Scope, and ETIM/eClass classifications to aid procurement and compliance workflows.
The EG0419 provides modular, scalable mounting for 19-inch gear, reduces field labor through pre-assembled options, and enhances compliance with CE, RoHS, and REACH. Its galvanized steel construction improves durability and service life, while its IS2 compatibility supports faster project delivery and easier future expansions.
