ABB EG1019 19-inch Rack Structure - IS2 Enclosures CE
Part Number: EG1019
Quick Summary
ABB EG1019 19-inch rack structure provides a rugged mounting frame for automation control enclosures. For engineers wrestling with IS2 system compatibility and tight installation windows, this pre-assembled kit minimizes on-site wiring, misalignment, and field modification. It carries CE Declaration of Conformity and RoHS/REACH compliance, while ETIM and eClass classifications support precise cataloging and procurement. Built for System pro E control IS2 environments, the galvanized steel construction delivers durable enclosure mounting with reproducible tolerances. By standardizing mounting with reference depth options and modular widths, this solution reduces change orders and maintenance costs, aligning with lean project delivery in automation deployments.
Product Information
Extended Description

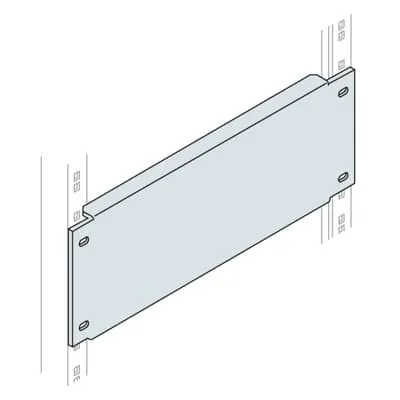

EG1019 ABB: Blind Galvan.Panel Rack Ral 7035 10 He
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
6. Blind and aerated panel in steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
443 mm
Product Net Height
15 mm
Product Net Depth / Length
482 mm
Product Net Weight
3.01 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.018 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature 1: 19-inch mounting standard with a 482.6 mm depth aligns to common Automation and Control Enclosures, enabling quick integration of equipment into IS2 enclosures. Business impact: reduces commissioning time and rework, supporting faster project turnover. Application: System pro E control IS2 cabinet assemblies in automated lines. Long-tail keywords: 19-inch rack structure, IS2 enclosure compatibility, automation enclosure mounting.Feature 2: Pre-assembled mounting kit minimizes on-site assembly and field components. Business impact: lowers labor costs and error rates during installation. Application: new build and retrofit projects in industrial facilities with tight schedules. Long-tail keywords: pre-assembled mounting kit, installation efficiency, field wiring reduction.Feature 3: Galvanized steel construction provides rugged durability and corrosion resistance in harsh environments. Business impact: extends service life and reduces maintenance cost. Application: factory automation and control enclosures subject to dust, humidity, and temperature variations. Long-tail keywords: galvanized steel enclosure hardware, durable mounting kit, industrial enclosure materials.Feature 4: Includes blind and aerated panel options for panel customization and EMI/aesthetic protection. Business impact: enables fast enclosure tailoring without extra parts, improving uptime. Application: IS2 enclosure configurations requiring blanking panels. Long-tail keywords: blind panel, aerated panel, enclosure customization.Feature 5: Flexible reference depth and height options (300–1000 mm depth; 1400–2200 mm height; 600/800 mm width) support multiple cabinet footprints. Business impact: reduces stock variety and simplifies procurement. Application: scalable automation setups and multi-line installations. Long-tail keywords: reference depth options, enclosure footprint flexibility, modular mounting.
Get a Quick Quote for a ABB EG1019
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG1019?
Enquire Now
FAQs
The EG1019 is designed as a 19-inch rack structure compatible with Automation and Control Enclosures using System pro E control IS2. It provides a standard 482.6 mm mounting depth and fits IS2 enclosure footprints, with pre-assembled mounting components to simplify integration and ensure alignment with IS2 catalog specifications.
EG1019 ships as a pre-assembled mounting kit that includes the 19-inch rack structure and mounting hardware, reducing on-site assembly steps and alignment adjustments. This translates to faster commissioning, lower labor costs, and fewer field modifications in complex automation cabinet builds.
Yes. The EG1019 carries RoHS information with a date of 20250108 and a REACH declaration confirming no substances above 0.1 mass percentage. It also includes a CE Declaration of Conformity, ensuring regulatory compliance for global installations and supplier verification.
Key net dimensions are a width of 443 mm, depth of 482 mm, and a height variant aligned to the enclosure system, with a net weight of 3.01 kg. Reference widths are 600 or 800 mm, and reference heights span 1400 to 2200 mm, supporting versatile rack configurations.
Documentation includes the IS2 instruction handbook 2024, Data Sheet and Technical Catalogue from IS2 Enclosures (2024), and the Declaration of Conformity for CE. These resources support proper installation, compliance checks, and procurement alignment with ETIM EC002625 mounting accessories.
