ABB EG1130K 19\" Rack Structure - CE Declaration of Conformity
Part Number: EG1130K
Quick Summary

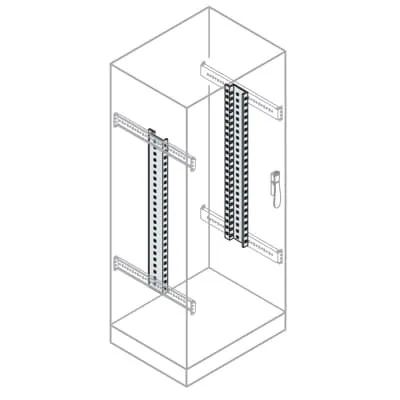

ABB EG1130K is a 19-inch rack structure designed to organize and support control panels within IS2 Enclosures for Automation. In practice, engineers frequently confront cramped layouts, incompatible mounting rails, and lengthy field assembly times that delay commissioning. This solution delivers CE conformity, RoHS compliance, and ETIM EC002625 classifications to simplify procurement and regulatory alignment. By offering a robust galvanized steel frame with pre-assembled mounting options, it helps cut installation complexity. The result is faster deployments, easier serviceability, and reduced lifecycle costs, while preserving space efficiency and modular upgrade paths for growing automation applications.
Product Information
Extended Description
EG1130K ABB: Part. Rack Frame fix 27HE
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
4. Partial cranked shaped uprights
Remarks
ETIM
RoHS Information
1STC860065
RoHS Date
20140108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
135 mm
Product Net Height
1300 mm
Product Net Depth / Length
1210 mm
Product Net Weight
2.8040 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.804 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: 19-inch rack structure purpose-built for IS2 Enclosures for Automation → Business Impact: standardizes mounting interfaces across automation cabinets, accelerating installs and reducing rework → Application: control panels in factory automation lines. Feature: Galvanized steel sheet construction → Business Impact: enhanced corrosion resistance and long-term durability in harsh industrial settings → Application: outdoor and indoor automation environments. Feature: 482.6 mm (19 inch) mounting set integrated → Business Impact: compatible rail system alignment minimizes custom fabrication → Application: quick-fit attachment of devices and modules. Feature: Pre-assembled mounting kit with options including 4 partial cranked uprights → Business Impact: faster turnkey installation and fewer field errors → Application: scalable frames for growing control systems. Feature: Reference depth/height options (300–1000 mm; 1400–2200 mm) → Business Impact: flexible cabinet sizing to fit diverse equipment footprints → Application: IS2 enclosure deployments across different line layouts. Feature: RoHS information and WEEE categorization → Business Impact: regulatory compliance and easier disposition at end-of-life → Application: compliant sourcing and sustainability programs. Feature: ETIM EC002625 mounting accessories classification → Business Impact: streamlined procurement and accurate cataloging → Application: engineering spec alignment and ERP integration.
Get a Quick Quote for a ABB EG1130K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG1130K?
Enquire Now
FAQs
Yes. The EG1130K is specifically designed as a 19-inch rack structure for IS2 Enclosures for Automation and uses a standard 482.6 mm (19 inch) mounting set. Its pre-assembled kit simplifies integration with IS2 cabinets and standard 19-inch equipment rails, reducing installation time and ensuring consistent mounting across assemblies.
Key metrics include Product Net Width 135 mm, Product Net Height 1300 mm, and Product Net Depth 1210 mm. The packed weight is 2.804 kg per unit. These dimensions translate to compact yet sturdy framing suitable for surface or wall-mounted automation cabinets in busy production environments.
The EG1130K is intended for IS2 Enclosures for Automation, supporting Control and Automation Board configurations in machine building, process control, and packaging lines. It is ideal where standardized 19-inch mounting, durable galvanization, and scalable frame heights (1400–2200 mm) are required to house multiple modules.
The EG1130K carries CE Declaration of Conformity and RoHS compliance information (RoHS 1STC860065) with WEEE categorization indicating non-applicability to WEEE scope. Its ETIM classification EC002625 covers mounting accessories for enclosures, supporting regulatory and procurement processes in regulated industries.
Pre-assembled mounting kit with 27HE rack frame and partial cranked uprights reduces field assembly time and labor costs. Flexible depth and height options minimize waste and spare parts, while standardized 19-inch rails improve maintenance efficiency and asset traceability, delivering faster project ROI and easier future upgrades in automation environments.
