ABB EG1219 Control and Automation Board - IS2 Enclosure Kit
Part Number: EG1219
Quick Summary
ABB EG1219 Control and Automation Board is a 19-inch rack enclosure for automation and control cabinets. It addresses space constraints and integration challenges by delivering a ready-to-install mounting kit with pre-assembled features. The enclosure aligns with CE, RoHS, and REACH requirements and is designed for IS2 rated System pro E control enclosures to support standardization across facilities. Built from galvanized steel, it delivers a robust, scalable footprint with 528 mm width and 482.6 mm mounting rails. This solution reduces field assembly time, minimizes modification costs, and supports easy upgrade paths while integrating with ABB System pro E control components to maximize uptime and regulatory compliance.
Product Information
Extended Description

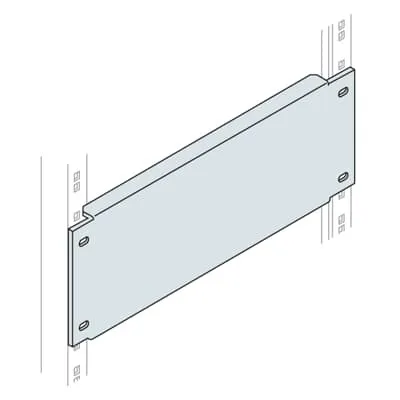

EG1219 ABB: Blind Galvan.Panel Rack Ral 7035 12 He
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
6. Blind and aerated panel in steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
528 mm
Product Net Height
15 mm
Product Net Depth / Length
482 mm
Product Net Weight
3.59 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.594 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: 482.6 mm mounting set provides standardized 19-inch rack depth. Business Impact: Simplifies procurement and eliminates the need for custom rack fabrication, accelerating project timelines. Application: Ideal for new automation cabinets and retrofits using standard 19-in equipment. Feature: Suitable For Automation and Control Enclosures (System pro E control) - IS2 ensures compatibility with ABB’s System pro E control ecosystem. Business Impact: Reduces integration risk and preserves a consistent design language across control architectures. Application: Effective in OEM builds and panel upgrades requiring IS2 compliant enclosures. Feature: Material is Galvanized Steel sheet, delivering durability and corrosion resistance. Business Impact: Lower maintenance costs and longer service intervals in harsh industrial environments. Application: Ideal for outdoor or damp factory floors where enclosure integrity matters. Feature: Options Provided include Blind and aerated panel in steel sheet for shielding and airflow management. Business Impact: Improves thermal performance and EMI containment while enabling controlled ventilation. Application: Critical in power and control panels with crowded wiring. Feature: Mounting Type Kit | Pre assembled accelerates deployment by removing on-site assembly steps. Business Impact: Faster time-to-value and reduced labor costs, improving total cost of ownership. Application: Suitable for multi-line projects and modular cabinet builds. Feature: Reference Depth/Length options (300, 400, 500, 600, 800, 1000 mm) and Reference Height options (1400, 1600, 1800, 2000, 2200 mm) provide scalable footprints. Business Impact: Enables design reuse across multiple projects and easy expansion. Application: Enables a common platform for varied control system configurations.
Get a Quick Quote for a ABB EG1219
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG1219?
Enquire Now
FAQs
Begin by confirming IS2 compatibility with System pro E control enclosures. Attach the 19-inch mounting rails to the cabinet frame using standard hardware, align with the 482.6 mm mounting set, and slide in the equipment rails. Verify panel clearance and cable routing before securing panels. The kit arrives pre-assembled to minimize field work and accelerate commissioning in automation cabinets.
Key specs include a 482.6 mm mounting set for 19-inch equipment, net width of 528 mm, net depth of 482 mm, and net height of 15 mm. The enclosure uses galvanized steel, weighs about 3.59 kg, and supports multiple reference depths (300–1000 mm) and heights (1400–2200 mm). It is RoHS and REACH compliant and suitable for IS2 System pro E control enclosures.
Yes. The EG1219 is specifically designed for Automation and Control Enclosures (System pro E control) IS2 and is compatible with the 13. 19" rack structure, pre-assembled mounting kit, and standard 19-inch equipment. This makes it ideal for OEM builds, panel upgrades, and standardized cabinet designs across multiple automation projects.
Absolutely. The model carries a CE Declaration of Conformity for IS2 enclosures, RoHS information with a RoHS date of 20250108, and a REACH declaration with a date of 20250108. Substances are reported below 0.1 mass percentage, ensuring regulatory alignment and easier compliance during audits.
The EG1219 delivers faster deployment thanks to its pre-assembled kit and 19-inch rack structure, reducing field labor and rework. Its galvanized steel construction improves durability, lowering maintenance costs, while modular depth and height options enable reuse across projects, delivering lower total cost of ownership and a faster time-to-value for automation initiatives.
