ABB EG1800 Control and Automation Board - IS2 Enclosures
Part Number: EG1800
Quick Summary
ABB EG1800 Control and Automation Board is a fixed rack frame solution for IS2 automation enclosures. Many teams struggle with non-standard frame sizes and mounting compatibility when scaling automation cabinets. This model carries CE conformity, RoHS and REACH declarations, plus ETIM and eClass classifications to streamline procurement. Its galvanized steel construction and 19-inch rack compatibility support faster installation, reduced lifecycle costs, and easier maintenance, while staying aligned with IS2 enclosure ecosystems and industry best practices.
Product Information
Extended Description

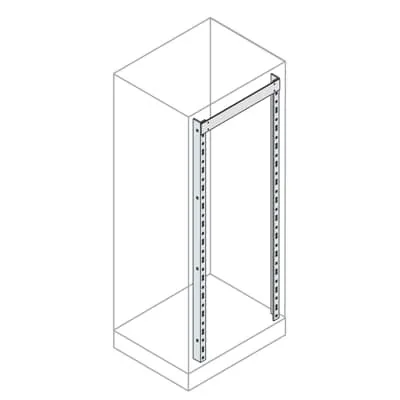

EG1800 ABB: Fixed rack frame1800x600mm fisso 38HE
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
1. "L" shaped uprights for fixed frame
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
30 mm
Product Net Height
1698 mm
Product Net Depth / Length
20 mm
Product Net Weight
3.310 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
3.380 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: 19 inch mounting set included. Business Impact: Standardizes rack integration across equipment, reducing installation time and error. Application: Used in control panels and automation cabinets to accelerate deployment in IS2 environments. Feature: Suitable for IS2 Enclosures for Automation. Business Impact: Ensures plug-and-play compatibility with IS2 enclosure families, minimizing custom fabrication. Application: Ideal for modular automation racks in manufacturing and process industries. Feature: Galvanized steel construction. Business Impact: Delivers durability and corrosion resistance in harsh industrial environments, reducing maintenance costs. Application: Long-term housing for control boards in outdoor or harsh factory floors. Feature: Options Provided – L-shaped uprights for fixed frame. Business Impact: Flexibility to configure fixed or adjustable frames, enabling quick rework or reconfiguration. Application: Quick-change installations for growing automation lines. Feature: Kit or Pre-assembled mounting type. Business Impact: Offers deployment versatility from DIY assembly to turnkey solutions, accelerating project timelines. Application: Suitable for projects with tight schedules or skilled labor constraints. Feature: Reference Depth/Length options (300–1000 mm). Business Impact: Enables precise enclosure fit and future expandability without redesign. Application: Design-consistent installations for multi-rack automation rows. Feature: RoHS, REACH, and CE declarations. Business Impact: Regulatory compliance is baked in, reducing risk during audits and supplier qualification. Application: Compliance-driven projects in aerospace, automotive, and process industries. Feature: Installation manual and data sheets. Business Impact: Clear guidance minimizes field errors and after-sales queries. Application: Procurement-to-installation workflow in technical teams.
Get a Quick Quote for a ABB EG1800
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG1800?
Enquire Now
FAQs
ABB EG1800 can be delivered as a kit or pre-assembled frame and includes a 19" mounting set. Use the L-shaped uprights for fixed frames and follow the Installation Instructions 1STM604121R0006 to align with IS2 enclosures. The IS2 compatibility ensures a straightforward rack integration process with standard 19" equipment.
Reference height is 1800 mm with a 600 mm width, and depth options range from 300 to 1000 mm. Product net dimensions are 30 mm (width), 1698 mm (height), 20 mm (depth); net weight is 3.310 kg, with a gross weight of 3.380 kg.
Yes. The model includes RoHS information with a RoHS date of 20250108 and a REACH declaration. REACH information notes no substances exceeding 0.1 mass percent, supporting regulatory compliance for global manufacturing.
It is designed for IS2 Enclosures for Automation and is compatible with 19 inch rack structures used in control panels and automation cabinets across manufacturing, process industries, and utilities sectors.
Datasheet is available via the IS2 Enclosures Technical Catalogue 2024, and installation guidance is provided in the document package 1STM604121R0006. The data sheet and manuals support turnkey deployment and regulatory compliance reviews.
