ABB EG1805 Rack Mount Frame - 482.6 mm (19 inch) mounting set
Part Number: EG1805
Quick Summary
ABB EG1805 is a rack mount frame designed for IS2 automation enclosures in server racks. Engineers often struggle with misfit components and lengthy installation when assembling modular cabinet systems. This model carries CE conformity, RoHS compliance, and ETIM/eClass classifications, supporting regulatory alignment and simple procurement. Its galvanized steel construction and flexible mounting options save time, increase rigidity, and reduce total cost of ownership for control and automation boards. Designed for IS2 Enclosures for Automation, it is suitable for 19-inch rack systems and scalable cabinet builds.
Product Information
Extended Description

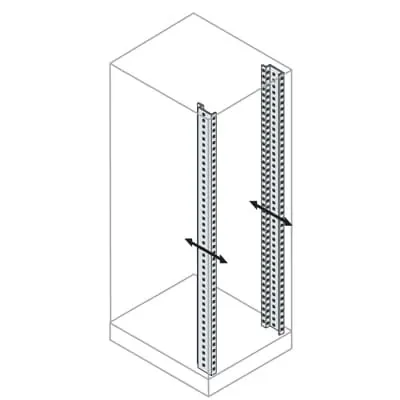

EG1805 ABB: Rack frame for server cabinet 1800x800 HXW
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
3. Cranked shaped uprights, Brackets, Crosspieces
Remarks
ETIM
RoHS Information
1STC860065
RoHS Date
20140108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
195 mm
Product Net Height
1800 mm
Product Net Depth / Length
50 mm
Product Net Weight
6.980 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
7.380 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: 482.6 mm (19 inch) mounting set provides standardized mounting rails for ABB EG1805. Business Impact: Standardization reduces integration time and minimizes misalignment with widely used 19-inch hardware. Application: Ideal for IS2 automation enclosures in control and automation board installations. Feature: Galvanized steel construction offers corrosion resistance and high rigidity. Business Impact: Improves durability in harsh industrial environments, reducing maintenance and downtime. Application: Suitable for server cabinets and automation racks that experience vibration and temperature cycling. Feature: Mounting Type offered as Kit or Pre-assembled. Business Impact: Flexible procurement and faster deployment, letting teams choose on-site assembly or ready-to-install framing. Application: Streamlines projects with variable schedule pressures or remote installation sites. Feature: Options Provided including Cranked uprights, Brackets, Crosspieces. Business Impact: Enhances modularity and adjustability to fit multiple widths and depths. Application: Works with Reference Depth/Length and Reference Width variants to tailor the rack to equipment footprints. Feature: Regulatory and technical documentation including RoHS, CE DoC, ETIM 8/9, and eClass mappings. Business Impact: Ensures compliance, simplifies supplier qualification, and reduces audit complexity. Application: Supports procurement in regulated manufacturing environments and multi-site deployments.
