ABB EG1880 19-inch Rack Frame - IS2 Compatible
Part Number: EG1880
Quick Summary
The ABB EG1880 is a 19-inch rack frame for automation cabinets. It addresses installation complexity by providing a pre-assembled kit with IS2 compatibility, helping engineers deploy frames quickly without sacrificing rigidity. This product carries CE conformity and RoHS compliance, and aligns with ETIM classifications to streamline procurement and part matching. For system integrators, the galvanized steel construction delivers long-term reliability in automation enclosures while supporting System pro E control applications; this combination reduces downtime and simplifies spares management, making it a practical choice for turnkey control cabinets and scalable automation projects.
Product Information
Extended Description

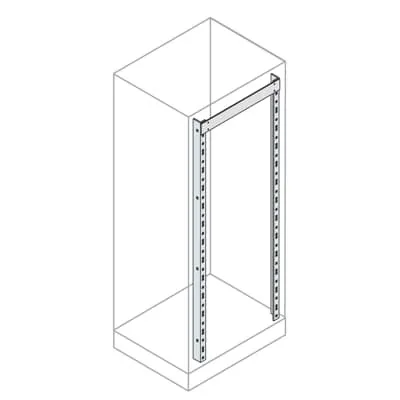

EG1880 ABB: 19" Rack Fixed Frames 38 HE1800x800mm
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
1. "L" shaped uprights for fixed frame
Remarks
ETIM
RoHS Information
1STC860065
RoHS Date
20140108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
40 mm
Product Net Height
1700 mm
Product Net Depth / Length
130 mm
Product Net Weight
9.31 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
9.5 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: 19 inch mounting set sized at 482.6 mm provides standard compatibility with a wide range of equipment. Business Impact: Enables quick integration of standard components, reducing engineering time and ensuring consistent mounting alignment. Application: Automation and control enclosures require reliable, repeatable rack height and depth for modular upgrades. Feature: Kit | Pre assembled mounting type speeds commissioning and minimizes field assembly errors. Business Impact: Shortens installation windows and lowers labor costs; helps maintain project schedules. Application: IS2 control cabinets and System pro E control environments benefit from ready-to-use frames. Feature: Galvanized steel sheet construction offers robust mechanical integrity. Business Impact: Delivers corrosion resistance and structural durability in industrial environments, reducing maintenance needs. Application: Critical for long-term enclosure performance in manufacturing and process lines. Feature: Reference Depth/Length options (300–1000 mm) and Reference Height/Width (1800x800 mm) with 1700 mm net height. Business Impact: Improves adaptability for assorted controller assemblies and device layouts, supporting scalable architectures. Application: Suitable for varied automation architectures and future expansions. Feature: L-shaped uprights included for fixed frame installation. Business Impact: Ensures secure, vibration-resistant mounting with minimal additional parts. Application: Ideal for IS2 enclosures and System pro E control setups. Feature: RoHS information and CE conformity with WEEE considerations. Business Impact: Facilitates regulatory compliance and sustainability reporting. Application: Essential for regulated markets and maintenance planning.
Get a Quick Quote for a ABB EG1880
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG1880?
Enquire Now
FAQs
ABB EG1880 uses a standard 19-inch mounting format and IS2-compatible kit, enabling seamless integration with System pro E control IS2 enclosures. The pre-assembled frame reduces on-site assembly time, while the galvanized steel construction maintains alignment under vibration and thermal cycling typical of automation cabinets. Always verify reference depth options (300–1000 mm) to match your enclosure depth and installed equipment.
Key specs for the EG1880 include a reference height of 1800 mm and width of 800 mm, with a product net height of 1700 mm and net width of 40 mm. The reference depths span 300, 400, 500, 600, 800, and 1000 mm. The 19-inch mounting set measures 482.6 mm, aligning with standard rack units for reliable, scalable enclosure installations.
Yes. The EG1880 is CE-declared for IS2 enclosures and carries RoHS compliance with documented RoHS information and date. It is designed for System pro E control IS2 environments, ensuring regulatory alignment and sustainability reporting. WEEE status indicates the product is not in the WEEE scope, simplifying end-of-life handling in compliant facilities.
The EG1880 carries CE conformity and RoHS compliance, with ETIM classifications EC002625 for mounting accessories and related hardware. It is referenced in IS2 Enclosures Technical Catalogue 2024 and aligns with ETIM 8/9 conventions for accurate product categorization. eClass is listed as V11.1 27182807, and the product is classified under appropriate enclosure and cabinet standards.
The EG1880 offers a maintenance-friendly steel frame with durable galvanized steel, reducing corrosion-related downtime. The pre-assembled kit minimizes installation labor and time-to-operation, improving project ROI. Its compatibility with System pro E control IS2 and standard 19-inch components simplifies future upgrades and spares management, translating to lower total cost of ownership over the system lifecycle.
