ABB EG1900K Rack Structure Kit - CE IS2 Enclosures
Part Number: EG1900K
Quick Summary

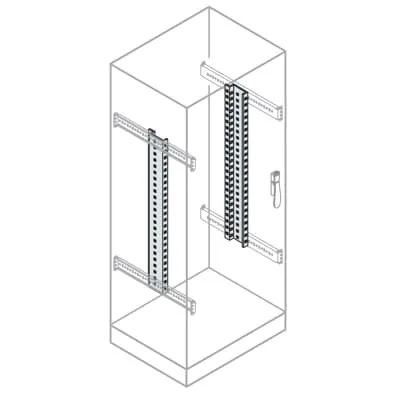

ABB EG1900K is a rack structure kit for mounting 19-inch control and automation boards in IS2 enclosures. Maintenance teams often struggle with compatibility and retrofit during enclosure upgrades, leading to project delays and costly field adjustments. This kit carries CE Declaration of Conformity IS2, RoHS compliance, and ETIM/eClass classifications, ensuring regulatory alignment and cross-vendor compatibility from day one. By delivering a pre-assembled, modular frame, it reduces installation time, supports safe heat dissipation, and enables scalable expansion. The galvanized steel construction and 18HE rack frame option offer robust, long-term value for automation panels in manufacturing and process environments, while adhering to standard 19-inch mounting practices and IS2 enclosure compatibility.
Product Information
Extended Description
EG1900K ABB: Part. Rack frame fix 18HE
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
4. Partial cranked shaped uprights
Remarks
ETIM
RoHS Information
1STC860065
RoHS Date
20140108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
135 mm
Product Net Height
900 mm
Product Net Depth / Length
810 mm
Product Net Weight
2.4430 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.443 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: 19-inch mounting set and IS2 suitability. Business Impact: Standardizes equipment layout, cuts installation time, and reduces risk of misalignment during cabinet upgrades. Application: Ideal for IS2 Enclosures for Automation in new builds or retrofits, supporting reliable control board mounting with industry-standard 19-inch rails. Long-tail keywords integrated: 19-inch rack structure, IS2 Enclosures for Automation, standard mounting rails. Feature: Galvanized steel construction. Business Impact: Enhances corrosion resistance on factory floors and in process environments, lowering maintenance costs over the lifecycle. Application: Suitable for harsh environments where mechanical integrity matters. Long-tail keywords: galvanized steel rack, corrosion-resistant mounting, industrial enclosure accessories. Feature: Modular depth and height options. Business Impact: Enables precise fit across 300–1000 mm depths and 1400–2200 mm heights, reducing custom fabrication. Application: Works with multiple reference sizes for scalable installations. Long-tail keywords: adjustable rack depth, modular enclosure height, customizable mounting kit. Feature: Partial cranked uprights and pre-assembled kit. Business Impact: Simplifies on-site assembly and transport, accelerating project timelines. Application: Fast deployment in automation panels with limited site labor. Long-tail keywords: pre-assembled rack kit, partial uprights, quick-install enclosure accessories. Feature: RoHS, CE, ETIM, and eClass compliance. Business Impact: Ensures regulatory compliance and interoperability across vendors, minimizing risk in audits. Application: Quality-assured for European and global manufacturing projects. Long-tail keywords: RoHS information, ETIM EC002625, eClass 27182807.
Get a Quick Quote for a ABB EG1900K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EG1900K?
Enquire Now
FAQs
The EG1900K is a pre-assembled 19-inch rack structure kit with a 482.6 mm mounting set designed to fit IS2 Enclosures for Automation. Installation typically involves mounting the rails within the enclosure, securing the uprights, and attaching the rack frame to the enclosure using the provided hardware. The kit’s modular depth options (300–1000 mm) and heights (1400–2200 mm) support a range of panel densities and cooling layouts, reducing field wiring conflicts and speeding commissioning.
Yes. The EG1900K is specified as suitable for IS2 Enclosures for Automation and supports 19-inch rack mounting standards. It provides the necessary 19-inch mounting structure and uprights to host control and automation boards, helping ensure alignment with IS2 enclosure dimensions and ETIM mounting accessory classifications.
The EG1900K carries a CE Declaration of Conformity IS2, RoHS compliance with the RoHS date of 20140108, and WEEE status indicating Product Not in WEEE Scope. ETIM 8/9 classification EC002625 for enclosure mounting accessories and eClass V11.1 (27182807) further support interoperability and regulatory alignment in global factories.
Key specifications include a product net width of 135 mm, height of 900 mm, and depth of 810 mm, with reference depths of 300–1000 mm and reference heights of 1400–2200 mm; width options are 600 or 800 mm. The product net weight is 2.443 kg, and the package level 1 gross weight is 2.443 kg, facilitating straightforward handling and transport.
The EG1900K delivers faster installation through a pre-assembled, modular 19-inch rack system, ensures regulatory compliance (CE, RoHS, ETIM/eClass), and supports scalable panel designs with adjustable depths and heights. This reduces project risk, minimizes field rework, lowers lifecycle costs, and improves reliability for control and automation boards in manufacturing and process environments.
